Product Number: 3025MF20-60

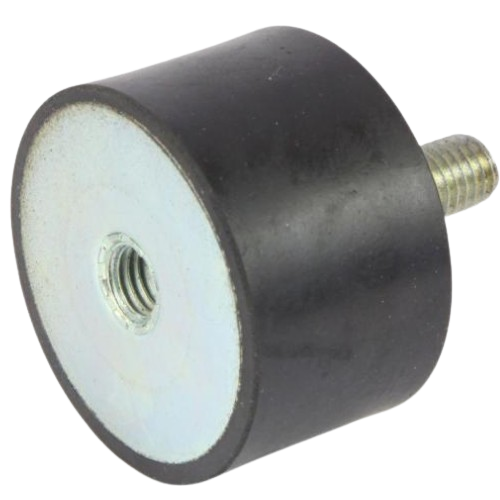

The 3025MF20-60 is a 30 x 25 mm male-female bobbin mount with M8 x 20 male stud and M8 female thread, rated to a maximum load of 30.0 kg with a controlled deflection of 2.1 mm at 60 Shore A hardness. At the medium point of the Shore scale, this mount delivers a balanced combination of vibration isolation and structural support, making it well suited to compact machinery installations and lighter-duty equipment where both movement control and damping performance are required in equal measure. Constructed with rubber-to-metal bonded technology, the 60 Shore A rubber element absorbs vibration in shear, compression, or a combined loading mode. The medium hardness grade means neither isolation performance nor load capacity is sacrificed, positioning this mount as the general-purpose choice across the male-female bobbin range. The mount improves machinery service life, protects surrounding structures from transmitted vibration, and contributes to improved operator comfort in service. With a 30 mm diameter and 25 mm height, the 3025MF20-60 is suited to mounting applications including instrumentation panels, small generator sets, air-conditioning units, and light industrial equipment across sectors such as agriculture, marine, automotive, and power generation. Its compact envelope and moderate load rating make it a practical fit for installations where space is limited and load demands sit within the lighter bracket of the range.
Male Female Bobbin Mounts referred to as Type B Bobbin or Type 2 Bobbins. They are a low-cost solution to reducing vibration & shock and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds.
Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight ranges from 1kg to 2000Kg per mount.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 25mm |
| Thread size (V) | M8 |
| Bolt Length (I) | 20mm |
| Max Load (Kg) | 30 |
| Deflection (mm) | 2.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3030FF08-60 | 2530MF20-70 | 3020FF08-60 | 4035MM25-45 | 2515FF06-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 30mm | 20mm | 35mm | 15mm | |
| Height | 30mm | ||||
| Size | 30x30mm | 25x30mm | 30x20mm | 40x35mm | 25x15mm |
| Deflection | 2.6 | 2.7 | 1.2 | 3.1 | 1 |
| Diameter | 25mm | 30mm | 40mm | 25mm | |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | |
| Length Range | 26-50mm | 11-25mm | 26-50mm | 11-25mm | |
| Shore Hardness | 70 | 60 | 45 | 60 | |
| Thread | M8 | M8 | M8 | M10 | M6 |
| Show More | |||||
A. The mount measures 30 mm diameter by 25 mm height (D x H), with an M8 x 20 mm male stud (d1 x L) and an M8 female thread (d2). Maximum load rating is 30.0 kg and deflection is 2.1 mm.
A. At 60 Shore A, this mount sits at the medium point of the hardness range, providing a balance between vibration isolation and load-bearing support. Softer grades offer greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. The 60 Shore A grade is the general-purpose choice for installations requiring both damping and structural stability.
A. This mount is suited to compact and lighter-duty installations including instrumentation panels, small generator sets, air-conditioning units, and light industrial equipment. It is used across agriculture, marine, automotive, power generation, and similar industries where controlled vibration damping is required within a modest load envelope.
A. The mount may be loaded in shear, compression, or a combination of both, giving installation flexibility across a range of mounting orientations and equipment configurations.
A. Yes. The same 30 x 25 mm M8 geometry is available in 45 Shore A (3025MF20-45) for greater deflection and enhanced isolation at lower loads, and in 70 Shore A (3025MF20-70) for higher load capacity with reduced movement.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for applications in demanding or specialist environments.
