Product Number: 3030FF08-60

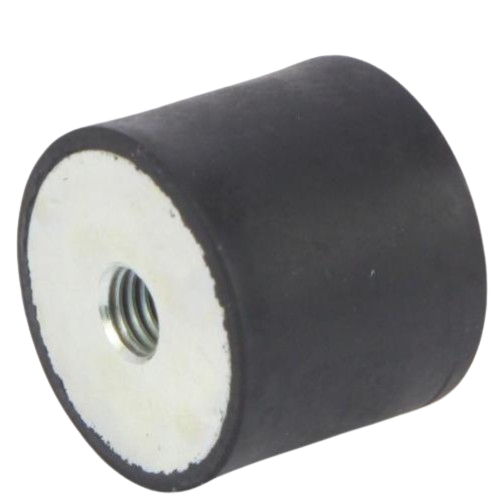

Balancing isolation performance with load-bearing capability, the Female-Female Bobbin Mount 3030FF08-60 is a 30 x 30 mm rubber-to-metal bonded anti-vibration mount with M8 female threads at both ends and a 60 Shore A rubber hardness grade, built to give a measured middle ground between deflection and support across a broad range of lighter compact machinery installations. At this medium hardness, the mount carries a maximum load of 30.0 kg with a deflection of 2.6 mm, making it well suited to applications where neither maximum isolation nor maximum stiffness is the priority, but a reliable, controlled response to vibration and shock across both shear and compression loading directions is required. Constructed using rubber-to-metal bonded technology, this mount may be loaded in shear, compression, or a combination of both, giving engineers and workshop professionals the flexibility to orient it to suit the installation. The 60 Shore A grade occupies the general-purpose band of the Shore A spectrum: softer grades offer greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. This medium grade is the practical choice for installations where vibration damping and structural support must coexist. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubbers. Are available on request. Typical applications for this size and grade include instrument mountings, air-conditioning units, exhaust mountings, diesel engines, generator sets, and general industrial machinery and equipment. Industries served include agriculture, power generation, marine, automotive, and construction and off-highway sectors.
Female Female Bobbins, also referred to as Type C Bobbins or Type 3 Bobbins are a low cost Anti Vibration Mount, suitable for reducing vibration & shock and a vast array of different applications. They should be used in either Shear or Compression or in a combination, however like all bobbins, not put into tension. Bobbins are available with many different thread Sizes, ranging from M3-M24 and in various lengths. Additional Bobbin Mounts sizes are available on request and can be produced in various grades of Stainless Steel and Oil & High Temperature resistant rubbers.
Applications include - Female / Female Bobbins are a general purpose mounting solution, popular in many different applications & industries including IC Engines, Generating Sets, electronics & various types of Industrial Equipment. Weight ranges from 1kg to 2000Kg per Bobbin.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

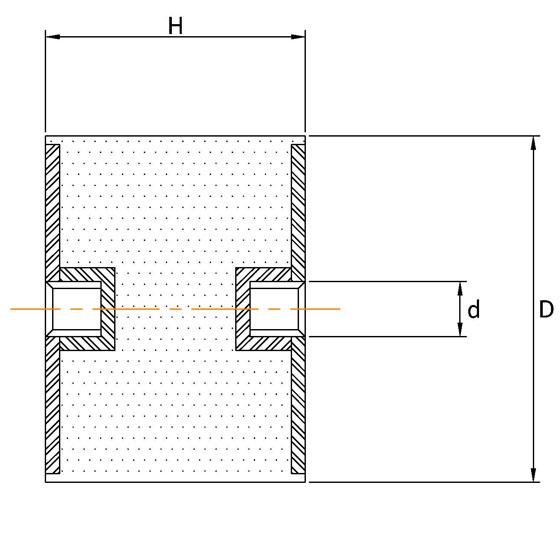

| Outer Dimension (D) | 30mm |
|---|---|
| Height (H) | 30mm |
| Thread Size (d) | M8 |
| Max Load (kg) | 30 |
| Deflection (mm) | 2.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2515FF06-60 | 2520MF18-60 | 2520MF20-60 | 2530MF20-70 | 3020FF08-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 15mm | 30mm | 20mm | ||
| Height | 20mm | 20mm | |||
| Size | 25x15mm | 25x20mm | 25x30mm | 30x20mm | |
| Deflection | 1 | 1.6 | 1.6 | 2.7 | 1.2 |
| Diameter | 25mm | 25mm | 30mm | ||
| Diameter Range | 11-25mm | 11-25mm | 26-50mm | ||
| Length Range | 11-25mm | 26-50mm | 11-25mm | ||
| Mount Dimension | 25mm | 25mm | |||
| Shore Hardness | 60 | 70 | 60 | ||
| Thread | M6 | M8 | M8 | M8 | M8 |
| Show More | |||||
A. This mount has a maximum load rating of 30.0 kg and a deflection of 2.6 mm.
A. The 60 Shore A grade sits in the medium range of the Shore A hardness spectrum. Softer grades give greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement. The 60 Shore A grade balances isolation and support, making it a general-purpose choice for a broad range of machinery mounting applications.
A. This mount may be loaded in shear, compression, or a combination of both, allowing flexible orientation to suit the installation.
A. Typical applications include instrument mountings, air-conditioning units, exhaust mountings, diesel engines, generator sets, and general industrial machinery and equipment across sectors such as agriculture, power generation, marine, automotive, and construction and off-highway.
A. Yes. The 30 x 30 mm M8 Female-Female Bobbin Mount is also available in 45 Shore A (3030FF08-45) and 70 Shore A (3030FF08-70). Larger Female-Female Bobbin Mounts in the family include 100100FF16, 10040FF16, 10045FF16, 10050FF16, 10055FF16, and 10060FF16.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
