Product Number: 2520MF20-60

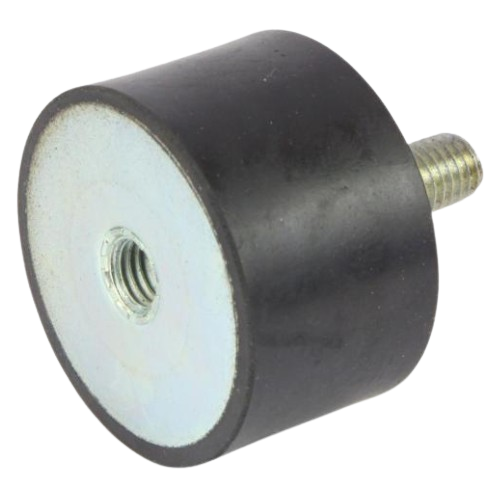

Compact and versatile, the 25x20mm male-female bobbin mount (SKU 2520MF20-60) is rated to a maximum load of 30.0 kg with a deflection of 1.6 mm, placing it firmly in the lighter end of the load band where balanced isolation and structural support matter equally. With male thread d1 M8 x 20 on the stud side and female thread d2 M8 on the tapped end, this 60 Shore A medium-hardness mount is suited to installations where neither excessive movement nor rigid restraint is acceptable, a practical middle-ground solution for compact or load-sensitive equipment. Rubber-to-metal bonded construction gives this mount its load-bearing integrity while the 60 Shore A rubber element provides measured deflection across shear, compression, or combined loading modes. At this hardness grade, the balance between vibration isolation and positional control is well matched to machinery that demands consistent damping without the compliance of softer grades. Custom configurations, including oil-resistant or high-temperature rubbers and stainless steel metalwork. Are available on request for demanding service environments. Typical applications within the lighter and more sensitive installation categories include instrument panels, small generator sets, air-conditioning units, and compact industrial equipment where controlled vibration attenuation improves both machinery lifespan and operator comfort. The mount also performs well in exhaust mounting and diesel engine applications across automotive, agricultural, and power generation sectors. Industries served include construction and off-highway, marine, railway and mass transit, and military and defence.
Male Female Bobbin Mounts referred to as Type B Bobbin or Type 2 Bobbins. They are a low-cost solution to reducing vibration & shock and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds.
Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight ranges from 1kg to 2000Kg per mount.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

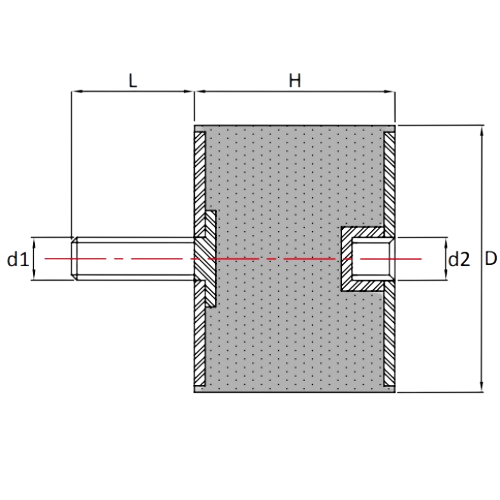

| Mount Dimension (D) | 25mm |
|---|---|
| Height (H) | 20mm |
| Thread size (V) | M8 |
| Bolt Length (I) | 20mm |
| Max Load (Kg) | 30 |
| Deflection (mm) | 1.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

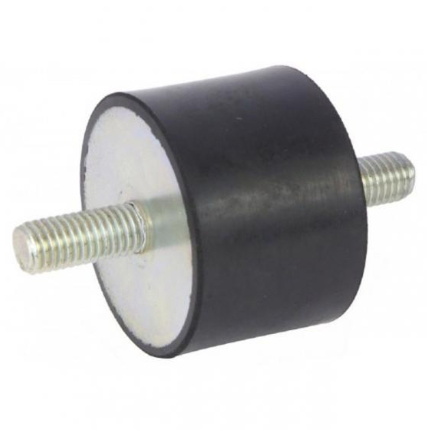

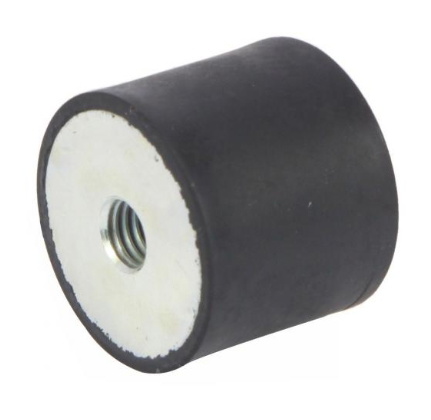

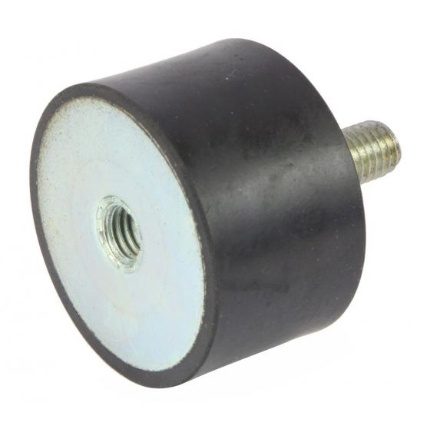

| PRODUCT NUMBER | 2515FF06-60 | 2530MF20-70 | 3020FF08-60 | 3030FF08-60 | 4035MM25-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 15mm | 30mm | 20mm | 35mm | |
| Height | 30mm | ||||
| Size | 25x15mm | 25x30mm | 30x20mm | 30x30mm | 40x35mm |
| Deflection | 1 | 2.7 | 1.2 | 2.6 | 3.1 |
| Diameter | 25mm | 25mm | 30mm | 40mm | |
| Diameter Range | 11-25mm | 11-25mm | 26-50mm | 26-50mm | |
| Length Range | 11-25mm | 26-50mm | 11-25mm | 26-50mm | |
| Shore Hardness | 60 | 70 | 60 | 45 | |
| Thread | M6 | M8 | M8 | M8 | M10 |
| Show More | |||||
A. This mount has a maximum load rating of 30.0 kg and a deflection of 1.6 mm, making it suited to lighter, compact or load-sensitive installations.
A. The stud (male) side is M8 with a length of 20 mm (d1 x L: M8 x 20), and the tapped (female) end is M8 (d2: M8).
A. At 60 Shore A, this is a medium-hardness grade that balances vibration isolation with positional support. It provides measured deflection without the greater compliance of softer grades, suited to equipment where controlled damping and stability are both required.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility across different installation orientations.
A. Typical applications include air-conditioning units, exhaust mountings, diesel engines, small generator sets, instruments, and compact industrial machinery. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. The same 25x20mm M8 geometry is available in 45 Shore A for softer isolation at lower loads (SKU 2520MF20-45) and 70 Shore A for firmer support under higher loads (SKU 2520MF20-70).
