Product Number: 4040FF08-60

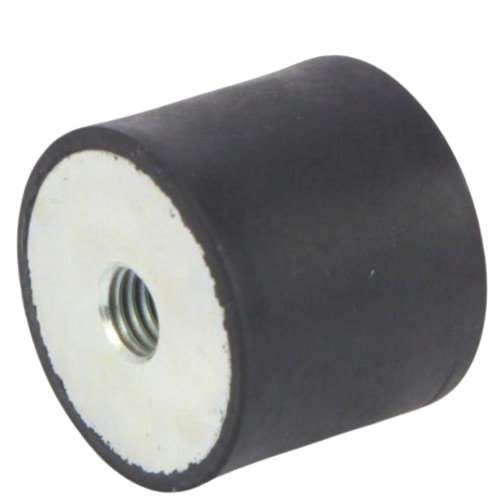

Balancing vibration isolation with structural support, the 4040FF08-60 is a 40x40mm female-female bobbin mount threaded M8, rated to a maximum load of 57.0kg with a deflection of 3.6mm at 60 Shore A hardness. This medium-grade rubber-to-metal bonded mount sits at the lighter end of the 40mm bobbin range, making it a considered choice for compact installations and equipment where load demands are moderate and a measured degree of movement is desirable alongside reliable support. Constructed with rubber-to-metal bonded technology, the 60 Shore A compound delivers a working balance between compliance and rigidity. At this hardness, the mount accepts vibration inputs in shear, compression or a combination of both, distributing dynamic forces without the pronounced deflection associated with softer grades or the stiffness that limits isolation in harder variants. This makes it well suited to machinery where both isolation performance and positional stability are required simultaneously. Typical applications include air-conditioning units, instrumentation, industrial machinery and equipment, and generator sets where vibration management improves operator comfort, protects surrounding structures and contributes to extended machinery service life. The mount is designed to perform across a broad range of industries including power generation, automotive, agriculture and marine. Custom sizes and configurations in oil-resistant or high-temperature rubbers, as well as stainless steel metalwork, are available on request.
Female Female Bobbins, also referred to as Type C Bobbins or Type 3 Bobbins are a low cost Anti Vibration Mount, suitable for reducing vibration & shock and a vast array of different applications. They should be used in either Shear or Compression or in a combination, however like all bobbins, not put into tension. Bobbins are available with many different thread Sizes, ranging from M3-M24 and in various lengths. Additional Bobbin Mounts sizes are available on request and can be produced in various grades of Stainless Steel and Oil & High Temperature resistant rubbers.
Applications include - Female / Female Bobbins are a general purpose mounting solution, popular in many different applications & industries including IC Engines, Generating Sets, electronics & various types of Industrial Equipment. Weight ranges from 1kg to 2000Kg per Bobbin.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

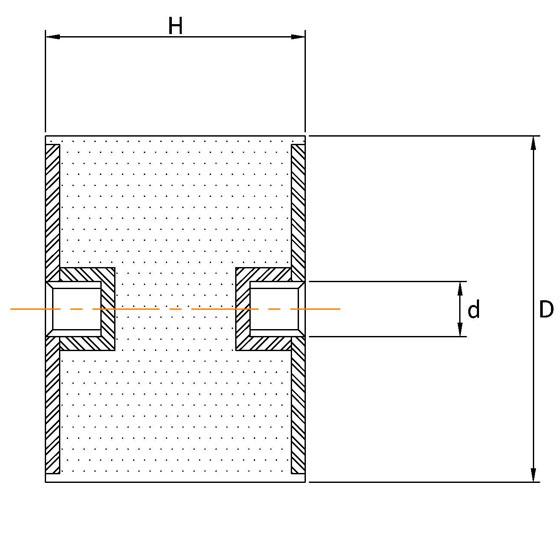

| Outer Dimension (D) | 40mm |
|---|---|
| Height (H) | 40mm |
| Thread Size (d) | M8 |
| Max Load (kg) | 57 |
| Deflection (mm) | 3.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M10, Max Load 57Kg - 4035MF25-60
£12.16
£11.92
2% OFF
|
Anti-Vibration Mount - Male - Male Bobbin Range, M8, Max Load 56Kg - 4035MM23-60
£12.16
£11.92
2% OFF
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3015MM20-70 | 4035MF23-60 | 4035MF25-60 | 4040FF10-60 | 4035MM23-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 15mm | 35mm | 40mm | ||
| Height | 35mm | 35mm | |||
| Size | 30x15mm | 40x35mm | 40x35mm | 40x40mm | 40x35mm |
| Deflection | 1.1 | 3.1 | 3.1 | 3.6 | 3.1 |
| Diameter | 30mm | 40mm | 40mm | ||
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | ||
| Length Range | 11-25mm | 26-50mm | 26-50mm | ||
| Mount Dimension | 40mm | 40mm | |||
| Shore Hardness | 70 | 60 | 60 | ||
| Thread | M8 | M8 | M10 | M10 | M8 |
| Show More | |||||
A. The 4040FF08-60 has a maximum load rating of 57.0kg and a deflection of 3.6mm, with a rubber hardness of 60 Shore A.
A. This mount features an M8 female thread on both ends, with overall dimensions of 40mm diameter by 40mm height.
A. Softer grades such as the 45 Shore A (4040FF08-45) provide greater deflection and better isolation at lower loads. The 60 Shore A (this mount) offers a balance of isolation and support suited to moderate loads. The 70 Shore A grade (4040FF08-70) carries higher loads with less movement, for more demanding or high-shock applications.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is orientated within an installation.
A. This mount is suited to air-conditioning units, instrumentation, industrial machinery and equipment, and generator sets. It is used across industries including power generation, automotive, agriculture and marine where vibration control, operator comfort and protection of surrounding structures are required.
A. Yes — custom sizes, oil-resistant rubbers, high-temperature rubber compounds and stainless steel metalwork are available on request.
A. We accept all major credit and debit cards, along with PayPal.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
