Product Number: HARFSV000

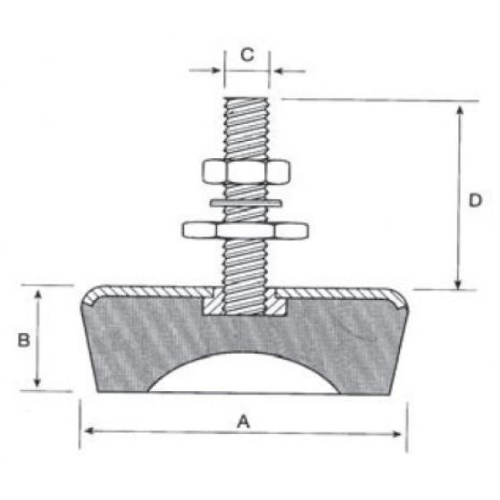

Compact and well-suited to lighter-duty installations, this 45 mm levelling foot (HARFSV000) with M8 thread sits at the lower end of the range, supporting loads from 20 kg to 80 kg across a 45 mm base diameter. Its rubber-to-metal bonded construction provides both levelling adjustment and a degree of vibration and noise reduction, helping to protect surrounding structures and improve operator comfort in sensitive or space-constrained environments. The rubber element in this mount is suited to applications where lower loads are paired with a need for vibration isolation rather than heavy shock restraint. Mounts in this family may be loaded in shear, compression, or a combination of both, making HARFSV000 a practical choice where installation geometry varies. Oil-resistant and high-temperature rubber compounds, along with stainless steel metalwork, are available on request for more demanding environments. With key dimensions of A: 45 mm, B: 23 mm, C: M8 thread, and D: 48 mm, this levelling foot is a straightforward fit for lighter industrial machinery such as food processing equipment, pharmaceutical machinery, conveyors, and laboratory or precision equipment where stability and low-level vibration control are priorities. The range also extends to construction and off-highway, agricultural, marine, and power generation applications. This foot is part of a wider family of anti-vibration levelling feet available in alternative sizes, thread specifications, and load ratings. Related variants include AVLF100, AVLF120, AVLF50, AVLF80, HARFSV0, HARFSV00, HARFSV1, and HARFSV2, allowing selection across a broad spread of load and dimensional requirements.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Width (A) | 40mm |
|---|---|
| Rubber Body Height (B) | 23mm |
| Thread Size (C) | M8 |
| Overall Height (D) | 48mm |
| Minimum Load (Kg) | 20 |
| Maximum Load (Kg) | 80 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV000 is rated for a minimum load of 20 kg and a maximum load of 80 kg, making it suitable for lighter machinery and sensitive installations requiring stable levelling support.
A. The HARFSV000 has the following dimensions: A (base diameter) 45 mm, B 23 mm, C thread M8, and D 48 mm.
A. It is suited to lighter industrial machinery including food processing equipment, pharmaceutical machinery, conveyors, and similar installations where levelling adjustment and vibration and noise reduction are required. The broader product family also serves agricultural, marine, power generation, and construction and off-highway applications.
A. The foot uses rubber-to-metal bonded construction. The rubber element absorbs and attenuates vibration transmitted between the machine and the floor, reducing noise transfer and helping to protect surrounding structures while improving operator comfort.
A. Oil-resistant and high-temperature rubber compounds, as well as stainless steel metalwork, are available on request for installations involving exposure to oils, elevated temperatures, or corrosive conditions.
A. Yes. Related variants covering different sizes, thread specifications, and load ratings include AVLF100, AVLF120, AVLF50, AVLF80, HARFSV0, HARFSV00, HARFSV1, and HARFSV2. Custom sizes are also available on request.
