Product Number: HARFSV5
Designed for mainstream general-machinery mounting at moderate-to-substantial loads, the HARFSV5 levelling foot delivers a rated capacity of 1,100 kg to 1,750 kg through a rubber-to-metal bonded construction that simultaneously levels equipment and attenuates vibration and noise at the installation point. With an overall diameter of 160 mm, a height dimension (B) of 60 mm, an M16 threaded stem, and a base dimension (D) of 116 mm, this upper-range foot in the levelling-foot family is proportioned for demanding workshop and industrial environments where high structural loads must be managed without compromising the integrity of surrounding structures or operator comfort. The rubber-to-metal bonded construction allows loading in compression, shear, or a combination of both, providing genuine flexibility across varying machine configurations. The rubber element reduces transmitted vibration, protecting supporting floors and adjacent plant while extending machinery service life. Where the standard specification does not suit the environment, oil-resistant and high-temperature rubber compounds together with stainless steel hardware are available on request. The HARFSV5 is well suited to conveyors, presses, generator sets and heavy industrial equipment where support loads fall within the 1,100 kg to 1,750 kg operating range. Pharmaceutical and food-processing plant operators will also find the foot appropriate where precise levelling combined with effective isolation is required at high machine weights. Industries served include power generation, marine, railway and mass transit, automotive, and military and defence applications. This levelling foot is part of a wider range.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

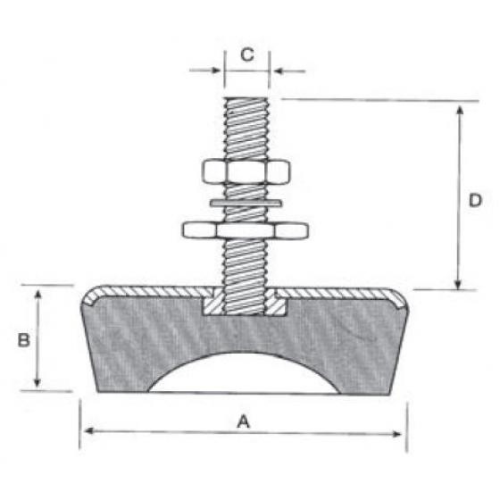

| Base Width (A) | 160mm |
|---|---|
| Rubber Body Height (B) | 60mm |
| Thread Size (C) | M16 |
| Overall Height (D) | 116mm |
| Minimum Load (Kg) | 1100 |
| Maximum Load (Kg) | 1750 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV5 has an overall diameter (A) of 160 mm, a height (B) of 60 mm, an M16 threaded stem (C), and a base dimension (D) of 116 mm.
A. The HARFSV5 levelling foot is rated for a minimum load of 1,100 kg and a maximum load of 1,750 kg, making it suitable for heavy industrial machinery and equipment.
A. The HARFSV5 is suited to conveyors, presses, generator sets, heavy industrial equipment, machine tools, lathes, and pharmaceutical or food-processing plant where loads fall within the 1,100 kg to 1,750 kg range.
A. The rubber-to-metal bonded design allows the foot to be loaded in compression, shear, or a combination of both. This reduces transmitted vibration and noise, protects surrounding structures and floors, and helps extend the service life of the machinery.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request. Additional and custom sizes can also be supplied on request.
A. Yes — a range of levelling feet is available including AVLF50, AVLF80, AVLF100, AVLF120, HARFSV0, HARFSV00, HARFSV000, and HARFSV1, covering a variety of load capacities and dimensions.
