Product Number: HARFSV2
Compact yet capable, this 100 mm levelling foot (HARFSV2) is engineered for mid-range load applications requiring precise machine levelling alongside effective vibration and noise attenuation. With a minimum load rating of 270 kg and a maximum of 600 kg, it occupies a measured position in the range, suited to lighter, less demanding installations where controlled deflection and reliable isolation matter most. The M14 thread and 109 mm overall height (dimension D) make it straightforward to integrate into existing machine bases with minimal modification. Built on a rubber-to-metal bonded construction, this levelling foot provides simultaneous resistance to vibration transmission and structural noise. The rubber element can be loaded in compression, shear, or a combination of both, offering flexibility across a variety of mounting configurations. Custom options, including oil-resistant and high-temperature rubber compounds as well as stainless steel metalwork. Are available on request, extending suitability for more demanding process environments. This foot is well suited to sensitive or compact installations including food processing and pharmaceutical equipment, where vibration control and hygienic considerations place demands on mounting hardware, as well as conveyors and generator sets operating within the rated load band. It contributes to improved machinery lifespan, protects surrounding structures from transmitted vibration, and supports operator comfort over extended working periods. Industries served by this product family include power generation, marine, agriculture, and automotive applications. This levelling foot is one of several sizes available.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

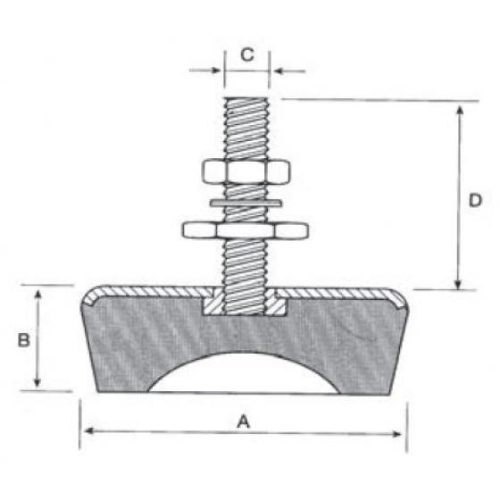

| Base Width (A) | 100mm |
|---|---|
| Rubber Body Height (B) | 40mm |
| Thread Size (C) | M14 |
| Overall Height (D) | 109mm |
| Minimum Load (Kg) | 270 |
| Maximum Load (Kg) | 600 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV2 levelling foot has a minimum load rating of 270 kg and a maximum load rating of 600 kg, making it suited to mid-range load applications within this product family.
A. The base diameter (A) is 100 mm, the rubber element height (B) is 40 mm, the thread size (C) is M14, and the overall height (D) is 109 mm.
A. This levelling foot is designed for machinery requiring levelling combined with vibration and noise reduction. Suitable applications include food processing equipment, pharmaceutical equipment, conveyors, and generator sets, as well as machine tools and lathes within the rated load band.
A. The rubber element can be loaded in compression, shear, or a combination of both, providing flexibility across different mounting configurations and installation requirements.
A. Yes. Oil-resistant and high-temperature rubber compounds, stainless steel metalwork, and additional custom sizes are available on request, extending suitability for specialist process environments.
A. Yes. Related variants including AVLF50, AVLF80, AVLF100, AVLF120, HARFSV0, HARFSV00, HARFSV000, and HARFSV1 are available, covering a range of load capacities, thread sizes, and dimensions to suit different machinery.
