Product Number: HARFSV00
Compact and suited to lighter installations, this 60 mm levelling foot (HARFSV00) provides a practical means of levelling machinery while reducing transmitted vibration and noise at the lower end of the load range. With a minimum load rating of 60 kg and a maximum of 120 kg, it is engineered for applications where space is limited and forces are modest rather than heavy-industrial in scale. Rubber-to-metal bonded construction forms the heart of this mount, delivering reliable vibration and noise attenuation without the complexity of active isolation systems. The M10 thread and 28 mm body height (dimension B) integrate straightforwardly into machine bases, while the 81 mm overall height (dimension D) provides a useful degree of levelling adjustment beneath equipment feet. Oil-resistant and high-temperature rubber compounds, as well as stainless steel hardware, are available on request for installations in demanding environments. The foot is well suited to sensitive or compact equipment requiring stable, level footing with a degree of vibration isolation, applications such as food processing machinery, pharmaceutical equipment, and light conveying systems where floor protection, operator comfort, and machinery lifespan are all practical considerations. Mounts of this type may be loaded in compression, shear, or a combination of both, making them adaptable across a range of mounting configurations within the stated load band. This product is part of a wider family of levelling feet and anti-vibration mounts.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

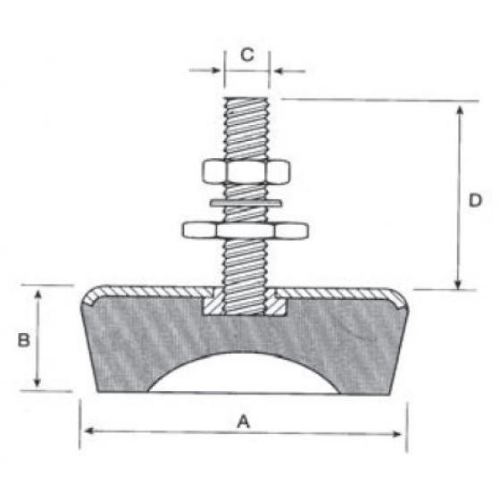

| Base Width (A) | 60mm |
|---|---|
| Rubber Body Height (B) | 28mm |
| Thread Size (C) | M10 |
| Overall Height (D) | 81mm |
| Minimum Load (Kg) | 60 |
| Maximum Load (Kg) | 120 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV00 is rated for a minimum load of 60 kg and a maximum load of 120 kg, placing it in the lighter end of this levelling foot range.
A. The base diameter (A) is 60 mm, body height (B) is 28 mm, thread size (C) is M10, and overall height (D) is 81 mm.
A. It is suited to lighter and compact installations including food processing machinery, pharmaceutical equipment, and light conveyors — applications where stable levelling and a degree of vibration and noise reduction are required within the 60–120 kg load band.
A. Yes — mounts of this type may be loaded in compression, shear, or a combination of both, giving flexibility across different mounting configurations within the stated load range.
A. Oil-resistant and high-temperature rubber compounds, as well as stainless steel hardware, are available on request for installations where standard materials are not suitable.
A. Yes — related levelling feet and anti-vibration mounts are listed as AVLF50, AVLF80, AVLF100, AVLF120, HARFSV0, HARFSV000, HARFSV1, and HARFSV2. See the individual product pages for specifications.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
