Product Number: KA090
Variations

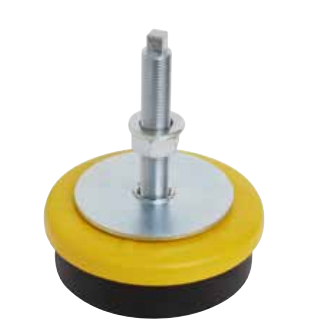

Rated to a maximum load of 400 kg, the KA090 is the largest-capacity standard levelling foot in this range and is sized to anchor heavy plant where both precise levelling and continuous load-bearing matter most. With a 90 mm base diameter, 35 mm height, and M12 thread, it delivers a stable footprint suited to demanding industrial environments. The rubber-to-metal bonded construction combines a rigid metal body with a rubber pad that absorbs vibration and reduces structure-borne noise, helping to protect surrounding structures and improve operator comfort over extended production runs. The anti-vibration rubber element resists the constant mechanical stress associated with sustained high loads, and the adjustable thread allows the levelling height to be fine-tuned without tools or shimming. Oil-resistant and high-temperature rubber compounds, as well as stainless steel hardware, are available on request for aggressive process environments. Typical applications for this 400 kg-rated foot include machine tools, lathes, presses, conveyors, generator sets, and heavy industrial equipment across sectors such as food processing, pharmaceuticals, power generation, marine, and automotive manufacturing. Its capacity and base area make it equally suitable for off-highway, agricultural, and railway plant where floor loadings are concentrated and vibration management is a production requirement. This foot is part of a range of adjustable levelling feet available in multiple sizes and load ratings: KA01, KA02, KA03, KA05, KA16, MFL-1, MFL-2, and MFL-3. Select the variant that matches your thread size, base diameter, and required load capacity. KA090 is supplied as a single levelling foot.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer diameter D (mm) | 90 |
|---|---|
| Overall height H (mm) | 35 |
| Fixing hole spacing G (mm) | M12 |
| Max load, 2nd direction (kg) | 400 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | KA01 | MFL-1 | MFL-2 | MFL-3 | MFL-4 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 80mm | 80mm | 80mm | 80mm | 80mm |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M10 | M12 | M12 | M12 | M12 |
A. The KA090 is rated to a maximum load of 400 kg, making it the highest-capacity standard foot in this levelling range.
A. The KA090 has a base diameter of 90 mm, a height of 35 mm, and an M12 thread.
A. The KA090 is suited to machine tools, lathes, presses, conveyors, generator sets, and heavy industrial equipment. Industries served include food processing, pharmaceuticals, power generation, marine, automotive, agriculture, railway and mass transit, and construction and off-highway sectors.
A. The rubber-to-metal bonded design absorbs vibration and reduces structure-borne noise, helping to protect surrounding structures, extend machinery lifespan, and improve operator comfort during continuous operation.
A. Yes. Oil-resistant and high-temperature rubber compounds, stainless steel hardware, and additional custom sizes are all available on request.
A. The range includes KA01, KA02, KA03, KA05, KA16, MFL-1, MFL-2, and MFL-3. Each variant covers a different base diameter, thread size, and load capacity to suit a wide variety of machinery installations.
