Product Number: MFL-4

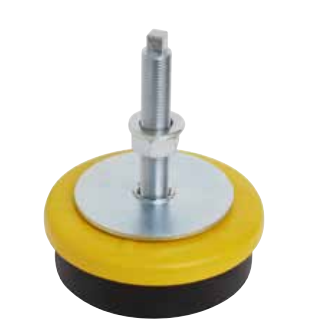

Carrying a maximum load of 5,500 kg, the MFL-4 is the largest and highest-capacity adjustable levelling foot in its range, an 80 mm diameter, M12-threaded machine foot built for heavy industrial environments where precise levelling and effective vibration attenuation must be sustained under substantial load. It is well suited to demanding plant such as heavy presses, generator sets, conveyors, and large machine tools where floor loads are high and consistent isolation is essential. Rubber-to-metal bonded construction gives the MFL-4 its structural integrity, combining the compliance of rubber with the strength of a fixed metallic frame. The adjustable design allows height variation between 38 mm and 48 mm (H), with a thread engagement length (L) of 65–75 mm on the M12 spindle, providing the geometry needed to achieve a level machine platform on uneven workshop or industrial floors. The rubber element reduces transmitted vibration and structure-borne noise, protecting surrounding structures and improving operator comfort over extended machine operation cycles. Applications span a broad range of industries where heavy equipment demands reliable levelling and vibration control: construction and off-highway plant, power generation, marine installations, agricultural machinery, railway and mass transit equipment, automotive production, and military and defence applications, as well as food processing and pharmaceutical environments. The rubber-to-metal bond allows loading in compression, shear, or a combination, offering flexibility in installation orientation. Custom options including oil-resistant and high-temperature rubbers, stainless steel metalwork, and non-standard sizes are available on request. The MFL-4 sits at the top of the adjustable levelling foot range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer diameter D (mm) | 80 |
|---|---|
| Overall height H (mm) | 38-48 |
| Fixing hole spacing G (mm) | M12 |
| Length L (mm) | 65-75 |
| Max load (kg) | 5500 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | KA01 | KA090 | AVLF120 | KA05 | AVLF100 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 80mm | 90mm | 42.5mm | 120mm | 38.5mm |
| Size Range | 51-100mm | 51-100mm | 26-50mm | 101-200mm | 26-50mm |
| Thread | M10 | M12 | M16 | M12 | M16 |
A. The MFL-4 has a maximum load capacity of 5,500 kg, making it the highest-capacity foot in the adjustable levelling foot range.
A. The MFL-4 has a diameter (D) of 80 mm, an adjustable height (H) of 38–48 mm, an M12 thread (G), and a thread engagement length (L) of 65–75 mm.
A. The MFL-4 is suited to heavy industrial equipment including presses, generator sets, conveyors, machine tools, and equipment used in food processing, pharmaceutical, marine, agricultural, railway, automotive, and defence applications.
A. The rubber-to-metal bonded construction allows the foot to absorb vibration and attenuate structure-borne noise transmitted from machinery to the floor and surrounding structures, improving operator comfort and protecting the installation environment.
A. The MFL-4 may be loaded in compression, shear, or a combination of both, providing installation flexibility to suit different machine foot arrangements.
A. Yes — oil-resistant and high-temperature rubber compounds, stainless steel metalwork, and additional or custom sizes are available on request.
A. Yes — the range also includes MFL-1, MFL-2, and MFL-3, which cover smaller diameters and lower load bands. Complementary anti-vibration mounts are also available under part numbers KA01, KA02, KA03, KA05, KA090, and KA16.
