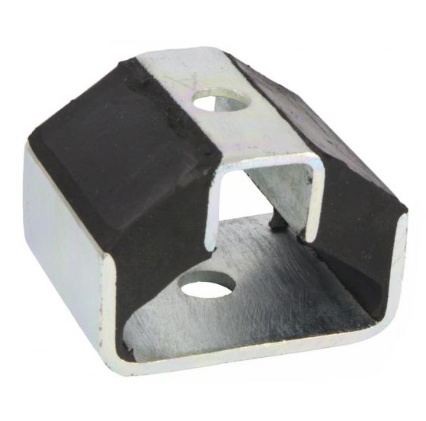

Product Number: UU1480-60-60
With a rated maximum load of 95 kg with a controlled deflection of 4.5 mm, the UU1480-60-60 is a 60 Shore A UU shear mounting designed to balance vibration isolation with structural support across a broad range of general machinery applications. Its mid-range hardness places it firmly in the mainstream of industrial mounting requirements, where moderate loads demand a dependable combination of flexibility and load-bearing capacity rather than the extremes of either. Constructed with rubber-to-metal bonded technology, the mount delivers consistent performance in shear loading, with its rubber element working to absorb and dissipate vibratory energy at the interface between machine and structure. This bonded construction ensures the rubber and metal components act as a unified assembly, maintaining integrity under sustained operational conditions. The 60 Shore A rubber formulation achieves a working balance between deflection compliance and load resistance, making it suited to machinery where neither excessive movement nor rigid restraint is appropriate. Key dimensions are: A 80 mm, B 50 mm, C 78 mm, D 50 mm, E 55 mm, F 30 mm, G & H 13 mm. These proportions position the UU1480-60-60 for service in power generation, agricultural, marine, railway and mass transit, and construction and off-highway equipment, as well as automotive and military and defence applications. The mount improves machinery lifespan, protects surrounding structures from transmitted vibration, and contributes to operator comfort. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PE1803 | PE1804 | PE1805 | UU100-40*-40 | UU100-70*-70 |
| Type | Mounting | Mounting | Mounting | Mounting | Mounting |
| Size | 60.3x38.1mm | 90x100mm | 90x100mm | ||
A. The UU1480-60-60 is rated to a maximum load of 95 kg with a deflection of 4.5 mm, making it appropriate for moderate-load general machinery applications where a balance of isolation and structural support is required.
A. The key dimensions are: A 80 mm, B 50 mm, C 78 mm, D 50 mm, E 55 mm, F 30 mm, and G & H 13 mm.
A. A 60 Shore A rubber is a mid-range hardness grade. In shear mounting applications, it provides a balance between deflection compliance and load-bearing capacity — offering greater resistance than softer grades whilst retaining sufficient flexibility for effective vibration isolation at moderate loads.
A. The UU1480-60-60 serves power generation, agricultural, marine, railway and mass transit, construction and off-highway, automotive, and military and defence applications. Its 60 Shore A rating is suited to the broad middle ground of general machinery mounting requirements.
A. The UU1480-60-60 uses rubber-to-metal bonded construction, with the rubber element working in shear to absorb and dissipate vibratory energy. This bonded method ensures the assembly maintains integrity under sustained loading conditions.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Yes. The UU1480 is also available in 40 Shore A (UU1480-40) and 50 Shore A (UU1480-50). Related shear mountings in alternative sizes include the UU1479 range (UU1479-40, UU1479-50, UU1479-60) and the UU100 range (UU100-40, UU100-60, UU100-70).
