Product Number: UU100-40*-40

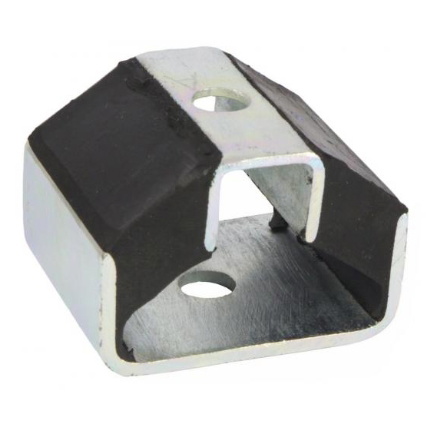

Engineered for maximum vibration isolation where movement under load is an asset rather than a liability, the UU100-40*-40 is a rubber-to-metal bonded UU shear mounting with a 40 Shore A soft rubber element. At this hardness grade, the mount is built to give the highest deflection in the UU100 range, 6.8 mm under its rated maximum load of 130 kg. Making it the appropriate choice wherever lower-frequency vibration must be absorbed without transmitting shock into a chassis, frame, or sensitive neighbouring equipment. The rubber-to-metal bonded construction provides a secure, durable interface between the rubber element and its metal inserts, maintaining consistent isolating performance across repeated loading cycles. As the softest grade in this geometry, the 40 Shore A formulation prioritises isolation efficiency: softer grades give greater deflection and better isolation at lower load, suiting instruments, electronics, and light equipment where protecting sensitive components from vibration damage is the primary objective. The mount can be loaded in shear, compression, or a combination of both, adding installation flexibility. Rubber hardness in the UU shear mount family follows a deliberate progression, softer grades deliver greater deflection and superior isolation, while harder grades carry higher loads with less movement. For applications where industries such as construction and off-highway, agriculture, power generation, marine, railway and mass transit, or automotive demand genuine isolation rather than restraint, the 40 Shore A grade is the correct selection.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PE1803 | PE1804 | PE1805 | UU100-60*-60 | UU100-70*-70 |
| Type | Mounting | Mounting | Mounting | Mounting | Mounting |
| Size | 60.3x38.1mm | 90x100mm | 90x100mm | ||
A. The UU100-40*-40 has the following dimensions: A 90 mm, B 100 mm, C 50 mm, D 34 mm, E 34 mm, F 39 mm, and G & H 15 mm.
A. The UU100-40*-40 is rated to a maximum load of 130 kg and provides a deflection of 6.8 mm at that load, which is characteristic of the soft 40 Shore A grade delivering greater movement and superior vibration isolation.
A. Softer grades such as the 40 Shore A give greater deflection and better vibration isolation at lower loads. This grade is appropriate for instruments, electronics, light equipment, and applications where absorbing lower-frequency vibration and protecting sensitive components is the priority, rather than restraining heavy or high-shock loads.
A. The UU100-40*-40 may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation to suit different mounting arrangements.
A. The UU shear mount family serves construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. The 40 Shore A soft grade is particularly suited to instruments, electronics, and light equipment requiring isolation from vibration rather than heavy-load restraint.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. Alternative hardness grades in the same UU100 footprint include the 60 Shore A (UU100-60*) and 70 Shore A (UU100-70*). The UU1479 series is available in 40, 50, and 60 Shore A (UU1479-40, UU1479-50, UU1479-60), and the UU1480 series in 40, 50, and 60 Shore A (UU1480-40, UU1480-50, UU1480-60).
