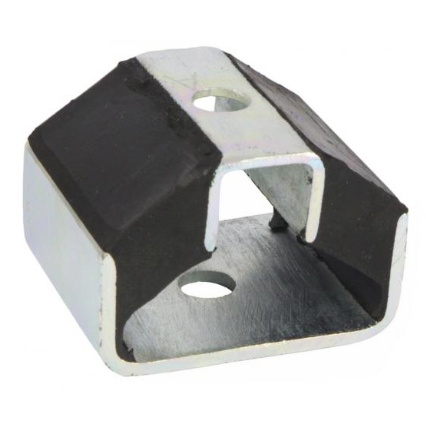

Product Number: UU1479-60-60
Rated to a maximum load of 205 kg with a controlled deflection of 4.0 mm, the UU1479-60-60 is a 60 Shore A shear mounting engineered for the broad middle ground of industrial machinery installation, where both adequate vibration isolation and firm structural support are required in equal measure. Its rubber-to-metal bonded construction gives it the rigidity to handle demanding cycles without sacrificing the compliance needed to protect surrounding structures and improve operator comfort. The medium hardness grade positions this mount at the productive centre of the shear mounting range. At 60 Shore A, the rubber delivers a balanced deflection characteristic: sufficient compliance to attenuate vibration effectively across a wide frequency band, yet firm enough to restrain significant dynamic loads and limit excessive movement under varying operating conditions. This equilibrium suits installations where neither maximum isolation nor maximum stiffness can be prioritised at the expense of the other. Dimensionally, the mount measures 86 mm (A) by 64 mm (B) with an overall height of 108 mm (C), a base of 76 mm (D), an 82 mm (E) dimension, 38 mm (F), and G and H fixings of 16 mm. These proportions, combined with the 205 kg load ceiling, make the UU1479-60-60 well suited to general-purpose machinery mounting across power generation, marine, agricultural, railway and mass transit, construction and off-highway, and automotive applications. Custom configurations in stainless steel or oil-resistant and high-temperature rubbers are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PE1803 | PE1804 | PE1805 | UU100-40*-40 | UU100-70*-70 |
| Type | Mounting | Mounting | Mounting | Mounting | Mounting |
| Size | 60.3x38.1mm | 90x100mm | 90x100mm | ||
A. The UU1479-60-60 is rated to a maximum load of 205 kg with a deflection of 4.0 mm at that load.
A. The principal dimensions are: A 86 mm, B 64 mm, C 108 mm, D 76 mm, E 82 mm, F 38 mm, and G and H both 16 mm.
A. At 60 Shore A, this mount offers a balance of vibration isolation and structural support — softer grades such as the UU1479-40 and UU1479-50 provide greater deflection and better isolation at lower loads, while firmer grades carry higher loads with less movement. The 60 Shore A grade suits general-purpose applications where neither extreme is required.
A. It is suited to a broad range of industries including power generation, marine, agricultural, construction and off-highway, railway and mass transit, automotive, and military and defence applications where balanced vibration isolation and machinery protection are required.
A. Shear mountings of this type may be loaded in shear, compression, or a combination of the two, depending on the installation.
A. The UU1479-60-60 uses rubber-to-metal bonded construction, which bonds the rubber element securely to its metal components to maintain integrity under dynamic loading.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. Yes — the UU1479 series is also available in 40 Shore A (UU1479-40) and 50 Shore A (UU1479-50). Related mountings include the UU1480-40, UU1480-50, and UU1480-60, as well as the UU100-40, UU100-60, and UU100-70 in an alternative geometry.
