Product Number: UU100-60*-60
The UU100-60*-60 is a rubber-to-metal bonded UU shear mounting rated to a maximum load of 250 kg, supplied in 60 Shore A rubber, the medium hardness grade that balances vibration isolation against structural support across the broad middle ground of machinery mounting applications. With overall dimensions of 90 mm × 100 mm (A × B), a height of 50 mm (C), and a rated deflection of 6.8 mm under load, this mount is engineered for heavier equipment where controlled movement and confident load-bearing must coexist. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression, or a combination of both, providing versatility across many installation configurations. The 60 Shore A hardness grade occupies the practical centre of the range: softer grades deliver greater deflection and superior isolation at lower loads, while harder grades carry higher loads with reduced movement. At 60 Shore A, this mounting addresses applications where both load capacity and meaningful vibration attenuation are required simultaneously. The mount improves machinery lifespan, protects surrounding structures, and enhances operator comfort in demanding operating environments. Typical industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. The mounting dimensions, with F of 39 mm and G & H of 15 mm, plus D and E fixing centres of 34 mm each. Provide a stable, well-proportioned footprint for heavier industrial plant and mobile equipment where shock loads and sustained vibration are routine.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

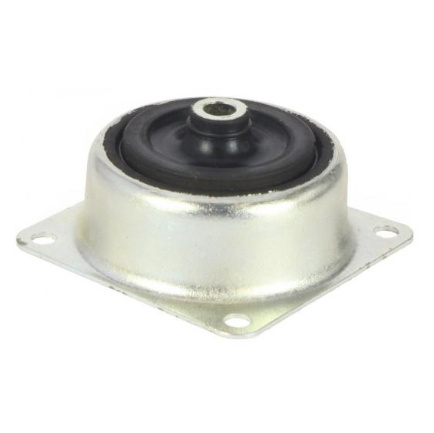

| PRODUCT NUMBER | PE1803 | PE1804 | PE1805 | UU100-40*-40 | UU100-70*-70 |
| Type | Mounting | Mounting | Mounting | Mounting | Mounting |
| Size | 60.3x38.1mm | 90x100mm | 90x100mm | ||
A. The mounting measures 90 mm (A) × 100 mm (B) overall, with a height (C) of 50 mm. Fixing dimensions D and E are both 34 mm, F is 39 mm, and G & H are 15 mm.
A. The UU100-60*-60 is rated to a maximum load of 250 kg with a deflection of 6.8 mm at that load.
A. The 60 Shore A medium grade balances vibration isolation with load-bearing capacity. Softer grades provide greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement. The 60 Shore A grade suits applications where both adequate load support and meaningful vibration attenuation are required.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility across varied installation configurations.
A. The UU100-60*-60 is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications, as well as general industrial machinery mounting where vibration isolation, machinery lifespan improvement, and operator comfort are priorities.

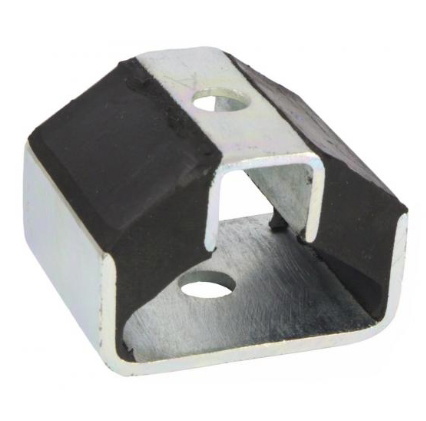

A. Yes — this mounting is available in 40 Shore A (UU100-40*) for lighter loads and greater deflection, and in 70 Shore A (UU100-70*) for higher-load firm-grade duty. Related UU family variants include UU1479-40, UU1479-50, UU1479-60, UU1480-40, UU1480-50, and UU1480-60.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
