Spanning the mid-range of the Silent Marine series, SM1609 is a rubber-to-metal bonded engine mounting dimensioned at 183 mm (dimension A) with M16 thread, engineered to carry its rated load band whilst delivering effective vibration isolation in both shear and compression. Its bonded construction suits installations where steady-state engine vibration must be attenuated without excessive movement at the mounting point, a balance particularly relevant to mid-range propulsion configurations and similarly loaded general engine installations. The rubber-to-metal bonded design allows the mount to be loaded in shear, compression, or a combination of the two, making it adaptable across a range of installation geometries. By absorbing and damping transmitted vibration, the mounting improves machinery lifespan, protects surrounding structures, and enhances operator comfort, benefits valued across marine, power generation, construction and off-highway, agricultural, and railway and mass transit applications, as well as automotive and military and defence environments. Key dimensions are as follows: A 183 mm, B 50 mm, C 75 mm, D 140 mm, F 13 mm, M M16 thread, G 30 mm, J 20 mm, S 4 mm. The failsafe arrangement provides an additional margin of security should the rubber element reach the limit of its working range. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for demanding operating environments, as are additional and custom sizes. This mounting is part of a family of Silent Marine variants. Lighter-duty and smaller-format alternatives are available under SM1600, while the larger SM1657 serves heavier load requirements.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 183 |
|---|---|
| Width / dimension B (mm) | 50 |
| Height / dimension C (mm) | 75 |
| Outer diameter D (mm) | 140 |
| Fixing hole / dimension F (mm) | 13 |
| Thread / stud size M | M16 |
| Fixing hole spacing G (mm) | 30 |
| Dimension J (mm) | 20 |
| Plate / metal thickness S (mm) | 4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

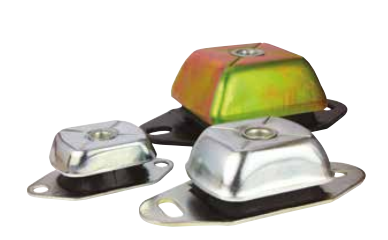

| PRODUCT NUMBER | SM1600 | SM1600-45 | SM1600-55 | SM1600-65 | SM1609-35 |
| Type | Engine Mount | Engine Mount | Engine Mount | Engine Mount | Engine Mount |
| Size | 120mm | ||||
| Deflection | 4 | 4 | 4 | 5 | |
| Overall Height | 38.5mm | 38.5mm | 38.5mm | 50mm | |
| Size Range | 101-200mm | ||||
| Thread | M12 | M12 | M12 | M12 | M16 |
A. The SM1609 has the following dimensions: A 183 mm, B 50 mm, C 75 mm, D 140 mm, F 13 mm, thread M M16, G 30 mm, J 20 mm, and S 4 mm.
A. The SM1609 may be loaded in shear, compression, or a combination of both, making it suitable for varied installation geometries and engine mounting configurations.
A. Originally designed for marine propulsion engine mounting, it is also suitable for general engine mounting across marine, power generation, construction and off-highway, agriculture, railway and mass transit, automotive, and military and defence applications.
A. The failsafe arrangement offers an additional safety margin should the rubber element reach the limit of its working range, maintaining mounting integrity under exceptional loading conditions.
A. The bonded rubber-to-metal construction absorbs and damps transmitted vibration, improving machinery lifespan, protecting surrounding structures, and enhancing operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. SM1609 occupies the mid-range position. SM1600 offers a lighter-duty or smaller-format alternative, while SM1657 is suited to heavier load requirements. The correct selection depends on the actual load band of the installation.
