Product Number: SM1600-45
Variations
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

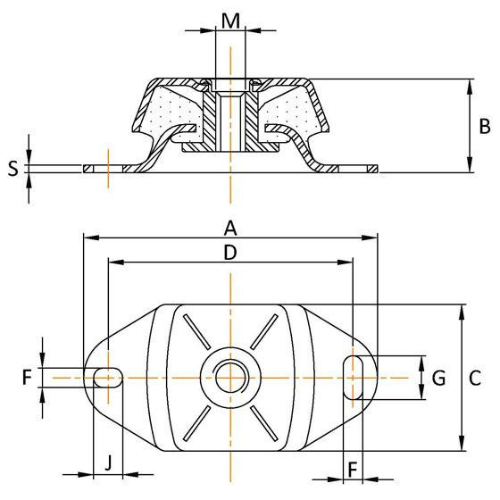

| Overall Length (A) | 120mm |
|---|---|
| Overall Height (B) | 38.5mm |
| Flange Width (C) | 60mm |
| Fixing Hole Distance (D) | 100mm |
| Fixing Hole Dimension (F) | 11mm |
| Thread Size (M) | M12 |
| Flange Thickness (G) | 14mm |
| Edge Distance (J) | 11mm |
| Max Load (Kg) | 50 |
| Deflection (mm) | 4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SM1609-35 | SM1609-45 | SM1609-55 | SM1609-65 | SM1657-45 |
| Type | Engine Mount | Engine Mount | Engine Mount | Engine Mount | Engine Mount |
| Deflection | 5 | 5 | 5 | 5 | 6 |
| Overall Height | 50mm | 50mm | 50mm | 50mm | 74mm |
| Thread | M16 | M16 | M16 | M16 | M20 |
A. The SM1600 has the following dimensions: A 120 mm, B 38.5 mm, C 60 mm, D 100 mm, F 11 mm, thread size M12, G 14 mm, J 11 mm, and S 3 mm.
A. The SM1600 is designed to be loaded in shear, compression, or a combination of both, giving flexibility in how it is integrated into an engine mounting arrangement.
A. The rubber-to-metal bonded construction provides a failsafe arrangement, meaning the rubber element is bonded securely to the metalwork and cannot separate under normal operating conditions — a particularly important characteristic in marine installations.
A. Although originally designed for marine propulsion engines, the SM1600 is suitable for use in construction and off-highway, agriculture, power generation, railway and mass transit, automotive, and military and defence applications where vibration isolation of engines or machinery is required.
A. By isolating vibration at source, the SM1600 improves machinery lifespan, protects surrounding structures from transmitted vibration, and improves operator comfort.
A. Yes — stainless steel metalwork, oil-resistant rubber, and high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Yes — the Silent Marine range includes SM1609 and SM1657, which cover larger load bands and alternative dimensional specifications. See those listings to select the correct mount for your application.
