Product Number: CTM1444816-2
Variations
The CTM1444816-2 is the lightest-rated grade of the 155 x 48 mm captive transit mount, rated to 750 kg per point. It serves generating sets, diesel and marine engines, pumps, motors, fans and compressors that need restraint on the move.
The rubber works in shear compression for vibration reduction of up to 95% in all axes, and the metal top cap protects it from oil and fuel. The integral overload stop controls equipment movement during transit, with the captive construction failing safe under shock loads. Dimensions: 155 mm flange, 48 mm flange height, fixing 14X11mm at 176-188mm centres, 120 mm inner dimension, 216 mm free length, 4 mm base. AV Industrial Products manufactures and supplies anti-vibration mounts and rubber engineering components for industrial applications across the UK.
Alternative grades on this body: CTM1444816-3 (1500 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

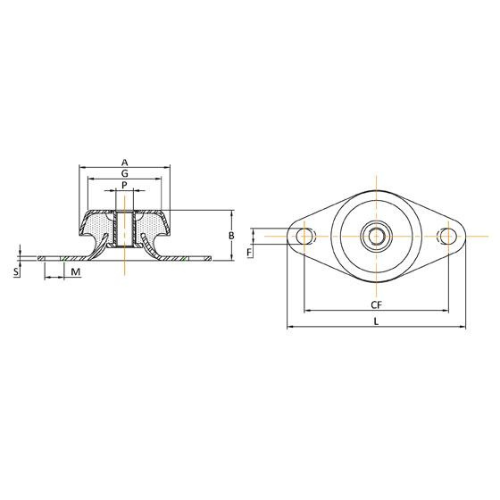

| Outer Dimensions (A) | 155mm |
|---|---|
| Flange Height (B) | 48mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 14X11mm |
| Center Distance (CF) | 176-188mm |
| Inner Dimensions (G) | 120mm |
| Free Length (L) | 216mm |
|
, Max Load 750
|
|
| Deflection (mm) | 8mm |
| Mounting Base Thickness (S) | 4mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1445316-8 | CTM924512-60 | CTM1064212-4 | CTM1064216-4 | CTM1214216-60 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 12mm | 3.5mm | 7mm | 7mm | 4mm |
| Thread | M16 | M12 | M12 | M16 | M16 |
A. Fit is dimensional - 155 mm flange, fixing holes 14X11mm at 176-188mm centres, M16 stud, 216 mm free length. Compare with your footprint, search PartsForMachines by the AV part number, or WhatsApp our team to confirm.
A. 750 kg per mounting point.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1444816-3 (1500 kg). Work out the load per mounting point and pick the grade that covers it.
A. The metal top cap is designed to protect the rubber element from contamination such as oil and fuel.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
