Product Number: CTM653512-40
The CTM653512-40 is the soft grade of the 65 x 35 mm captive transit mount, rated to 50 kg per point. It serves generating sets, diesel and marine engines, pumps, motors, fans and compressors that need restraint on the move.
The rubber works in shear compression for vibration reduction of up to 95% in all axes, and the metal top cap protects it from oil and fuel. The integral overload stop controls equipment movement during transit, with the captive construction failing safe under shock loads. Dimensions: 65 mm flange, 35 mm flange height, fixing 15x11mm at 100mm centres, 45 mm inner dimension, 120 mm free length, 3 mm base. AV Industrial Products manufactures and supplies anti-vibration mounts and rubber engineering components for industrial applications across the UK.
Alternative grades on this body: CTM653512-60 (120 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

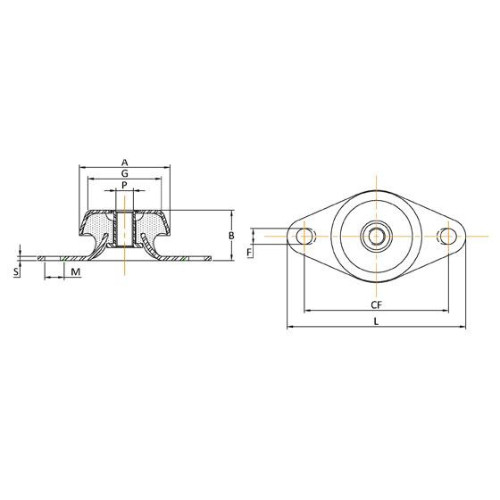

| Outer Dimensions (A) | 65mm |
|---|---|
| Flange Height (B) | 35mm |
| Thread size (P) | M12 |
| Mounting Hole Dimensions (F x M) | 15x11mm |
| Center Distance (CF) | 100mm |
| Inner Dimensions (G) | 45mm |
| Free Length (L) | 120mm |
|
, Max Load 50
|
|
| Deflection (mm) | 4mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM633510-1 | CTM633510-2 | CTM633512-1 | CTM633512-2 | CTM-R3 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm |
| Thread | M10 | M10 | M12 | M12 | M12 |
A. Fit is dimensional - 65 mm flange, fixing holes 15x11mm at 100mm centres, M12 stud, 120 mm free length. Compare with your footprint, search PartsForMachines by the AV part number, or WhatsApp our team to confirm.
A. 50 kg per mounting point.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM653512-60 (120 kg). Work out the load per mounting point and pick the grade that covers it.
A. The metal top cap is designed to protect the rubber element from contamination such as oil and fuel.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
