Product Number: CTM633510-5
Variations

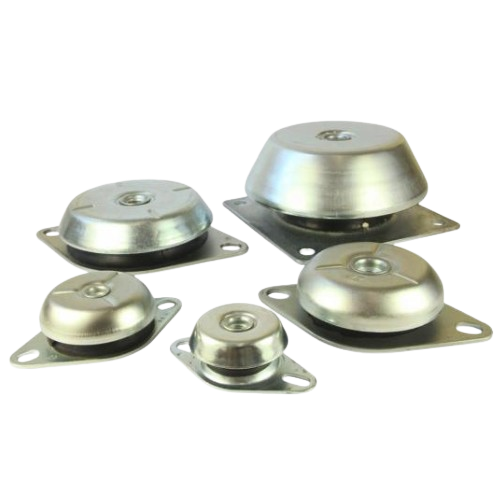

Rated to 175 kg per mount, the CTM633510-5 sits on the 63 x 35 mm captive transit body with an M10 stud. Typical duties run from generating sets and diesel engines to pumps, motors, fans and compressors - anywhere isolation and transit restraint are both required.
Shear-compression loading of the rubber element removes up to 95% of vibration in all axes; a metal top cap keeps oil and fuel off the rubber; and the integral overload stop plus captive, failsafe construction keep the equipment controlled in transit and under shock. Dimensions: 63 mm flange, 35 mm flange height, fixing 9x14mm at 76-90mm centres, 50 mm inner dimension, 110 mm free length, 2.5 mm base.
Alternative grades on this body: CTM633510-1 (40 kg), CTM633510-2 (60 kg), CTM633510-3 (100 kg), CTM633510-4 (130 kg), CTM633510-6 (225 kg). The footprint and fixings are identical across the family, so grades interchange without rework. Check the deflection figure against the movement your installation can accept before finalising the grade.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 63mm |
|---|---|
| Flange Height (B) | 35mm |
| Thread size (P) | M10 |
| Mounting Hole Dimensions (F x M) | 9x14mm |
| Center Distance (CF) | 76-90mm |
| Inner Dimensions (G) | 50mm |
| Free Length (L) | 110mm |
|
, Max Load 175
|
|
| Deflection (mm) | 3.5mm |
| Mounting Base Thickness (S) | 2.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM633512-5 | CTM833510-60 | CTM833512-60 | CTM1064212-1 | CTM1064216-1 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3.5mm | 6mm | 6mm | 7mm | 7mm |
| Thread | M12 | M10 | M12 | M12 | M16 |
A. Fit is dimensional - 63 mm flange, fixing holes 9x14mm at 76-90mm centres, M10 stud, 110 mm free length. Compare with your footprint, search PartsForMachines by the AV part number, or WhatsApp our team to confirm.
A. 175 kg per mounting point.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM633510-1 (40 kg), CTM633510-2 (60 kg), CTM633510-3 (100 kg), CTM633510-4 (130 kg), CTM633510-6 (225 kg). Work out the load per mounting point and pick the grade that covers it.
A. The metal top cap is designed to protect the rubber element from contamination such as oil and fuel.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
