Product Number: PH250

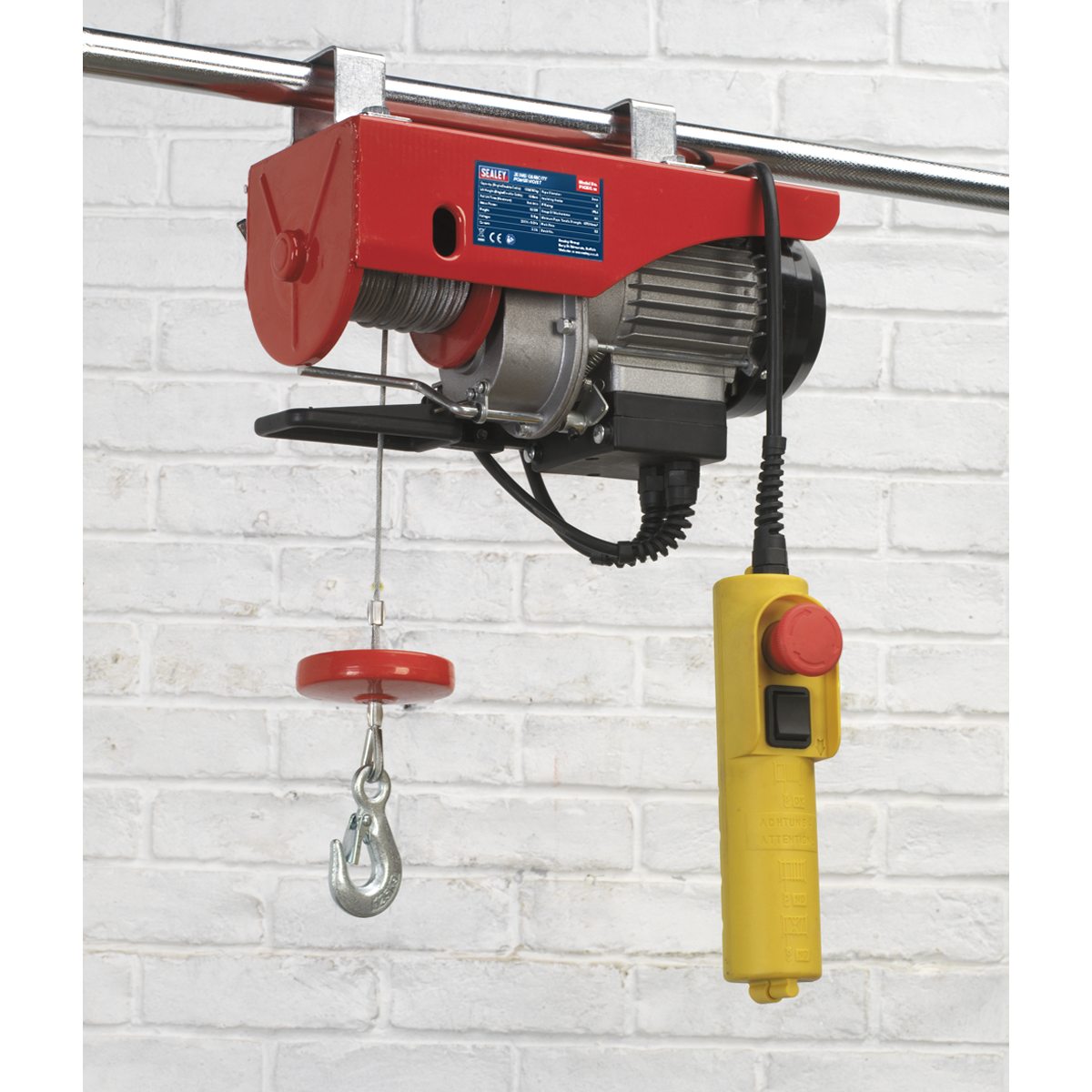

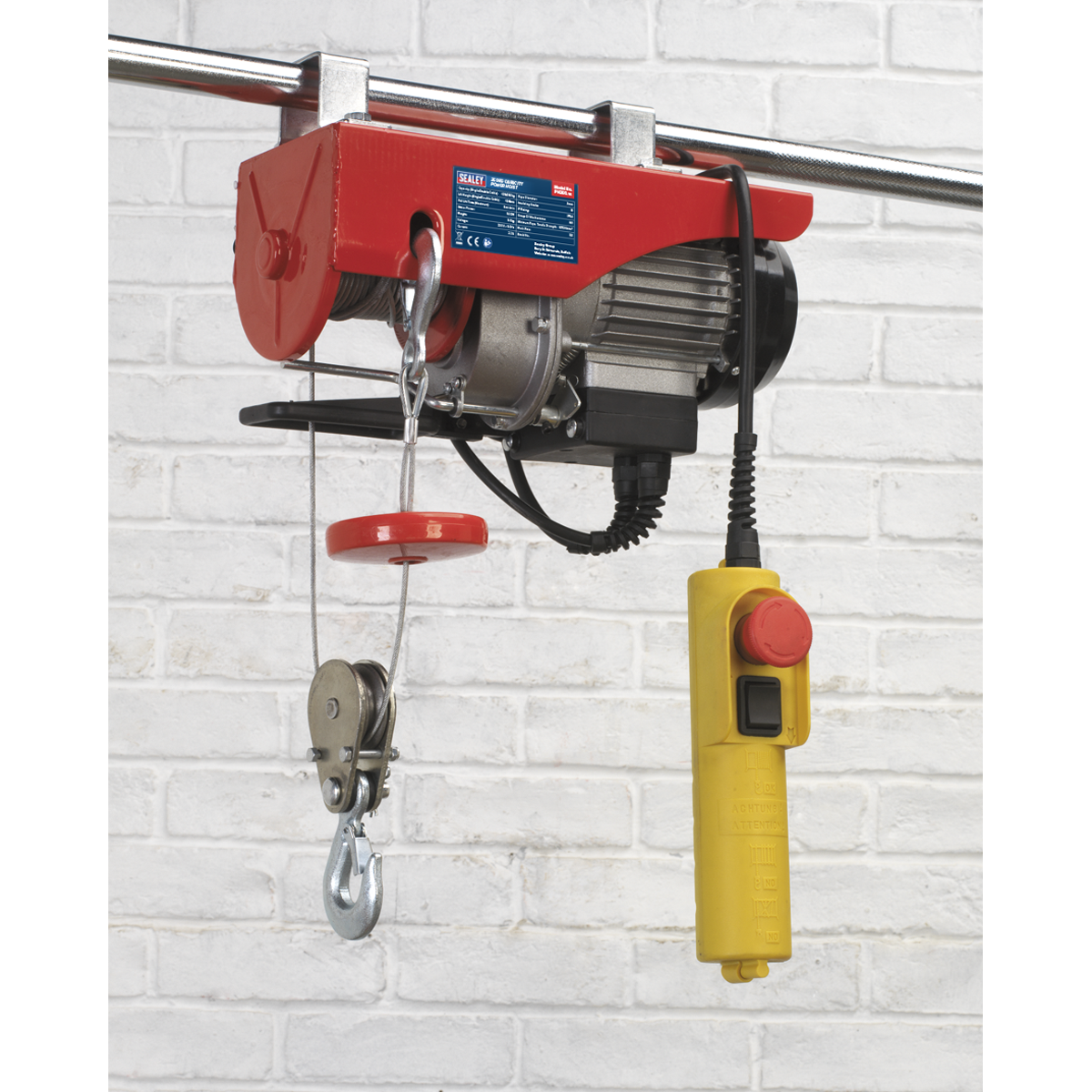

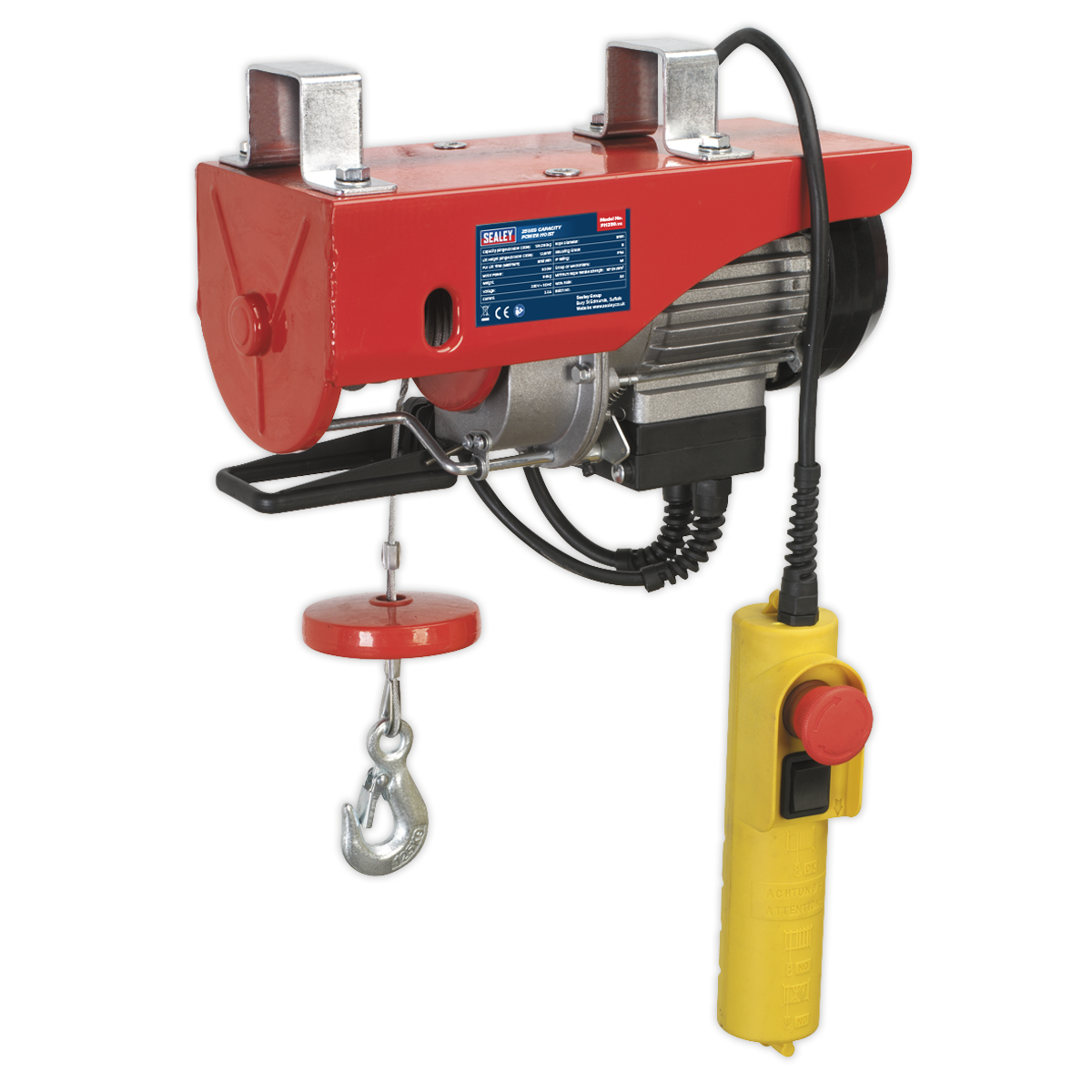

When you need to lift heavy loads reliably in a workshop or industrial setting, the Sealey PH250 Power Hoist delivers a 250kg capacity on double cable and 125kg on single cable, powered by a 500W motor running on a standard 230V/1ph supply. Lift height reaches 6m on double cable and 12m on single cable, with a maximum lift speed of 8m/min. Rated to IP54 for protection against dust and water ingress, and approved to EU and UK Lifting Gear Regulations for peace of mind in professional environments. Support brackets are included with the equipment. Please note: a support bar is not included and must be sourced separately. This hoist is intended for use where a suitable support facility exists.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH250 |
|---|---|
| Brand | Sealey |
| Capacity (Double Cable) | 250kg |
| Capacity (Single Cable) | 125kg |
| Current | 2.2A |
| Group of Mechanisms | M1 |
| Insulating Grade | B |
| IP Rating | IP54 |
| Lift Height (Double Cable) | 6m |
| Lift Height (Single Cable) | 12m |
| Lift Speed (Maximum) | 8m/min |
| Minimum Rope Tensile Strength | 1870N/mm² |
| Motor Power | 500W |
| Nett Weight | 9.6kg |
| Rope Diameter | 3mm |
| Voltage | 230V~50Hz |
| Work Rate | S3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | AK6828 | LH1500 | MGS-30D | MGP-10D | MGP-10 | MGS-10D |
A. The PH250 has a capacity of 250kg on double cable and 125kg on single cable.
A. Lift height is 6m on double cable and 12m on single cable.
A. The PH250 runs on a 230V single-phase supply and draws 2.2A, with a 500W motor.
A. Yes. The PH250 is approved to EU and UK Lifting Gear Regulations.
A. No. Support brackets are included, but the support bar is not included and must be sourced separately.
A. The PH250 carries an IP54 rating, providing protection against dust and water ingress.
A. The duty cycle is S3 and the group of mechanisms is M1. The insulation grade is Class B.
A. The minimum rope tensile strength is 1870N/mm².
A. The maximum lift speed is 8m/min.
