Tension Cranes
Demountable cranes available in 0.5–3 ton capacity. Equipped with single or double acting pump, chrome-plated piston, overload safety valve, and dead man controls. Models 0.5–1 ton have nylon wheels; 1.5–2 ton with Vulkollan wheels. The 3-ton model is designed for unloading power units from trucks. This model offers a 3.0-tonne capacity and weighs 480 kg.
Key Features

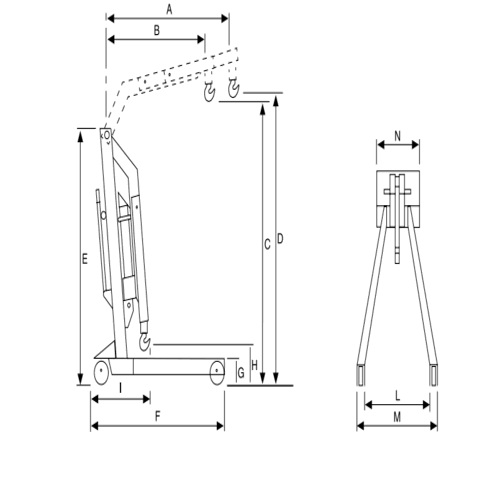

| Capacity [Ton] | 3.0 |
|---|---|
| Boom length (Max reach) A[mm] | 2150 |
| Boom length (Min reach) B[mm] | 2270 |
| Maximum Hook Height C[mm] | 2280 |
| Minimum Hook Height D[mm] | 1790 |
| Overall Height E[mm] | 265 |
| Overall Length F[mm] | 510 |
| Front Wheel Diameter G[mm] | 780 |
| Ground Clearance H[mm] | 3300 |
| Folded Length I[mm] | 3730 |
| Inside Leg Width L[mm] | 1170 |
| Outside Leg Width M[mm] | 1420 |
| Column Width N[mm] | 1400 |
| Weight [Kg] | 480 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MGS-10D | MGS-10 | MGP-10D | MGP-10 | MGP-5 | MGP-5D |
