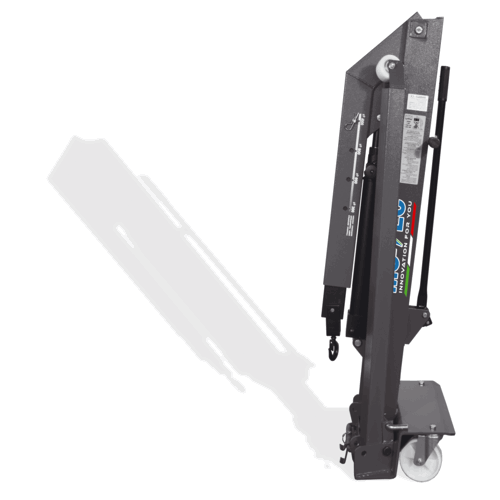

Folding Cranes Foldable design for space saving and easy transport. Available in 0.52 ton capacity, with single or double acting pump (D). Chrome-plated piston, overload safety valve, and dead man controls included. This model offers a 1.0-tonne capacity and weighs 99 kg. Key Features 1.0-tonne rated lifting capacity Overall weight: 99 kg Double acting pump (D) for smooth lifting Equipped with safety valve and dead man controls

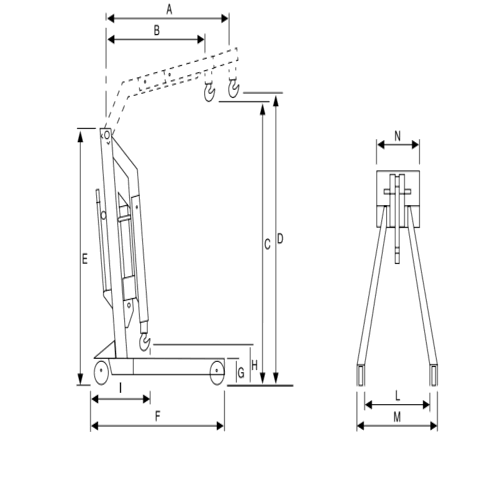

| Capacity [Ton] | 1.0 |
|---|---|
| Boom length (Max reach) A[mm] | 1560 |
| Boom length (Min reach) B[mm] | 1600 |
| Maximum Hook Height C[mm] | 1300 |
| Minimum Hook Height D[mm] | 1000 |
| Overall Height E[mm] | 170 |
| Overall Length F[mm] | 110 |
| Front Wheel Diameter G[mm] | 400 |
| Ground Clearance H[mm] | 2240 |
| Folded Length I[mm] | 2190 |
| Inside Leg Width L[mm] | 880 |
| Outside Leg Width M[mm] | 1000 |
| Column Width N[mm] | 540 |
| Weight [Kg] | 99 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SG1000 Portable Gantry Crane Adjustable 1 Tonne
£766.86
£751.82
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MGP-10 | MGP-5 | MGS-30D | MGS-10D | MGS-10 | SG1000 |
