Product Number: LH1500

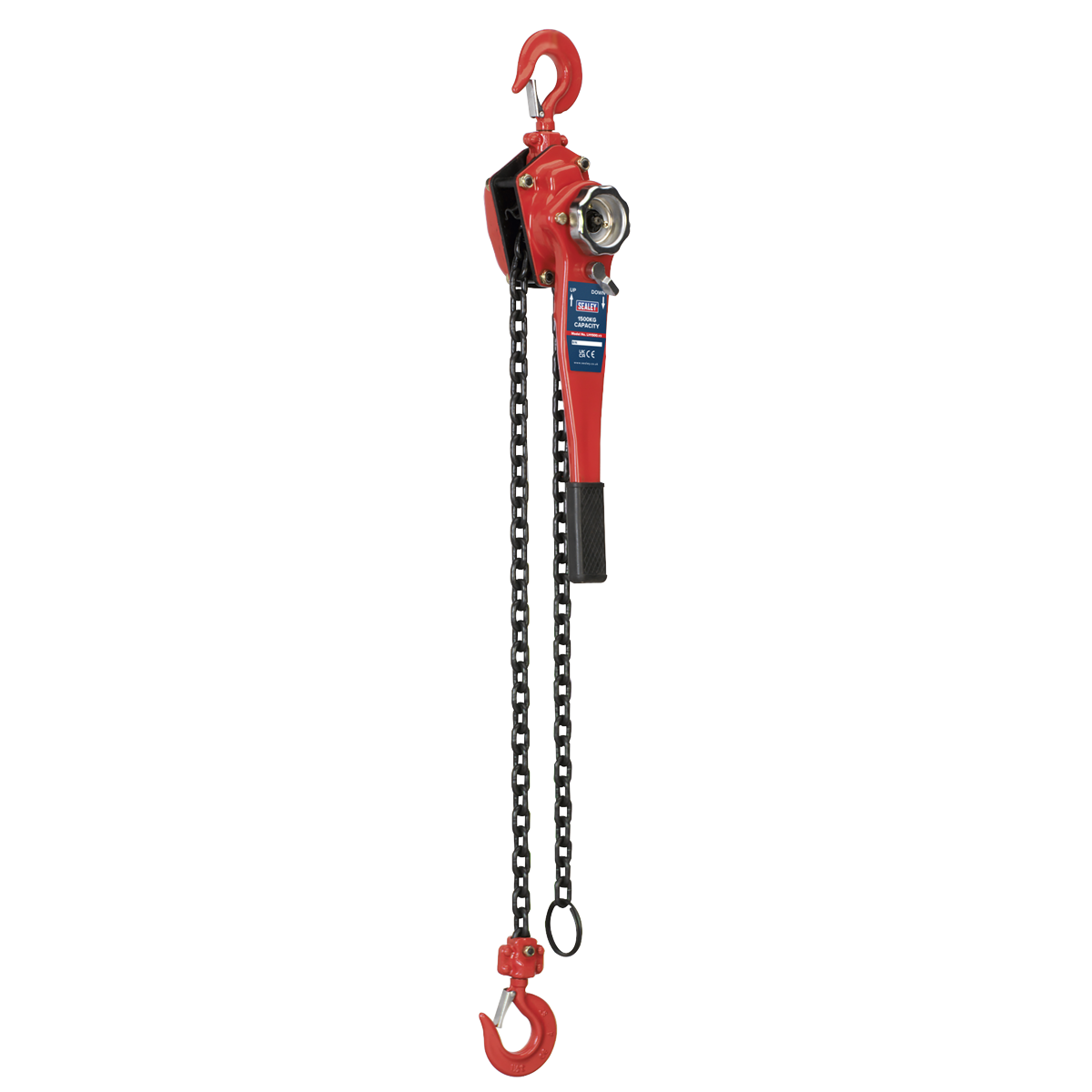

Positioning heavy loads with precision in confined or elevated spaces requires a hoist that delivers both reliable lifting power and fine control. The Sealey LH1500 is a 1500kg capacity lever hoist built around heavy-duty components designed for demanding lifting applications. The mechanism features a drop-forged, heat-treated pinion gear with a totally enclosed housing that protects internal parts from contamination. A heavy-duty brake and high-quality alloy steel load chain 8mm in diameter and 1.5m in length provide durable, safe operation, while both hooks are fitted with safety latches and rotate 360° to prevent twisting under load. A free-chaining feature allows the operator to take up slack in the load chain by hand before engaging the ratchet arm, speeding up set-up time. With a pull on the lever of 236N to lift a full load and a lever length of 363mm, the LH1500 delivers precise control over load positioning throughout the lift. Head room required is 350mm, with an operating clearance of 104mm. Maximum hook aperture is 34mm, and the maximum hook capacity diameter is 45mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | LH1500 |
|---|---|
| Brand | Sealey |
| Capacity | 1500kg |
| Chain Falls | 1 |
| Chain Length | 1.5m |
| Head Room | 295mm |
| Hook Aperture | 30mm |
| Lever Length | 410mm |
| Load Chain Diameter | Ø8mm |
| Maximum Hook Capacity Ø | 45mm |
| Nett Weight | 12kg |
| Operating Clearance | 104mm |
| Pull on Lever to Lift Full Load | 24kgf |
| Size (W x D) | 160 x 172mm |
| Test Load | 2250kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | LH3000 | AK6828 | MGS-30D | MGP-10D | MGP-10 | MGS-10D |
| Type | Hoist | |||||
| Brand | Sealey | Premier | ||||
| Length (mm) | 400 | 200 | ||||
| Model No | LH3000 | AK6828 | ||||
| Nett Weight | 19.02kg | 0.68kg | ||||
| Weight (kg) | 02 | 68 | ||||
A. The LH1500 has a rated capacity of 1500kg.
A. The load chain is 1.5m in length with a diameter of Ø8mm.
A. A pull of 236N on the 363mm lever is required to lift the full rated load.
A. A head room of 350mm is required, with an operating clearance of 104mm.
A. Yes, both hooks are fitted with safety latches and rotate 360° to prevent twisting during operation.
A. The free-chaining feature allows the operator to take up slack in the load chain by hand before engaging the ratchet arm, making set-up quicker and more efficient.
A. The hook aperture is 34mm and the maximum hook capacity diameter is 45mm.
A. The pinion gear is drop-forged and heat treated, and the mechanism is totally enclosed to protect it from contamination and damage.
