Product Number: LH750

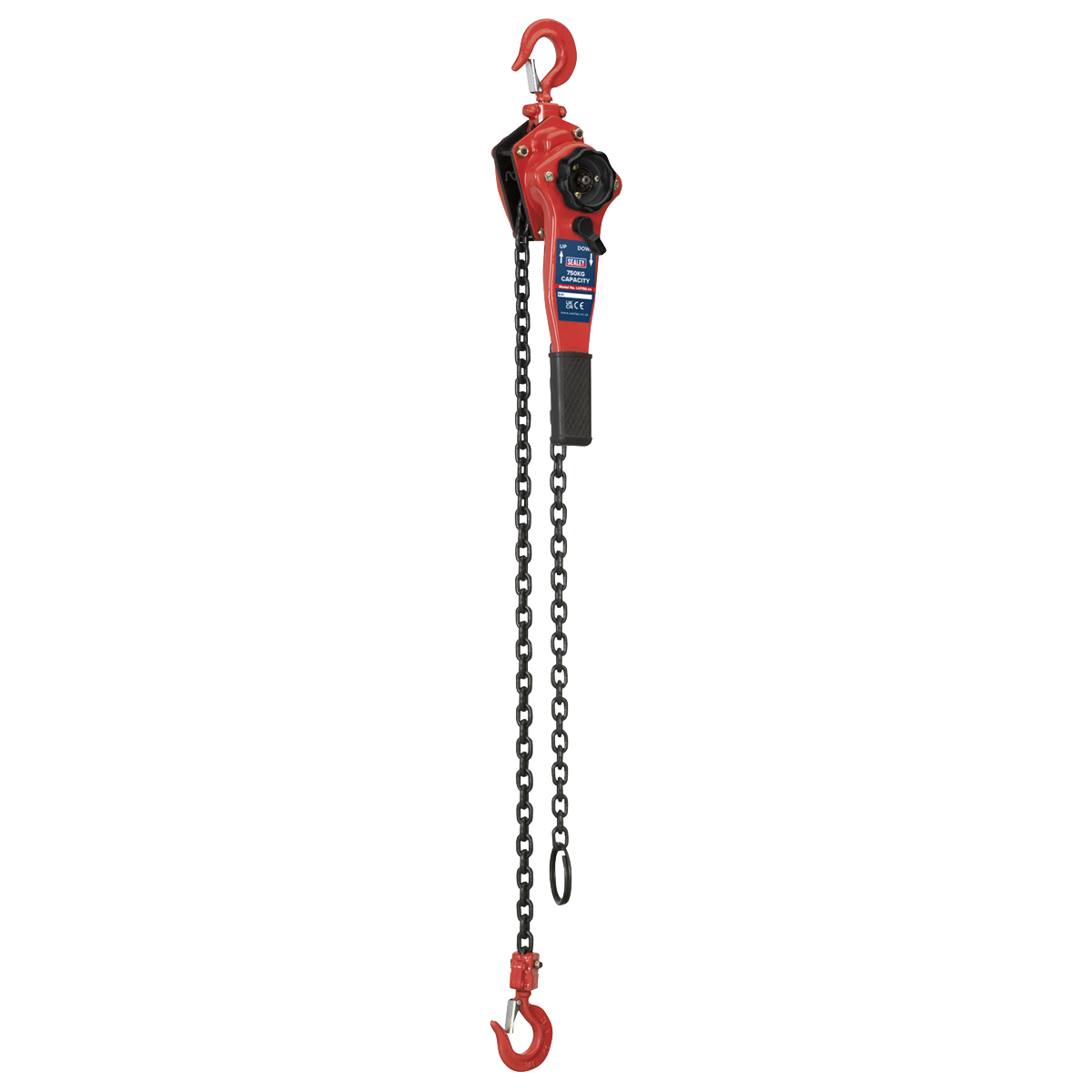

When you need precise, controlled lifting in tight spaces, a poorly built hoist becomes a liability. The Sealey LH750 Lever Hoist delivers 750kg capacity with rugged, drop-forged and heat-treated pinion gear and a totally enclosed mechanism built to handle demanding workshop and site conditions. The high-quality alloy steel load chain (6mm, 1.5m length) paired with a heavy-duty brake ensures safe, stable load holding at every position. Both hooks rotate 360° and are fitted with safety latches to prevent accidental release and eliminate twisting under load. The free-chaining feature lets you take up slack in the load chain by hand before engaging the ratchet arm, saving time and effort on every lift. With a lever length of 250mm, a pull of just 168N raises the full 750kg load, giving you total control over load positioning with minimal effort. Head room required is 280mm, hook aperture is 28mm, maximum hook capacity diameter is 38mm, and the compact 136 x 148mm body fits where space is limited.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | LH750 |
|---|---|
| Brand | Sealey |
| Capacity | 750kg |
| Chain Falls | 1 |
| Chain Length | 1.5m |
| Head Room | 275mm |
| Hook Aperture | 25mm |
| Lever Length | 280mm |
| Load Chain Diameter | Ø6mm |
| Maximum Hook Capacity Ø | 37mm |
| Nett Weight | 7kg |
| Operating Clearance | 99mm |
| Pull on Lever to Lift Full Load | 14kgf |
| Size (W x D) | 136 x 148mm |
| Test Load | 1125kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SG2000KIT Portable Gantry Crane 2 Tonne Adjustable with Hoist Combo Kit
£1,454.40
£1,425.88
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | LH1000 | SG2000KIT | MGS-30D | MGP-10D | MGP-10 | MGS-10D |
A. The Sealey LH750 has a lifting capacity of 750kg.
A. The load chain is 1.5m in length with a diameter of Ø6mm.
A. A pull of 168N on the 250mm lever is sufficient to raise the full 750kg rated load.
A. Yes. Both hooks are fitted with safety latches and rotate 360° to prevent twisting and accidental release under load.
A. The LH750 requires a minimum head room of 280mm.
A. The free-chaining feature allows slack in the load chain to be taken up by hand before the ratchet arm is engaged, speeding up the lifting process.
A. The hook aperture is 28mm and the maximum hook capacity diameter is Ø38mm.
A. The hoist body measures 136 x 148mm (W x D) with an operating clearance of 99mm.
