Product Number: PH30
Variations

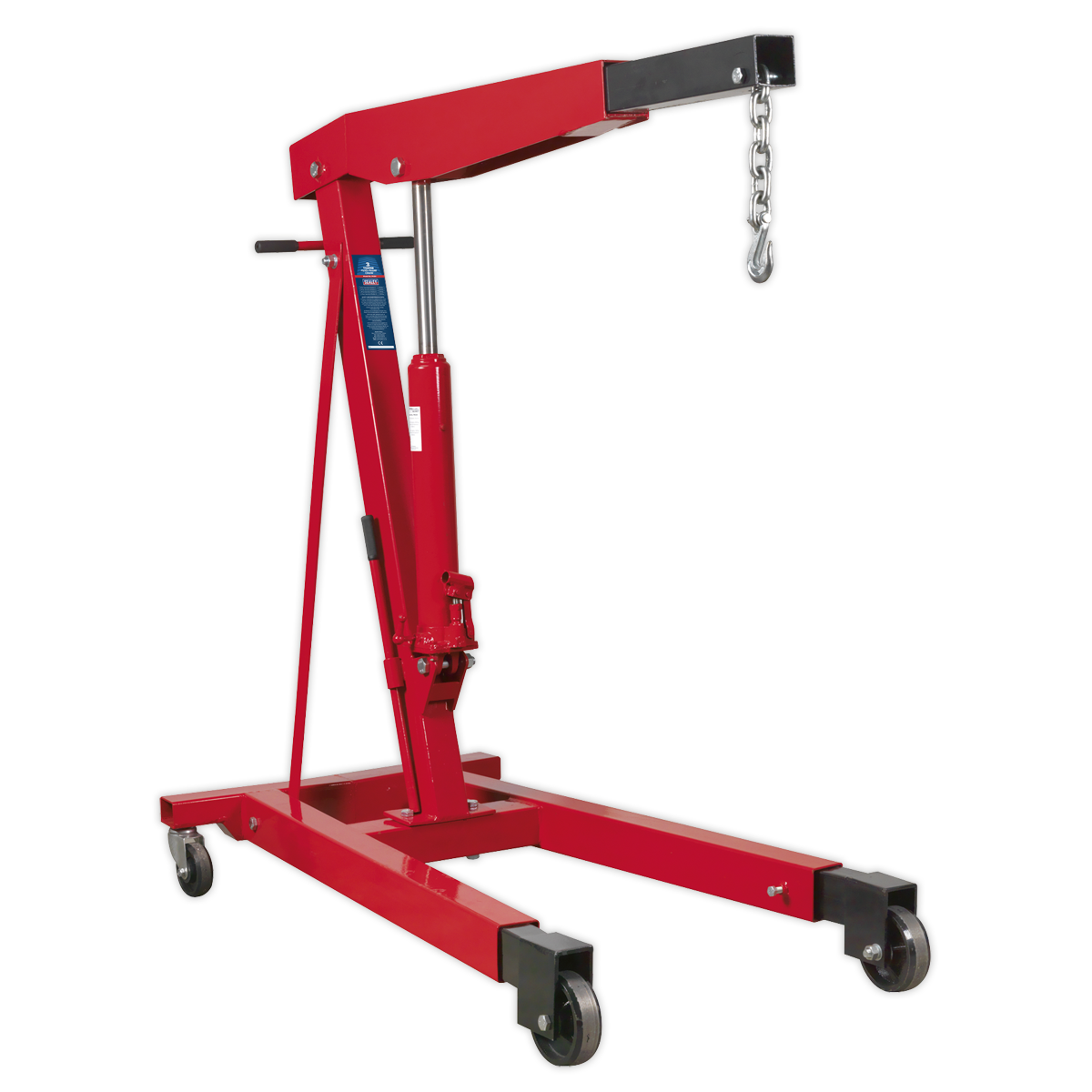

Lifting heavy engines and loads in commercial workshops demands equipment that won't compromise on capacity, stability, or safety. The Sealey PH30 fixed frame engine crane delivers a maximum lifting capacity of 3000kg at jib position 1 (1200mm extension), making it suited to heavy commercial, industrial, and workshop environments. The jib beam adjusts across four positions 1200mm, 1400mm, 1610mm, and 1820mm with corresponding capacities of 3000kg, 2000kg, 1500kg, and 1000kg respectively. Maximum lift height at jib position 1 is 1880mm. The extendable legs improve stability, particularly when operating at maximum jib extensions, while heavy-duty fixed front wheels and rear castors allow confident manoeuvrability around the workshop floor. Side-access to the pump ensures safe handling of heavy loads without awkward reaching. The unit weighs 155kg and is delivered in knock-down form with some self-assembly required. Please note this item is heavy extra assistance must be provided at the delivery point to help with safe delivery.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH30 |
|---|---|
| Brand | Sealey |
| Height Jib Down | 1610mm |
| Height Legs Folded | n/a |
| Height of Frame | 195mm |
| Length of Jib Position 1 | 1200mm |
| Length of Jib Position 2 | 1400mm |
| Length of Jib Position 3 | 1610mm |
| Length of Jib Position 4 | 1820mm |
| Length of Jib Position 5 | n/a |
| Lifting Capacity in Position 1 | 3000kg |
| Lifting Capacity in Position 2 | 2000kg |
| Lifting Capacity in Position 3 | 1500kg |
| Lifting Capacity in Position 4 | 1000kg |
| Lifting Capacity in Position 5 | n/a |
| Max. Lift Ht at Jib Position 1 | 1880mm |
| Max. Lift Ht at Jib Position 2 | 1970mm |
| Max. Lift Ht at Jib Position 3 | 2010mm |
| Max. Lift Ht at Jib Position 4 | 2220mm |
| Max. Lift Ht at Jib Position 5 | n/a |
| Nett Weight | 155kg |
| Note | *Legs Extended |
| Rear Width | 780mm |
| Width Front Frame | 855mm* |
| Width Inside Front Frame | 700mm* |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey PH5 Low Profile Engine Crane 0.5 Tonne
£161.31
£158.15
2% OFF
Free delivery in UK Mainland
|
Sealey SC10LR Engine Crane 1 Tonne Long Reach Extendable Legs
£402.89
£394.99
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO640 UNIVERSAL ENGINE / GEARBOX SUPPORT 240KG
£546.82
£536.10
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PH5 | SSC750 | SC10LR | VS5214 | GO640 | 13349 | 20129 | 09807 |
A. The PH30 lifts a maximum of 3000kg at jib position 1, which is a 1200mm extension. Capacity reduces across the four jib positions: 2000kg at position 2 (1400mm), 1500kg at position 3 (1610mm), and 1000kg at position 4 (1820mm).
A. The jib beam can be set in four positions: position 1 at 1200mm, position 2 at 1400mm, position 3 at 1610mm, and position 4 at 1820mm.
A. The maximum lift height at jib position 1 is 1880mm.

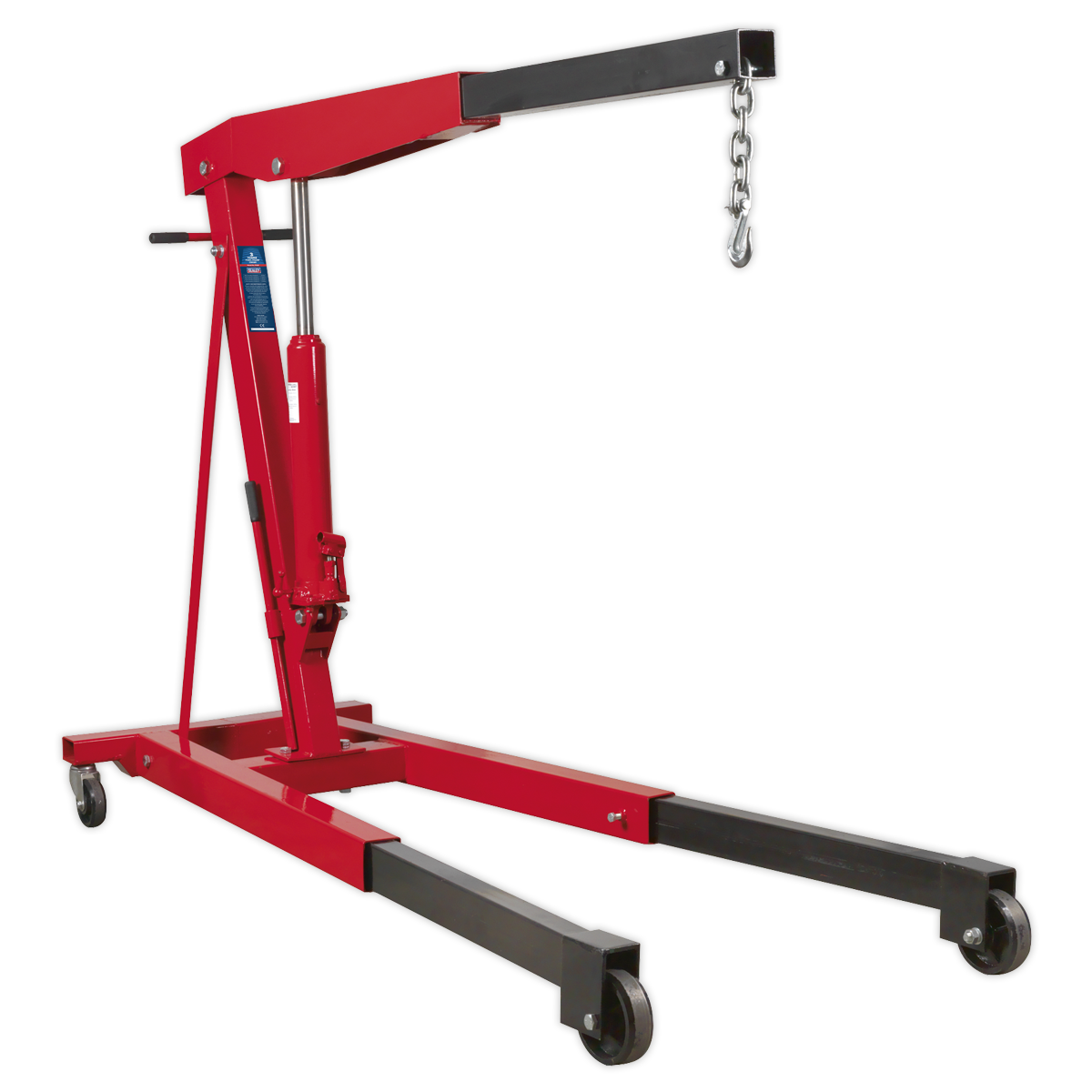

A. Yes. The PH30 features extendable heavy-duty legs designed to improve stability, particularly when operating at maximum jib extensions.
A. The PH30 weighs 155kg. Key dimensions include: overall length 1555mm, leg length extended 950mm, frame height 195mm, and jib height down 1610mm.
A. The PH30 is delivered in knock-down form to reduce freight cost, and some self-assembly is required. As this item is heavy, extra assistance must be provided at the delivery point to help with safe delivery.
A. The PH30 has one variant in the same product family: PH30.01. Please contact Parts for Machines for confirmation of the specific differentiator between these versions.
A. Yes. Two alternatives are listed: the Sealey PH5 and the Sealey SSC750, both of which perform a similar lifting function. Contact Parts for Machines for guidance on which best suits your requirements.
A. Yes. The PH30 is described as perfect for heavy commercial, industrial, and workshop use, with a 3000kg maximum capacity and heavy-duty construction to match those environments.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
