Product Number: SSC750

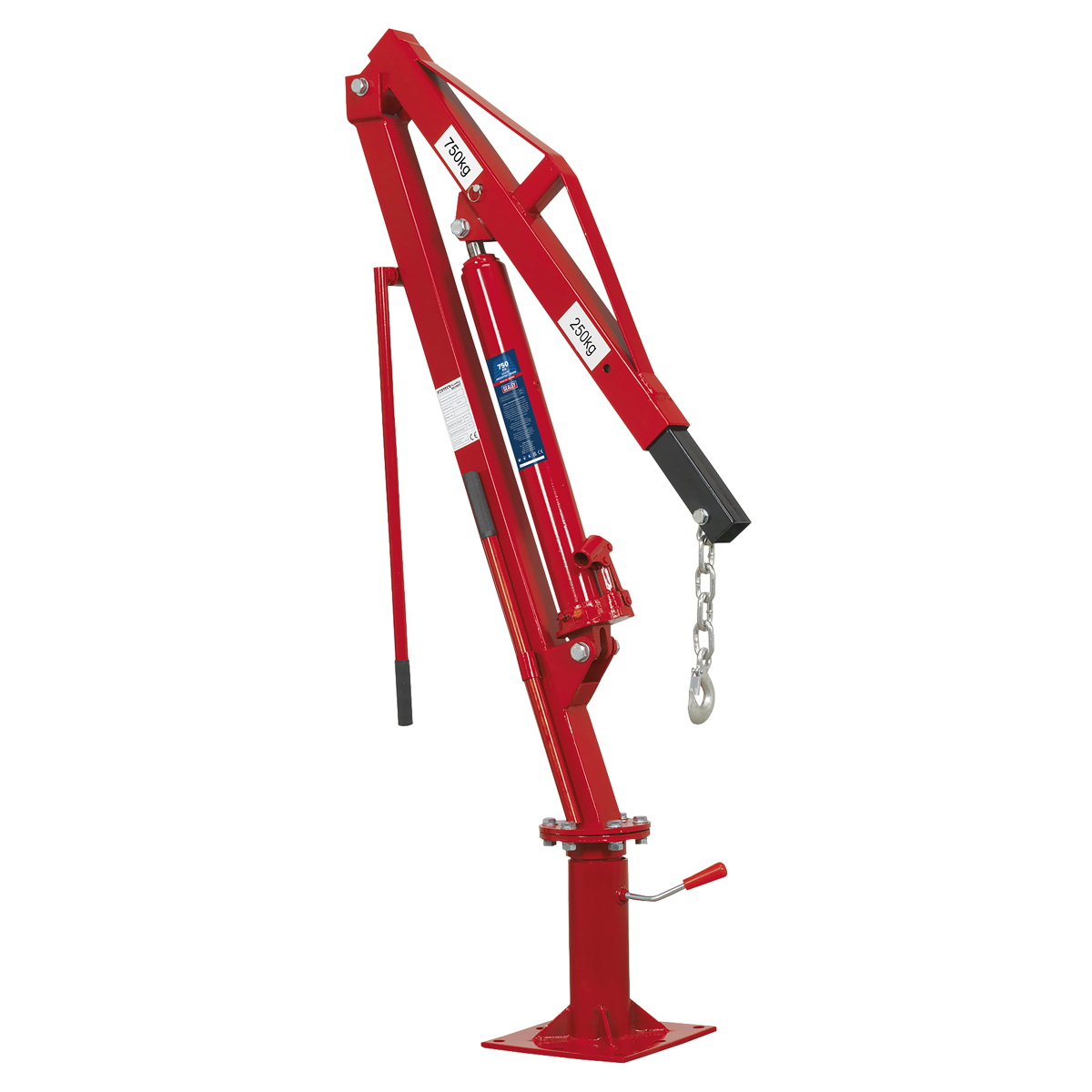

Shifting heavy loads from a fixed position demands a crane that can rotate freely, lock securely, and handle serious weight without compromise. The Sealey SSC750 Static Mounted Crane delivers exactly that, with a 750kg lifting capacity when the boom is in position 1 (jib length 825mm, max lift height 2060mm) and 250kg when fully extended to position 2 (jib length 1180mm, max lift height 2350mm). Built from heavy-duty steel with a powder coated finish for corrosion resistance, the SSC750 features a unique 360° swivel base with a threaded locking arm so you can rotate to any angle and lock the crane firmly in place when not in use. The dead man's control release valve allows fine, controlled lowering of loads for safe operation. It mounts onto any strong and stable surface including loading bays, 4x4s, flatbed trucks and trailers, and comes complete with heavy-duty chain and hook. The hook includes a safety clip to help prevent load slings from slipping during operation. Total jib-down height is 1530mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SSC750 |
|---|---|
| Brand | Sealey |
| Height Jib Down | 1530mm |
| Height Legs Folded | n/a |
| Height of Frame | n/a |
| Length Legs Extended | n/a |
| Length of Jib Position 1 | 825mm |
| Length of Jib Position 2 | 1180mm |
| Length of Jib Position 3 | n/a |
| Length of Jib Position 4 | n/a |
| Length of Jib Position 5 | n/a |
| Length | n/a |
| Lifting Capacity in Position 1 | 750kg |
| Lifting Capacity in Position 2 | 250kg |
| Lifting Capacity in Position 3 | n/a |
| Lifting Capacity in Position 4 | n/a |
| Lifting Capacity in Position 5 | n/a |
| Max. Lift Ht at Jib Position 1 | 2060mm |
| Max. Lift Ht at Jib Position 2 | 2350mm |
| Max. Lift Ht at Jib Position 3 | n/a |
| Max. Lift Ht at Jib Position 4 | n/a |
| Max. Lift Ht at Jib Position 5 | n/a |
| Nett Weight | 49kg |
| Rear Width | n/a |
| Width Front Frame | n/a |
| Width Inside Front Frame | n/a |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey PH30 Fixed Frame Engine Crane 3 Tonne Extendable Legs
£820.38
£804.29
2% OFF
Free delivery in UK Mainland
|
Sealey PH5 Low Profile Engine Crane 0.5 Tonne
£161.31
£158.15
2% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP83100, 1 Tonne Workshop Crane
£346.14
£336.06
3% OFF
Free delivery in UK Mainland
|
Sealey 1000TRQ Transmission Jack 1 Tonne Vertical Quick Lift
£528.91
£518.54
2% OFF
Free delivery in UK Mainland
|
SIP 03685 Foldable Engine Crane, Weight Capacity - 1 Tonne
£222.26
£217.90
2% OFF
Free delivery in UK Mainland
|
SIP 09808 WINNTEC Engine Crane, Weight Capacity - 1 Tonne
£581.51
£570.11
2% OFF
Free delivery in UK Mainland
|
SIP 03687 Foldable Engine Crane, Weight Capacity - 2 Tonne
£306.19
£300.19
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PH30 | PH5 | 8941083100 | PPL01 | 1000TRQ | 03685 | 09808 | 03687 |
A. The SSC750 has a maximum lifting capacity of 750kg when the lifting boom is in position 1 (jib length 825mm). When the boom is fully extended to position 2 (jib length 1180mm), the capacity is 250kg.
A. The crane mounts easily onto any strong and stable surface, including loading bays, 4x4s, flatbed trucks and trailers.
A. Yes. The SSC750 features a unique 360° swivel base and a threaded locking arm that allows the crane to be locked firmly in place when not in use or when the load is positioned.
A. At jib position 1 the maximum lift height is 2060mm, and at jib position 2 (fully extended) it is 2350mm. The overall height with the jib down is 1530mm.
A. A dead man's control release valve allows fine adjustment for safe, controlled lowering of the load.
A. Yes, the crane is supplied with a heavy-duty chain and hook. The hook features a safety clip to help prevent the load sling from slipping during use.
A. The crane is manufactured from heavy-duty steel with a powder coated finish for added corrosion resistance.
A. Yes. Alternatives include PH30 and PH5, which are different products offering similar lifting or hoisting functionality. Check each product listing for specifications to find the best match for your application.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
