Product Number: 13349

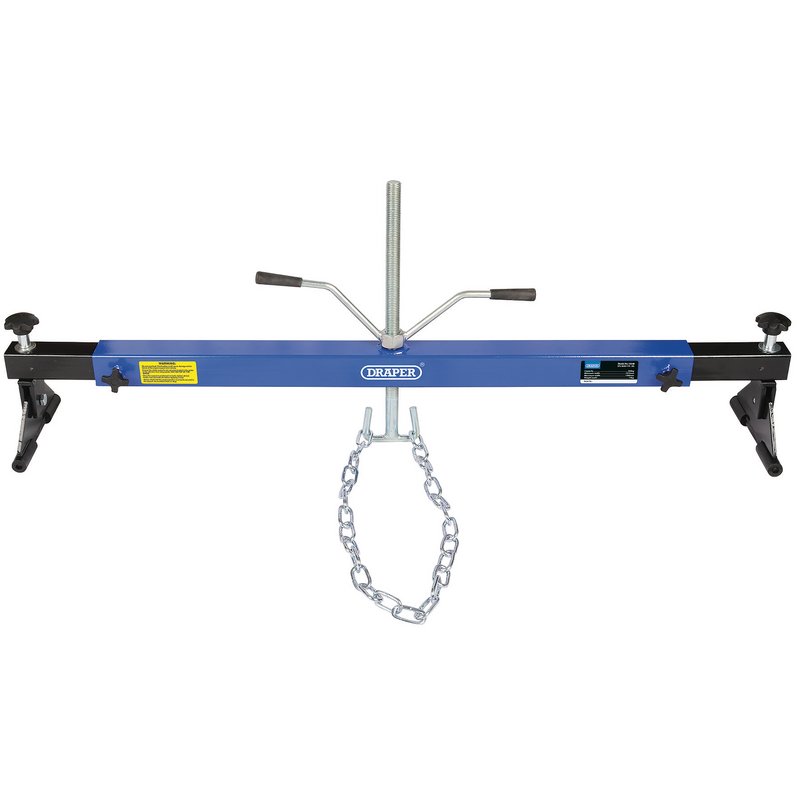

Replacing engine mounts demands precise engine positioning without risk of movement or paint damage — tasks for which the Draper 13349 Engine and Gearbox Support Beam is specifically designed. The beam spans across the engine bay, holding the engine securely in position during mount replacement and providing support when removing transmission components and gearboxes. Compatible with most cars and light commercial vehicles, the beam accommodates a wide range of bay widths through its adjustable outer extension clamps, which are fitted with rubber feet to prevent damage to paintwork during use. The beam adjusts from a minimum width of 1,015mm to a maximum of 1,380mm, with an overall beam length of 990mm. The adjustable screw height provides a range of 0–305mm, allowing precise vertical positioning of the load. The unit carries a rated capacity of 300kg and weighs 15kg. One chain is supplied as standard, providing a secure attachment point for the engine. Manufactured to EN13155 specification, the Draper 13349 meets the requirements of the relevant European standard for non-fixed load lifting attachments, making it a reliable choice for professional workshop use.
This engine support beam is designed to position the engine when replacing the engine mounts. It is also suitable for aiding the removal of transmission components and gearboxes. Compatible with most cars and light commercial vehicles. Adjustable outer extension clamps with rubber feet to prevent damage to the paintwork. Supplied with one chain.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 300kg |
|---|---|
| Min. width | 1,015mm |
| Max. width | 1,380mm |
| Adjustable screw height | 0-305mm |
| Overall beam length | 990mm |
| Chain quantity | 1 |
| Weight | 15kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey VS0110 Under Vehicle Engine/Gearbox Support
£217.15
£212.89
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO640 UNIVERSAL ENGINE / GEARBOX SUPPORT 240KG
£546.82
£536.10
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | VS0110 | GO640 | ES300 | VS5214 | ES350 | SPC2000 |
A. The Draper 13349 is designed to position the engine when replacing engine mounts. It is also suitable for aiding the removal of transmission components and gearboxes.
A. The beam is placed across the engine bay and adjusted to the correct width using the outer extension clamps. The adjustable screw height allows vertical positioning of the load, and the supplied chain is used to attach and support the engine securely.
A. The beam is compatible with most cars and light commercial vehicles.
A. The rated capacity is 300kg.
A. The beam adjusts from a minimum width of 1,015mm to a maximum width of 1,380mm. The adjustable screw height range is 0–305mm. The overall beam length is 990mm.
A. The unit is supplied with one chain.
A. Yes — it is manufactured to EN13155 specification, the European standard for non-fixed load lifting attachments.
