Product Number: PH5

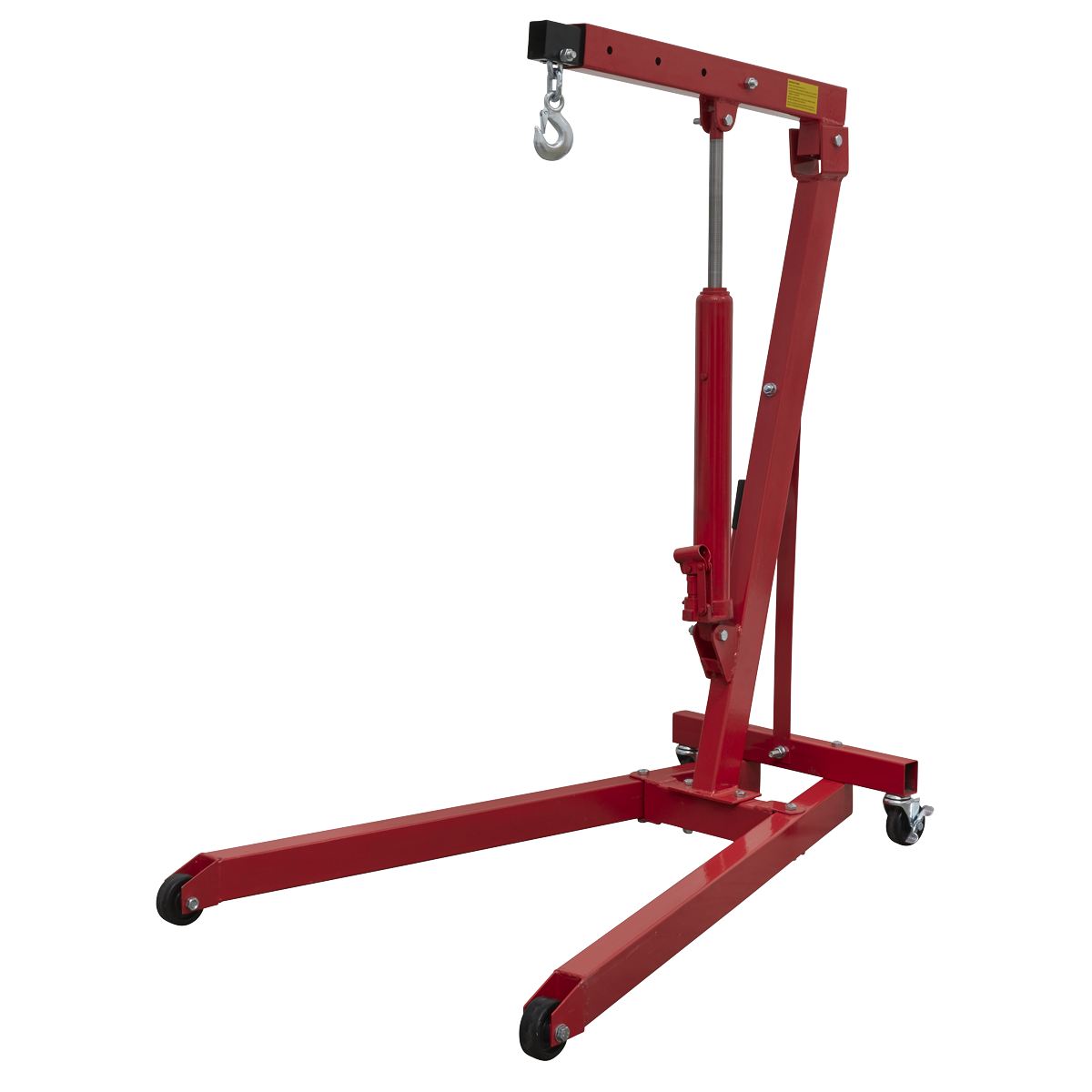

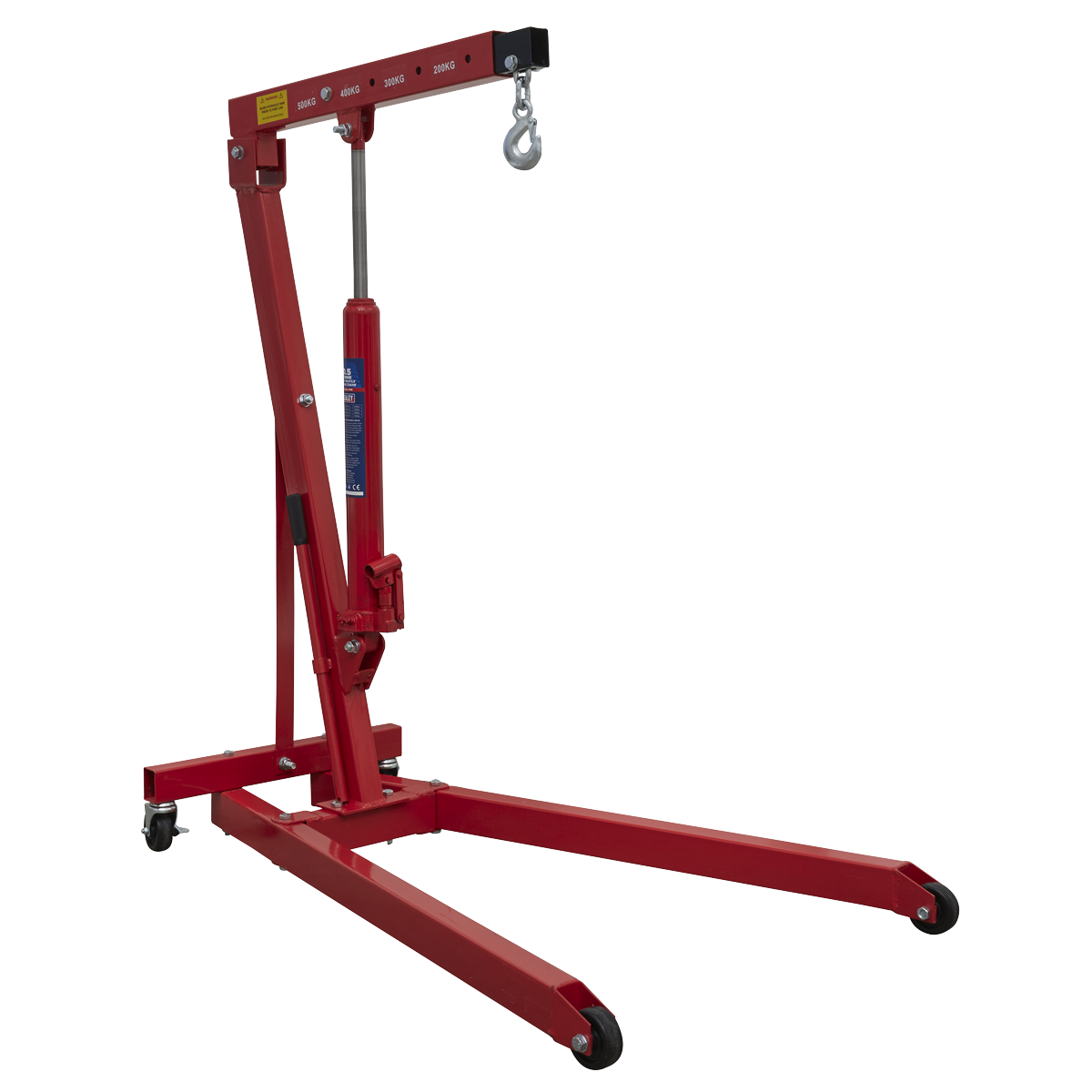

Working in tight spaces or on vehicles with limited ground clearance makes standard engine cranes impractical. The Sealey PH5 is a low entry engine crane with a frame height of just 100mm at the wheels, allowing it to access vehicles where conventional cranes cannot reach. Despite its capability, it weighs only 37kg, making it exceptionally lightweight and easy to manoeuvre around the workshop. Heavy-duty castors and side-access pump operation ensure safe, controlled handling of loads throughout the lift. The jib offers four positions with a maximum lifting capacity of 500kg at position 1 (jib length 750mm), reducing to 400kg at position 2 (860mm), 300kg at position 3 (980mm), and 200kg at position 4 (1100mm). Maximum lift height reaches 1950mm at jib position 1 and 2050mm at jib position 2. Overall length is 1210mm and jib-down height is 1330mm. Supplied in knock-down form; some self-assembly is required.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH5 |
|---|---|
| Brand | Sealey |
| Height Jib Down | 1330mm |
| Height Legs Folded | n/a |
| Height of Frame | 100mm |
| Length Legs Extended | n/a |
| Length of Jib Position 1 | 750mm |
| Length of Jib Position 2 | 860mm |
| Length of Jib Position 3 | 980mm |
| Length of Jib Position 4 | 1100mm |
| Length of Jib Position 5 | n/a |
| Length | 1210mm |
| Lifting Capacity in Position 1 | 500kg |
| Lifting Capacity in Position 2 | 400kg |
| Lifting Capacity in Position 3 | 300kg |
| Lifting Capacity in Position 4 | 200kg |
| Lifting Capacity in Position 5 | n/a |
| Max. Lift Ht at Jib Position 1 | 1950mm |
| Max. Lift Ht at Jib Position 2 | 2050mm |
| Max. Lift Ht at Jib Position 3 | 2150mm |
| Max. Lift Ht at Jib Position 4 | 2250mm |
| Max. Lift Ht at Jib Position 5 | n/a |
| Nett Weight | 37kg |
| Rear Width | 550mm |
| Width Front Frame | 800mm |
| Width Inside Front Frame | 700mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
PH5.10 | Sealey PH5.10 Hydraulic Ram for PH5 Engine Crane | 1 Unit |
£106.23
£104.11
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PH20 | SC10 | 20129 | 09807 | 03692 | 13349 |
| Type | Leveller | Leveller | Support | |||
| Brand | Sealey | Sealey | ||||
| Length (mm) | 1440 | 1390 | 015 | |||
| Model No | PH20 | SC10 | ||||
| Nett Weight | 77kg | 67kg | ||||
| Weight (kg) | 500 | 750 | 450 | 550 | 680 | 300 |
A. The PH5 has a maximum lifting capacity of 500kg at jib position 1 (750mm jib length). Capacity varies by jib position: 400kg at position 2, 300kg at position 3, and 200kg at position 4.
A. The PH5 has a frame height of only 100mm at the wheels, allowing it to slide under vehicles with low ground clearance that standard engine cranes cannot access.
A. The PH5 weighs only 37kg, making it lightweight and easy to manoeuvre.
A. The jib has four positions: position 1 is 750mm, position 2 is 860mm, position 3 is 980mm, and position 4 is 1100mm.
A. The maximum lift height is 1950mm at jib position 1 and 2050mm at jib position 2.

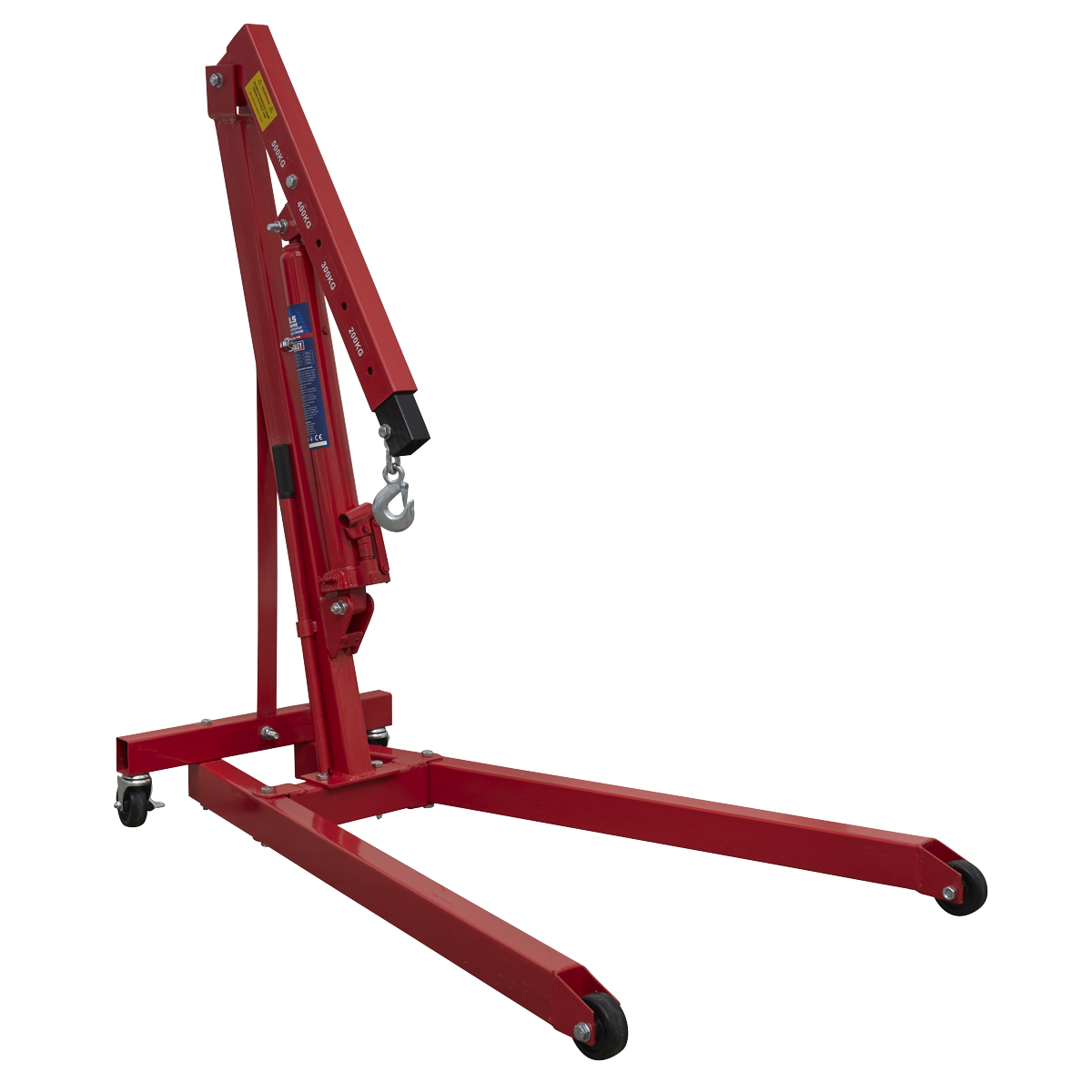

A. Yes. The PH5 is delivered in knock-down form and some self-assembly is required.
A. The PH5 is fitted with heavy-duty castors for safe load handling, and the pump is accessed from the side of the crane.
A. Yes. Alternatives include the PH30 and SSC750, which are different products offering similar engine lifting or support functions.
