Product Number: SC10LR
Variations

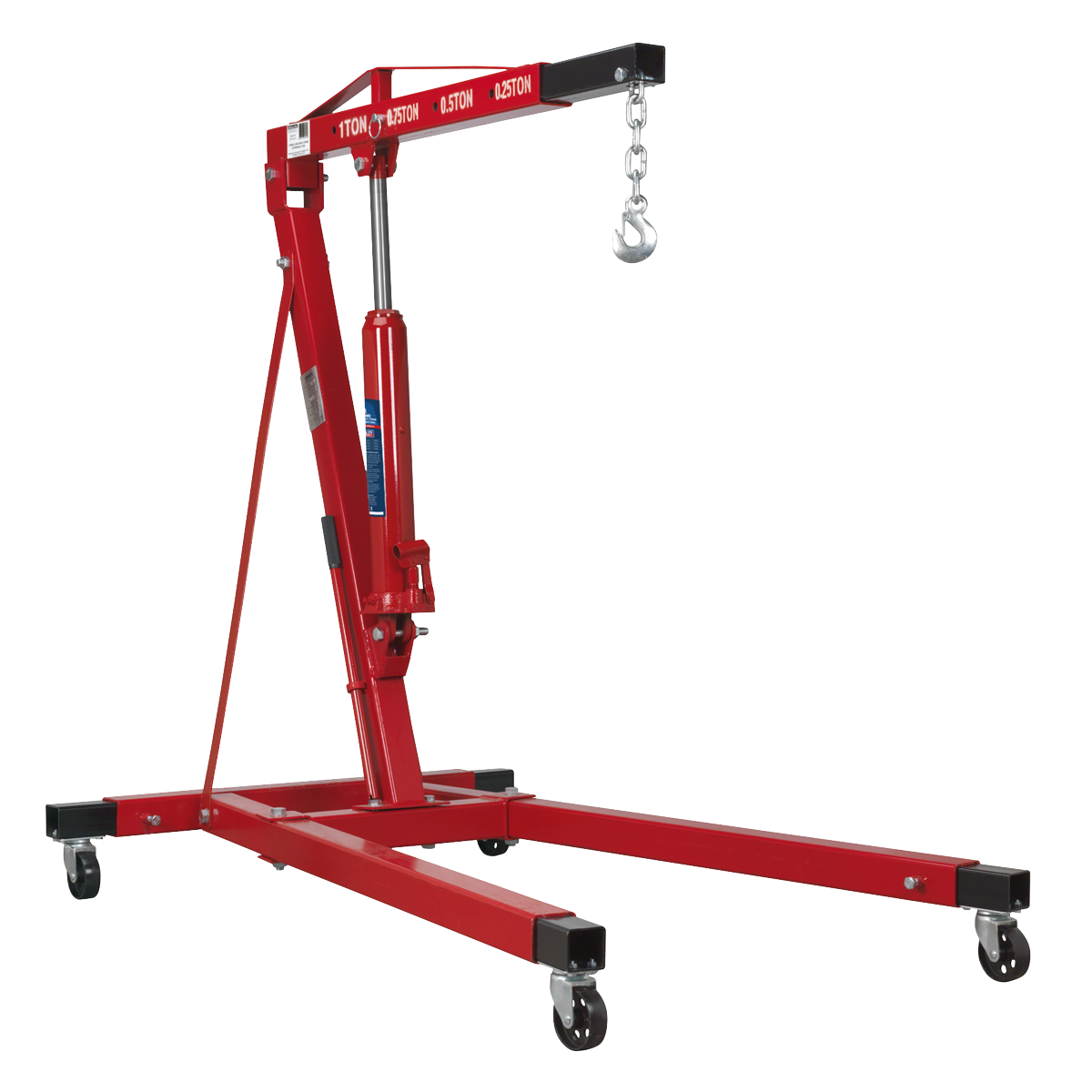

Lifting an engine without adequate reach or stability is a serious safety risk. The Sealey SC10LR Engine Crane addresses this with a maximum jib extension of 1447mm across four positions, giving you the reach needed to work safely around the engine bay. Extendable legs with heavy-duty front and rear castors provide improved stability, particularly at full jib extension. A side-mounted pump keeps the load in clear view at all times and features a removeable handle for convenience. When the job is done, the folding design makes transportation and storage straightforward. The crane is delivered in knock-down form for easier handling. Lifting capacity is 1000kg at jib position 1 (937mm), 750kg at position 2 (1107mm), 500kg at position 3 (1277mm), and 250kg at position 4 (1447mm). Maximum lift height at jib position 1 is 1750mm. Legs extend to 1600mm for maximum stability. Note: this item is heavy extra assistance must be provided at the delivery point to ensure safe handling.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SC10LR |
|---|---|
| Brand | Sealey |
| Height Jib Down | 1446mm |
| Height of Frame | 180mm |
| Length Legs Extended | 1600mm |
| Length of Jib Position 1 | 937mm |
| Length of Jib Position 2 | 1107mm |
| Length of Jib Position 3 | 1277mm |
| Length of Jib Position 4 | 1447mm |
| Length of Jib Position 5 | n/a |
| Length | 1450mm |
| Lifting Capacity in Position 1 | 1000kg |
| Lifting Capacity in Position 2 | 750kg |
| Lifting Capacity in Position 3 | 500kg |
| Lifting Capacity in Position 4 | 250kg |
| Lifting Capacity in Position 5 | n/a |
| Max. Lift Ht at Jib Position 1 | 1750mm |
| Max. Lift Ht at Jib Position 2 | 1850mm |
| Max. Lift Ht at Jib Position 3 | 1950mm |
| Max. Lift Ht at Jib Position 4 | 2050mm |
| Max. Lift Ht at Jib Position 5 | n/a |
| Nett Weight | 81.5kg |
| Rear Width | 860/1160mm |
| Width Front Frame | 690-720mm |
| Width Inside Front Frame | 381/605mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey Viking PFC101S Industrial Engine Crane 1 Tonne Folding
£832.86
£816.53
2% OFF
Free delivery in UK Mainland
|
Sealey PH30 Fixed Frame Engine Crane 3 Tonne Extendable Legs
£820.38
£804.29
2% OFF
Free delivery in UK Mainland
|
||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PFC101S | PH20 | SPC1000 | SPC2000 | PH30 | VS5214 | 03692 | 09807 | 20129 | 13349 |
A. The SC10LR has a maximum lifting capacity of 1000kg, achieved at jib position 1 (937mm reach). Capacity reduces as the jib is extended: 750kg at position 2 (1107mm), 500kg at position 3 (1277mm), and 250kg at position 4 (1447mm).
A. The jib extends to a maximum of 1447mm at position 4. The four positions are 937mm, 1107mm, 1277mm, and 1447mm.
A. The maximum lift height at jib position 1 is 1750mm.
A. The extendable legs reach 1600mm in length and are fitted with heavy-duty front and rear castors, providing improved stability particularly when operating at maximum jib extension.
A. The SC10LR features a side-mounted pump for easy access. Positioning it to the side helps maintain a clear sight line to the load being lifted. The handle is removeable.
A. Yes, the SC10LR has a folding design that makes it straightforward to transport and store when not in use. It is also delivered in knock-down form to reduce freight handling.
A. Height with jib down is 1446mm, frame height is 180mm, and overall length is 1450mm. Legs extend to 1600mm.
A. Yes. This item is heavy and extra assistance must be provided at the delivery point to help ensure safe delivery.
A. Yes, variants in the same engine crane family include the SC10 and SC10.V3-E. Each differs in specification - please check individual product listings for details. If you need help selecting the right version, contact Parts for Machines for confirmation.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
