Product Number: ES502

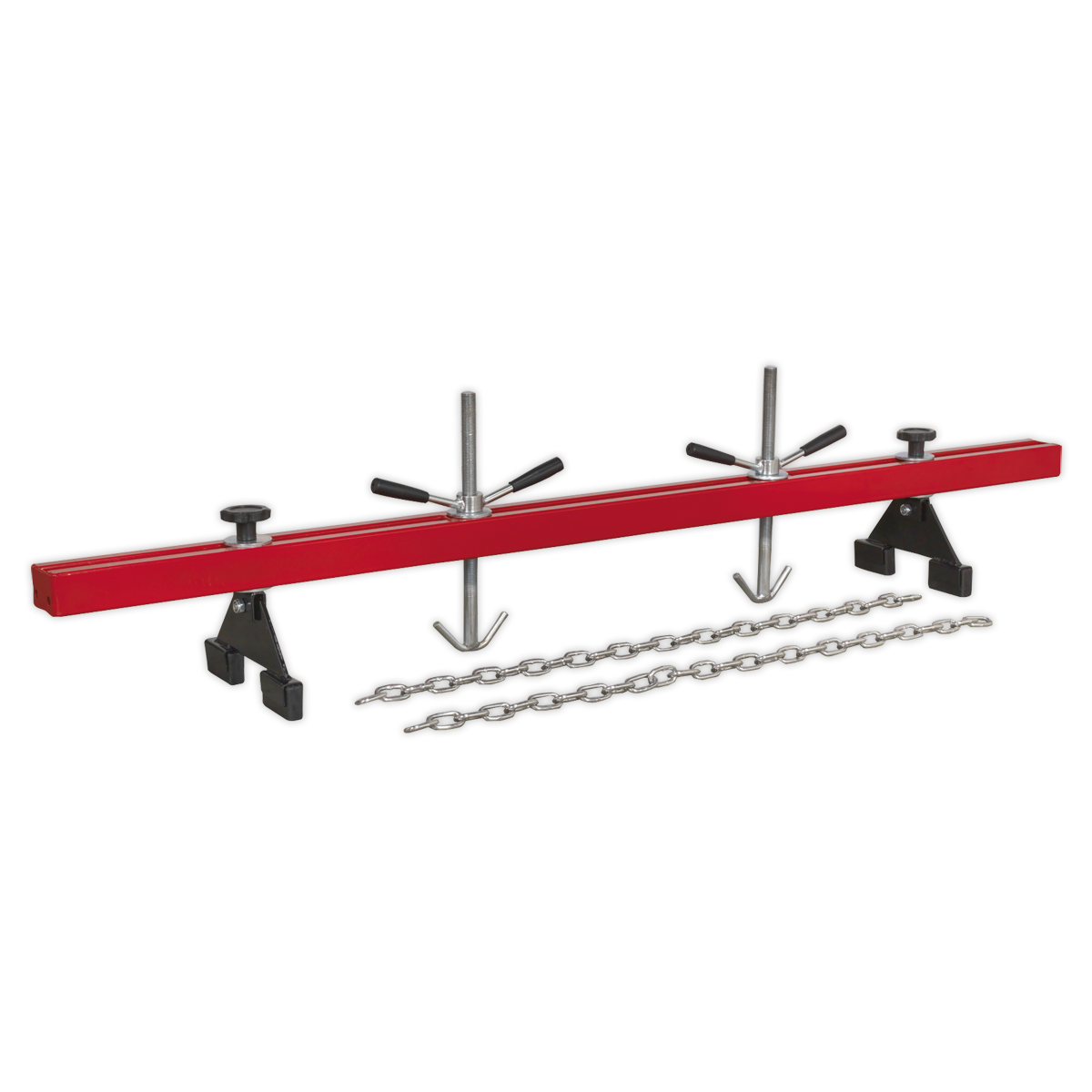

Keeping an engine accurately positioned during maintenance is critical a poorly supported unit can shift unexpectedly, making jobs like replacing anti-vibration mountings, removing a gearbox, or refitting body panels far more difficult and dangerous than they need to be. The Sealey ES502 Engine Support Beam addresses this directly, offering a 500kg capacity double support system designed to hold engines securely and in precisely the right position throughout the job. The beam adjusts to suit a wide range of engine bays, with a maximum width of 1580mm and a minimum width of 585mm, giving you genuine flexibility across different vehicle sizes. Fine positional adjustment is achieved through double screw and hook mechanisms, allowing accurate placement without guesswork. Rubber feet on the beam protect the vehicle and help keep the unit stable. A screw travel of 230mm provides further adjustment range. Two lengths of chain are supplied, so you have what you need to get started straight away. Whether you are working on engine mountings, transmission removal, or associated body panel work, the ES502 gives you a controlled, reliable way to keep the engine where it needs to be.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ES502 |
|---|---|
| Brand | Sealey |
| Capacity | 500kg |
| Maximum Width | 1580mm |
| Minimum Width | 585mm |
| Nett Weight | 14.44kg |
| Screw Travel | 230mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey ES600 Heavy-Duty Engine Support Beam 600kg
£204.35
£200.34
2% OFF
Free delivery in UK Mainland
|
Sealey ES601 Engine Support Beam with 360° Cross Beam 500kg
£191.55
£187.79
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | ES600 | ES500 | ES601 | 20129 | 09807 | 03692 | 13349 |
A. The ES502 has a 500kg capacity.
A. The beam adjusts between a minimum width of 585mm and a maximum width of 1580mm.
A. Fine adjustment is obtained using double screw and hook mechanisms, allowing accurate engine positioning.
A. The screw travel is 230mm.
A. The ES502 is supplied with two lengths of chain.
A. It is designed to support and accurately position engines during maintenance operations such as replacing anti-vibration mountings and certain body panels, and is also used as an aid for the removal of gearboxes and transmissions.
A. The beams are supported on rubber feet to help protect the vehicle and maintain stability during use.
A. Yes. Alternative versions in the Sealey engine support beam range include ES300, ES500, ES600, and ES601, each with different capacities and configurations.
A. Yes. Parts for Machines supplies genuine Sealey products.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
