Product Number: ES601

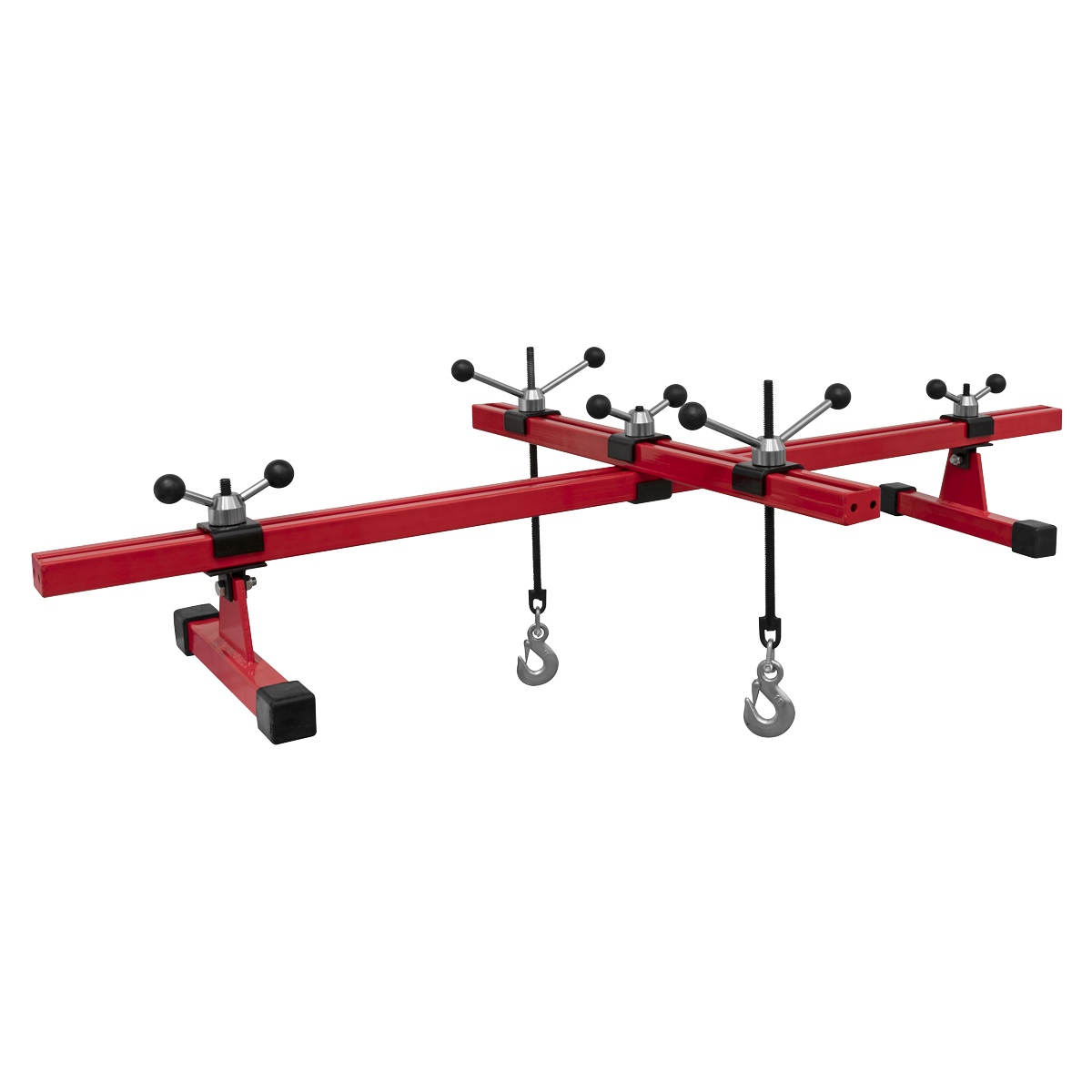

Removing or repositioning an engine, gearbox, or transmission without proper support creates a serious risk of injury and damage to surrounding components. The Sealey ES601 Engine Support Beam is designed to support and accurately position engines during maintenance operations including the replacement of anti-vibration mountings and certain body panels, and serves as an aid during the removal of gearboxes and transmissions. The main beam adjusts from 60mm to a maximum of 1680mm in width, while the cross beam adjusts from 60mm to 860mm. A key feature of the ES601 is its 360° adjustable rotating cross beam, which extends the range of support options compared to fixed-beam alternatives. Fine positional adjustment is achieved via screw and hook mechanisms, with screw hook lengths of 450mm and 350mm. The beams are supported on rubber feet to protect the vehicle and working surface. Rated to a 500kg capacity, the ES601 is a practical tool for both workshop professionals and serious enthusiasts.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ES601 |
|---|---|
| Brand | Sealey |
| Capacity | 500kg |
| Cross Beam Maximum Width | 860mm |
| Cross Beam Minimum Width | 60mm |
| Main Beam Maximum Width | 1680mm |
| Main Beam Minimum Width | 60mm |
| Nett Weight | 23kg |
| Screw Hook Lengths | 450/350mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey ES600 Heavy-Duty Engine Support Beam 600kg
£204.35
£200.34
2% OFF
Free delivery in UK Mainland
|
||||||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | ES502 | ES600 | ES500 | 20129 | 09807 | 03692 | 13349 |
| Brand | Sealey | Sealey | Sealey | ||||
| Length (mm) | 1580 | 875 | 1910 | 015 | |||
| Model No | ES502 | ES600 | ES500 | ||||
| Nett Weight | 14.44kg | 15.7kg | 12.9kg | ||||
| Weight (kg) | 500 | 600 | 500 | 450 | 550 | 680 | 300 |
A. The ES601 has a capacity of 500kg.
A. It is designed to support and assist in accurately positioning engines during maintenance operations such as replacing anti-vibration mountings and certain body panels. It is also used as an aid for the removal of gearboxes and transmissions.
A. The main beam adjusts from a minimum width of 60mm to a maximum of 1680mm. The cross beam adjusts from a minimum of 60mm to a maximum of 860mm.
A. The ES601 features a 360° adjustable rotating cross beam, which enables a greater range of support options when in use compared to a fixed cross beam arrangement.
A. Fine adjustment is obtained by using screw and hook mechanisms. The screw hook lengths are 450mm and 350mm.
A. Yes, the beams are supported on rubber feet.
A. The screw hook lengths are 450mm and 350mm.
A. Yes, alternatives that perform the same engine support function include the ES300, ES500, ES502, and ES600, which may differ in capacity, beam configuration, or features.
A. The main beam has a minimum width of 60mm and a maximum width of 1680mm.
A. Please contact us within 48 hours of delivery with photos. We will arrange a replacement or refund as appropriate.
