Product Number: ES600

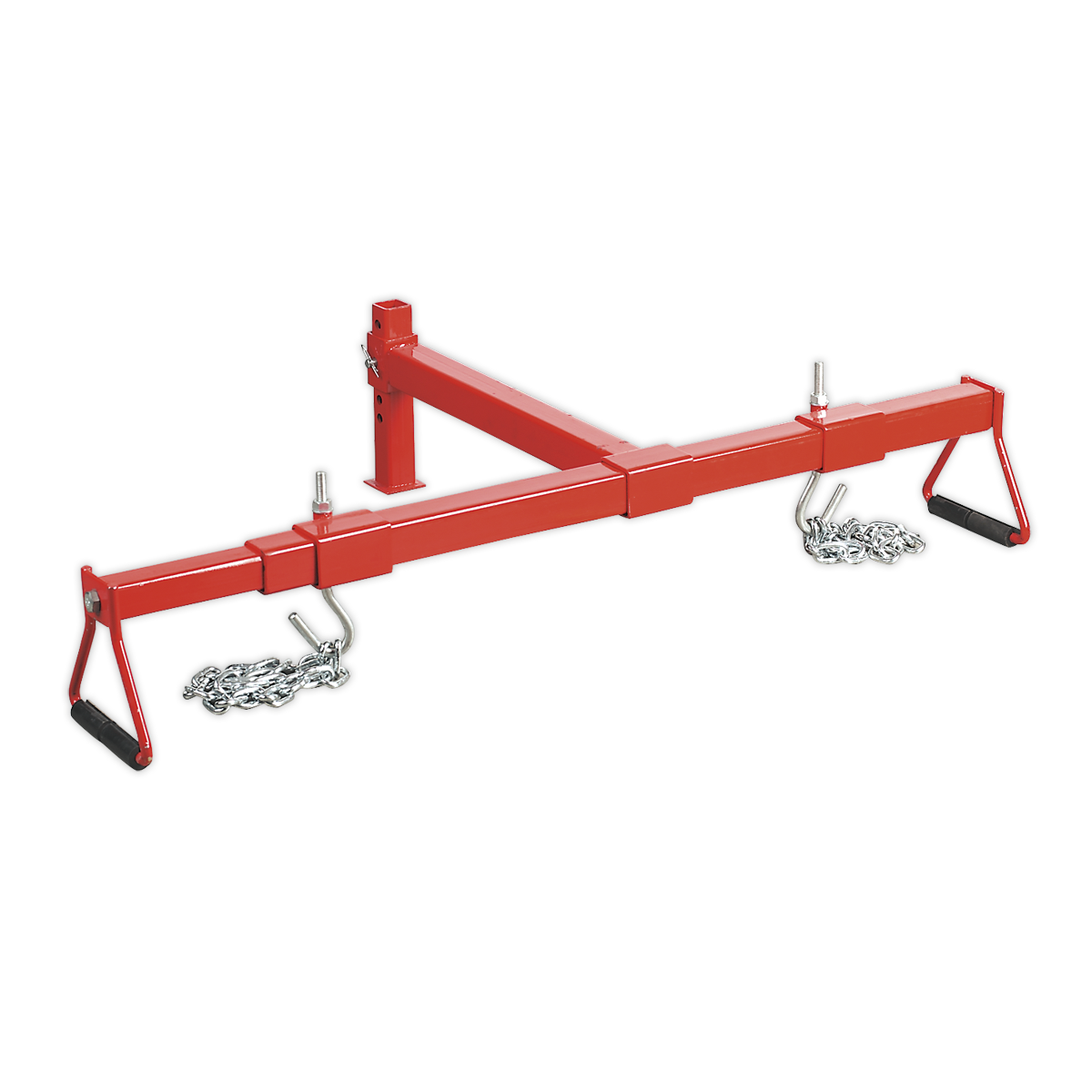

Heavy engines including six-cylinder units demand a support solution built to match. Standard beams may not offer the capacity or stability required, leaving you exposed to risk and making accurate positioning during engine mounting replacement or similar maintenance far harder than it should be. The Sealey ES600 is a heavy-duty engine support beam with a 600kg capacity, purpose-built for demanding applications. The beam spans a maximum width of 1210mm with a minimum width of 1010mm, and adjusts in length between 600mm and 875mm, giving practical flexibility across different engine bay sizes. It is supported on two rubber-covered feet to protect the vehicle and maintain stability, with a third height-adjustable foot that rests on the front of the vehicle for additional support and security. A screw travel of 65mm allows fine positional adjustment. Two lengths of chain are included, so the ES600 is ready to use straight away. Whether you are replacing engine mountings or carrying out other major maintenance on a heavy engine, the ES600 provides the capacity and control the job demands.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ES600 |
|---|---|
| Brand | Sealey |
| Capacity | 600kg |
| Maximum Length | 875mm* |
| Maximum Width* | 1210mm |
| Minimum Length | 600mm |
| Minimum Width | 1010mm |
| Nett Weight | 15.7kg |
| Note | *Allows for 200mm safety margin |
| Screw Travel | 65mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey ES601 Engine Support Beam with 360° Cross Beam 500kg
£191.55
£187.79
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO640 UNIVERSAL ENGINE / GEARBOX SUPPORT 240KG
£546.82
£536.10
2% OFF
Free delivery in UK Mainland
|
||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | ES500 | ES502 | ES601 | VS5214 | 09807 | 03692 | 20129 | GO640 |
A. The ES600 has a heavy-duty capacity of 600kg.
A. Yes. The ES600 is specifically described as suitable for heavy engines including 6-cylinder variants.
A. The beam adjusts between a minimum width of 1010mm and a maximum width of 1210mm, and between a minimum length of 600mm and a maximum length of 875mm.
A. The beam is supported on two rubber-covered feet, with a third height-adjustable foot resting on the front of the vehicle for added security and stability.
A. The screw travel is 65mm.
A. The ES600 is supplied with two lengths of chain.
A. It is designed to support the engine during maintenance operations including engine mounting replacement.
A. The ES600 does not have variants within its own product line, but alternatives in the Sealey engine support beam range include ES300, ES500, ES502, and ES601, each with different capacities and configurations.
