A fixed inflator is installed once and then lives with whatever was chosen, so mounting comes first. A wall mounted unit keeps the floor clear and suits a bay with a solid wall in the right place. A pedestal unit stands where there is no wall, which is the usual answer on a forecourt island.
Display order is a small detail that matters daily. These units show pressure in both psi and bar, and the model determines which is shown first. An operator working in psi all day and reading a bar-first display makes mistakes that a psi-first unit would not invite. Dual screen bodies show both units at once, which removes the question entirely where operators work in either.
Pressure range separates the general units from the tyreshop machines. The A10 and A20 run 0 to 145psi and 0 to 10 bar. The D12 range covers 10 bar with a 16 bar version above it, which reaches commercial tyre pressures a car unit does not. The A10 and A20 carry the same range in wall and pedestal form, so the mounting choice does not restrict the pressure available.

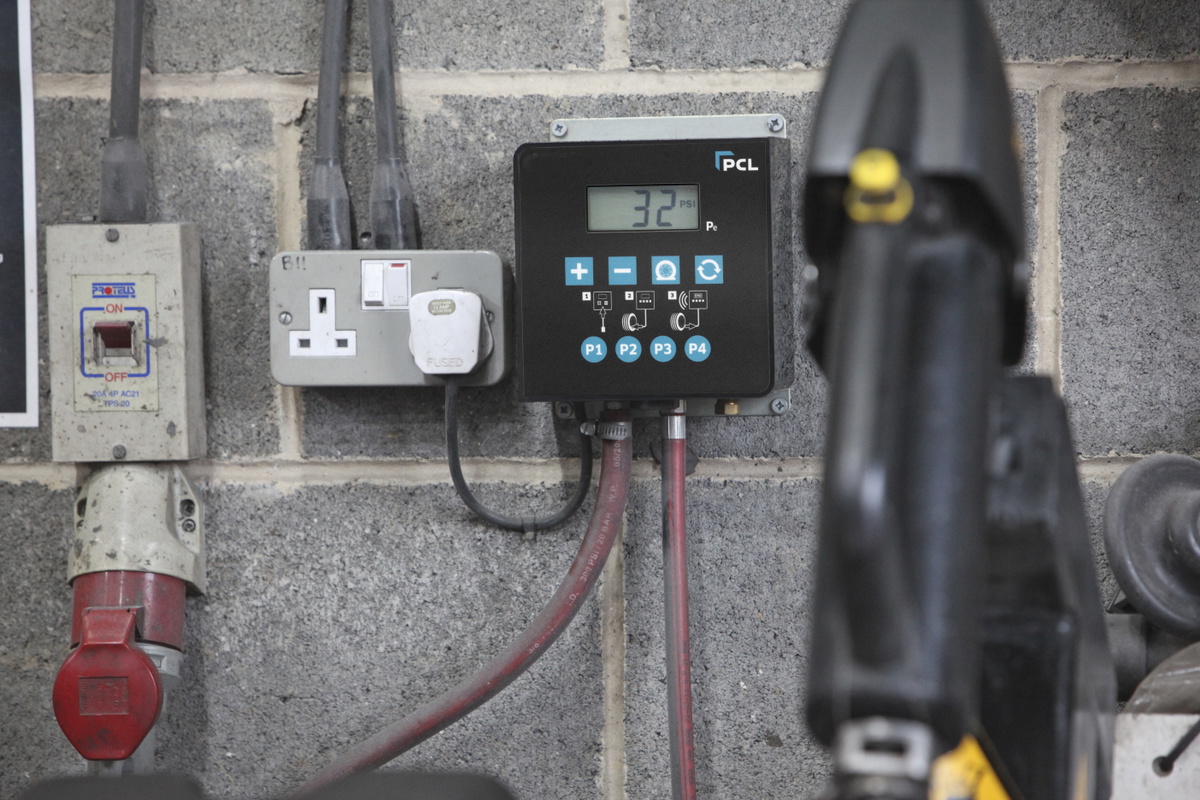

The ACCURA QUBE units run at 230V and add preset buttons and a Bluetooth-enabled variant, which suits a shop setting the same pressures repeatedly. A caged version of the D12 protects the unit where it is exposed. Send the mounting position and pressures to 07754288583 on WhatsApp. Display resolution and accuracy are stated on the lines that carry them rather than across the whole range.
| Brand | PCL |
|---|---|
| Number QUBE1 | 12v (No plug) |
| ■ | QUBE6 installed in a mobile tyre |
| Shipping Weight (kg) | 1.899 |
| Display Type | Digital |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 3.34 |
| ProductLength | 150.0mm |
| ProductWidth | 150.0mm |
| ProductHeight | 100.0mm |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 3.131 |
| ProductLength | 150.0mm |
| ProductWidth | 150.0mm |
| ProductHeight | 100.0mm |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 3.179 |
| ProductLength | 150.0mm |
| ProductWidth | 150.0mm |
| ProductHeight | 100.0mm |
| Brand | PCL |
|---|---|
| Shipping Weight (kg) | 3.15 |
| Display Type | Digital |
| Hose Length | 5 m / 16 ft |
| Tyre Valve Connection | Euro Clip-on |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 3.131 |
| ProductLength | 150.0mm |
| ProductWidth | 150.0mm |
| ProductHeight | 100.0mm |
| Brand | PCL |
|---|---|
| EAN | 5014875157535 |
| Brand | PCL |
|---|---|
| EAN | 5014875172439 |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |
| Brand | PCL |
|---|---|
| Number | WM3H05 |
| Identity | Push Button Wall Meter 0-140 psi & 0-10 bar 8.5m PU Hose & Euro Connector |
| Pressure Range | 0-140 psi / 0-10 bar |
| Hose Length | 8.5 m |

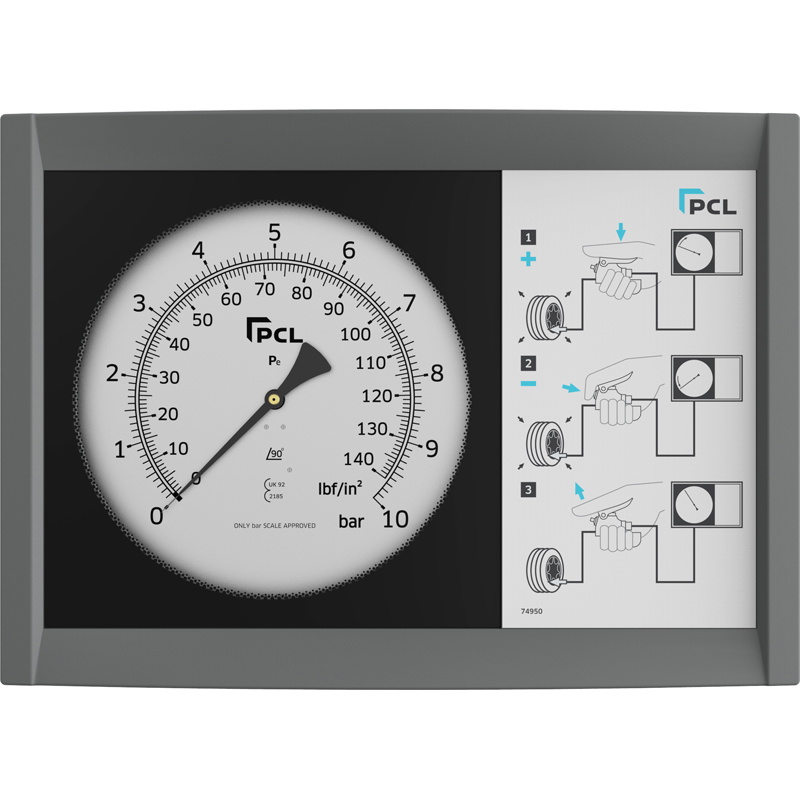

| Brand | PCL |
|---|---|
| Number | WM2H01 |
| Identity | Wall Meter 0-140 psi & 0-10 bar 7.6m Twin Twisted Hose & THO Connector |
| Pressure Range | 0-140 psi / 0-10 bar |
| Hose Length | 7.6 m |
| Brand | PCL |
|---|---|
| Number | WM2H02 |
| Identity | Wall Meter 0-140 psi & 0-10 bar 7.6m Twin Twisted Hose & Straight Air Connector |
| Pressure Range | 0-140 psi / 0-10 bar |
| Hose Length | 7.6 m |
| Brand | PCL |
|---|---|
| Number | WM1H01 |
| Identity | Wall Meter 0-140 psi & 0-10 bar 7.6m Co-Axial Hose & THO Connector |
| Pressure Range | 0-140 psi / 0-10 bar |
| Hose Length | 7.6 m |
| Brand | PCL |
|---|---|
| Number | WM1H02 |
| Identity | Wall Meter 0-140 psi & 0-10 bar 7.6m Co-Axial Hose & Straight Air Connector (CH2 |
| Pressure Range | 0-140 psi / 0-10 bar |
| Hose Length | 7.6 m |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 530mm |
| BoxWidth | 340mm |
| BoxHeight | 1560.0mm |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |
| Brand | PCL |
|---|---|
| Shipping Weight (kg) | 9.627 |
| Approvals | German PTB 18.08/04.01 (Single and Dual Screen), French F-06-H-157 (Dual Screen), Portuguese 245.30.04.3.14 (Single Screen) |
| Display Type | Digital |
| Hose Length | 7.6 m |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |

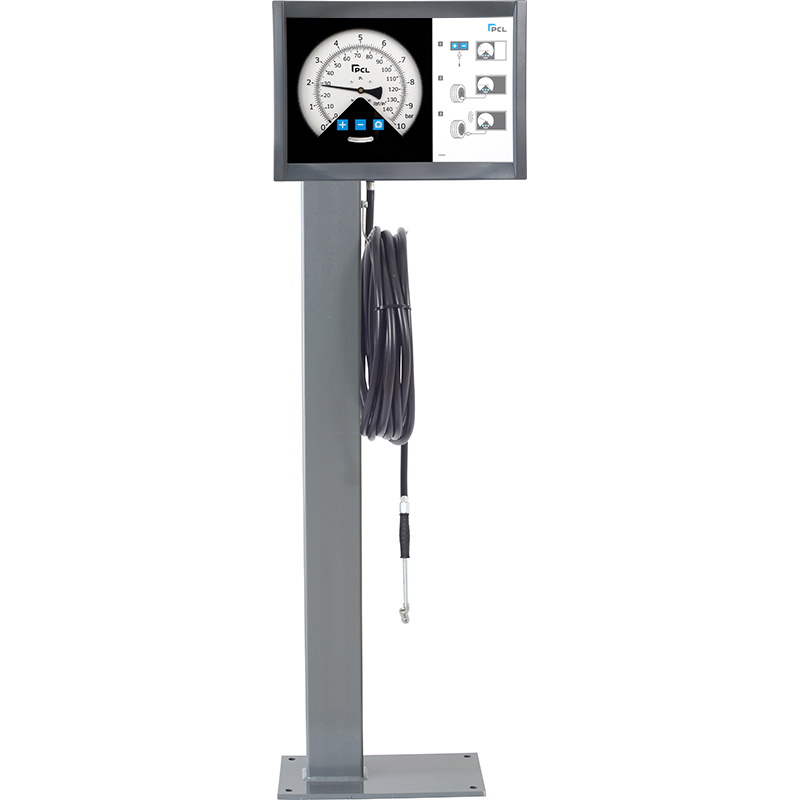

| Brand | PCL |
|---|---|
| Number | A20S20T |
| Identity | A20 Tyre Inflator Pedestal Mounted 0-145 psi & 0-10 bar |
| Pressure Range | 0-145 psi / 0-10 bar |
| Origin | PCL, Sheffield, UK (HORNGROUP) |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |

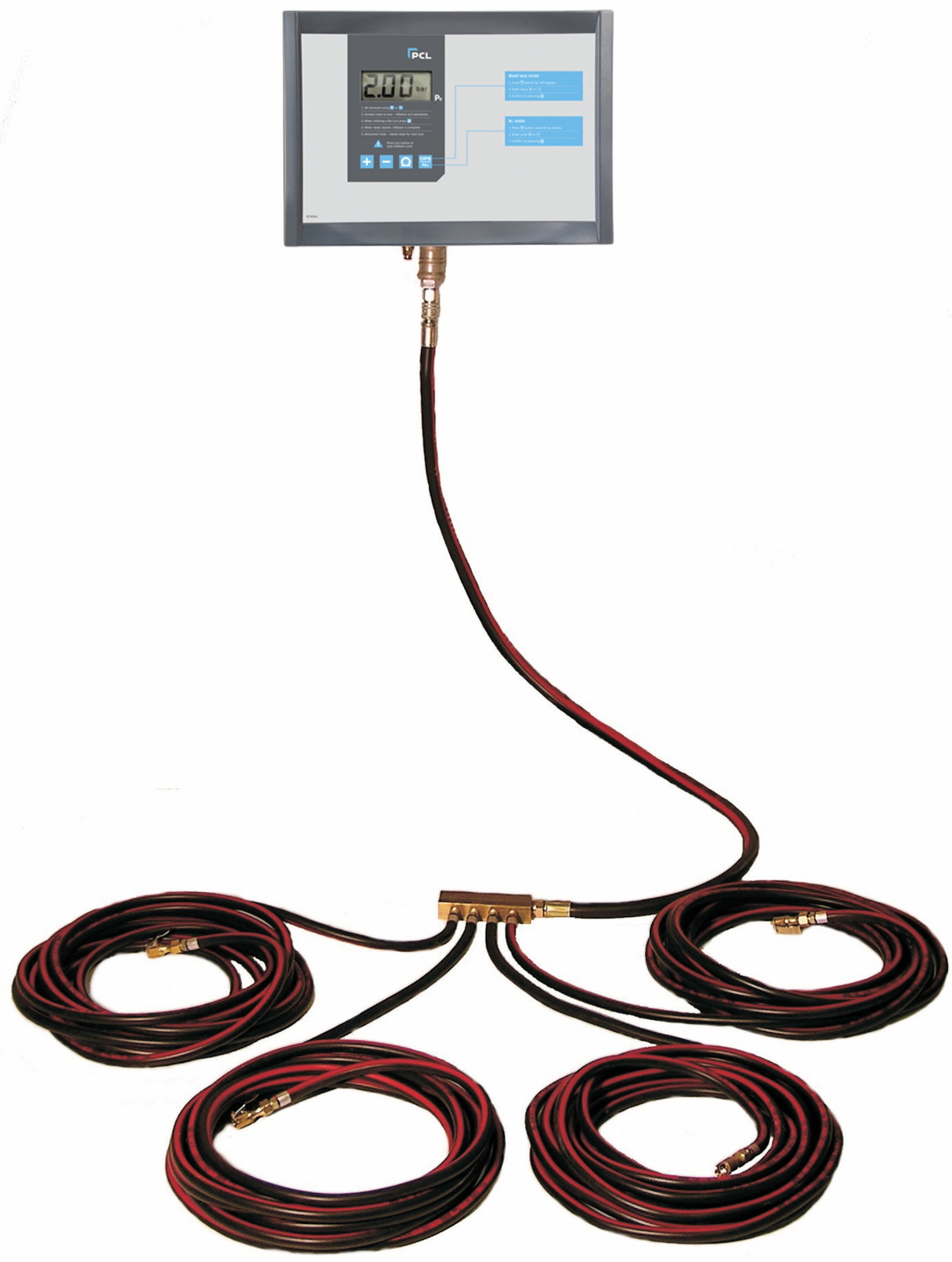

| Brand | PCL |
|---|---|
| Number | D13ST50C |
| Range | ACCURA 13 Tyreshop Preset Tyre Inflator |
| Mounting | Wall (pedestal option) |
| Display Order | bar/psi |
| Brand | PCL |
|---|---|
| Number | D13SS50C |
| Range | ACCURA 13 Tyreshop Preset Tyre Inflator |
| Mounting | Wall (pedestal option) |
| Display Order | psi/bar |
| Brand | PCL |
|---|---|
| Number QUBE1 | 5 m / 16 ft Euro clip-on |
| Shipping Weight (kg) | 3.34 |
| Display Type | Digital |
| Hose Length | 5 m / 16 ft |
| Brand | PCL |
|---|---|
| Shipping Weight (kg) | 2.05 |
| Display Type | Digital |
| Calibration | 0-174 psi / 0-12 bar |
| Display Resolution | 1 psi / 0.1 bar |
| Brand | PCL |
|---|---|
| Shipping Weight (kg) | 3.34 |
| Display Type | Digital |
| Hose Length | 5 m / 16 ft |
| Tyre Valve Connection | Euro Clip-on |
| Brand | PCL |
|---|---|
| Shipping Weight (kg) | 3.34 |
| Display Type | Digital |
| Hose Length | 5 m / 16 ft |
| Tyre Valve Connection | Euro Clip-on |
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 9.627 |
| BoxLength | 525mm |
| BoxWidth | 410mm |
| BoxHeight | 245.0mm |
