Product Number: RE300

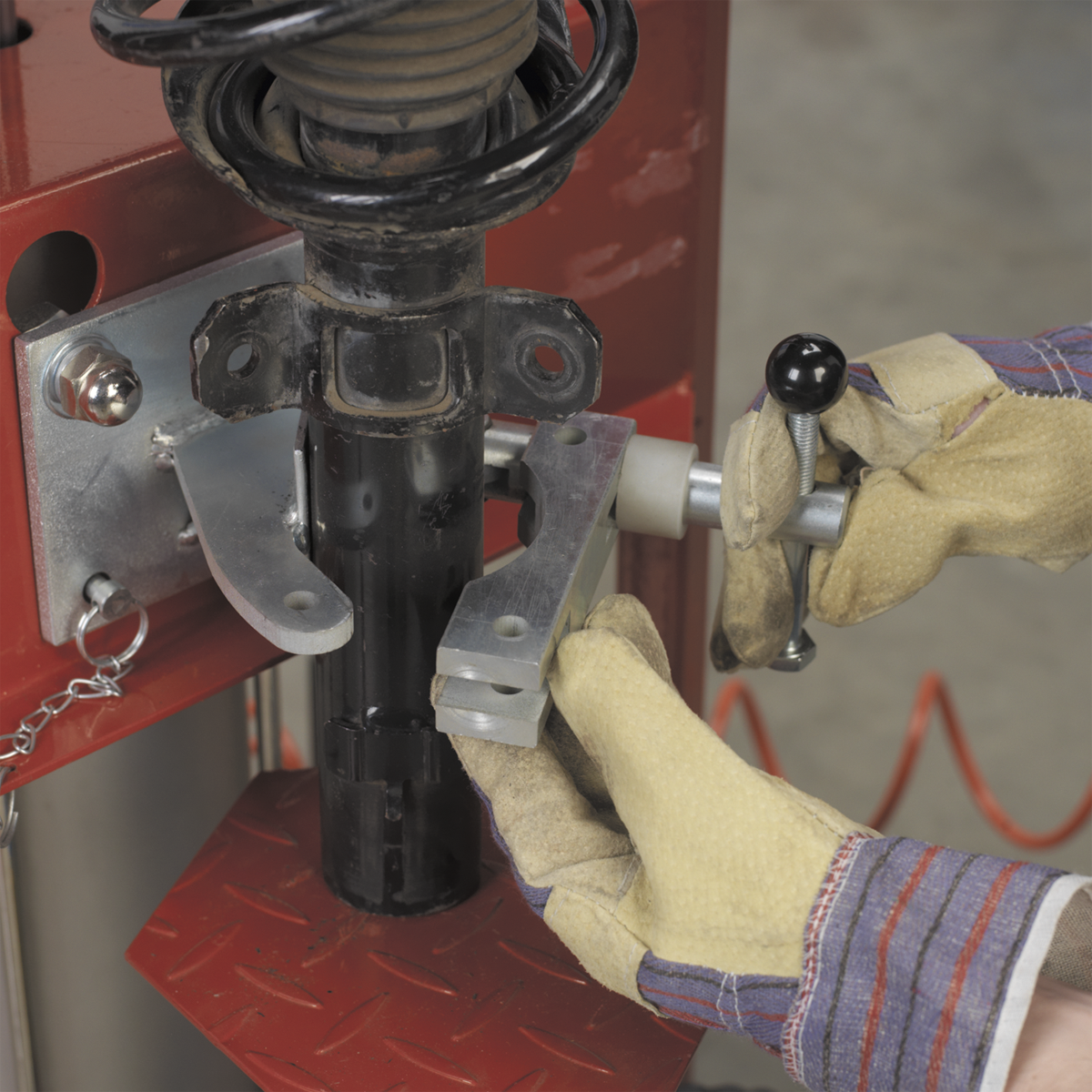

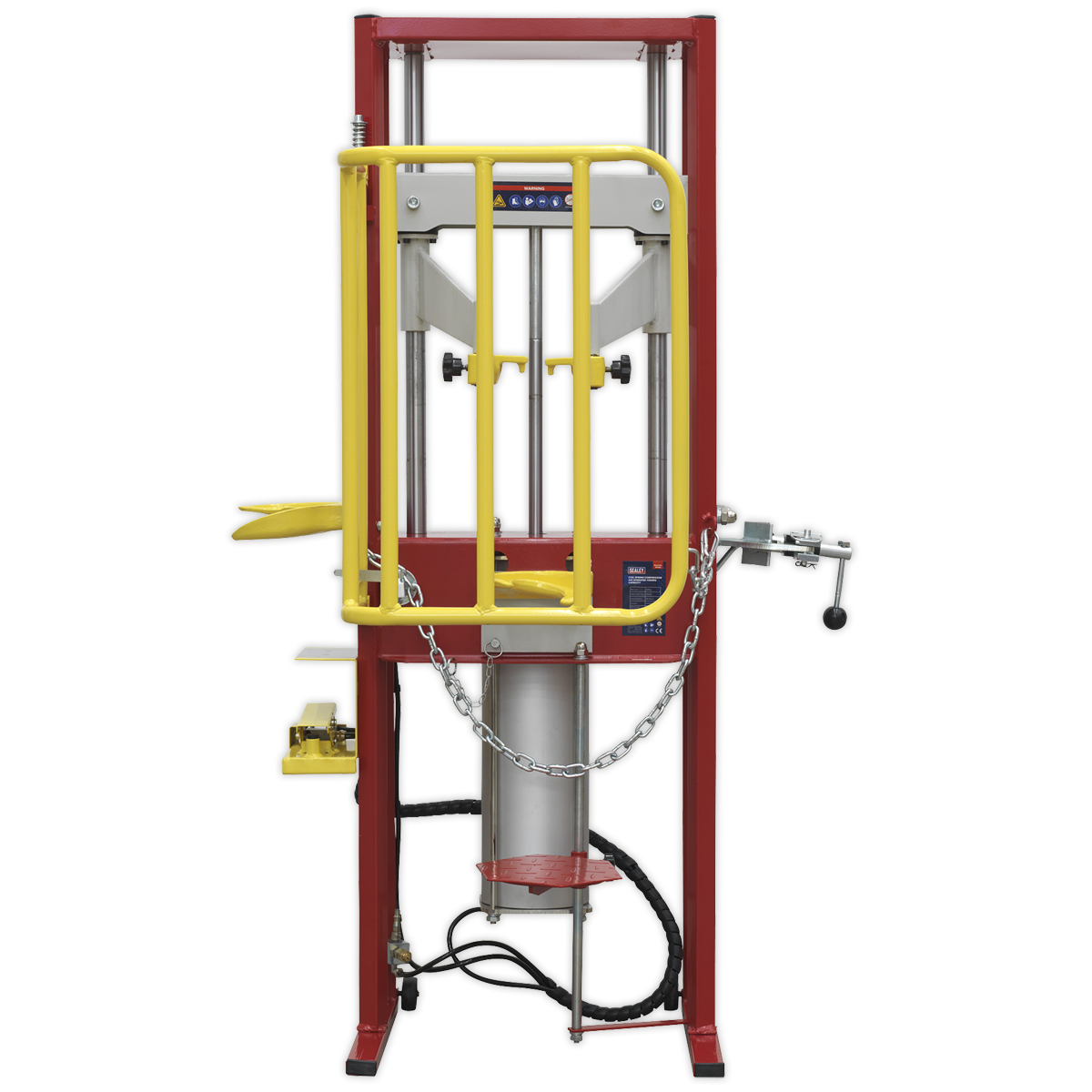

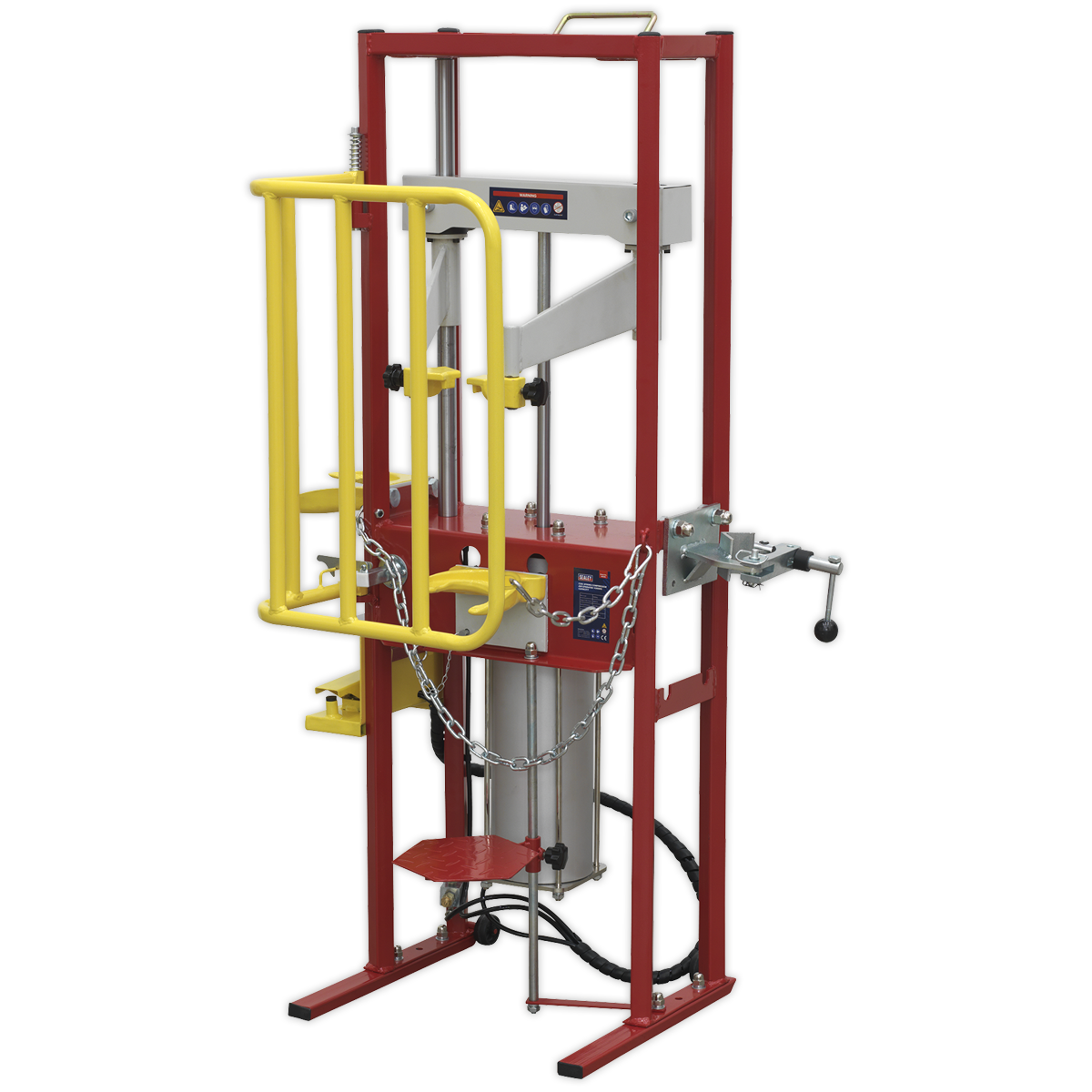

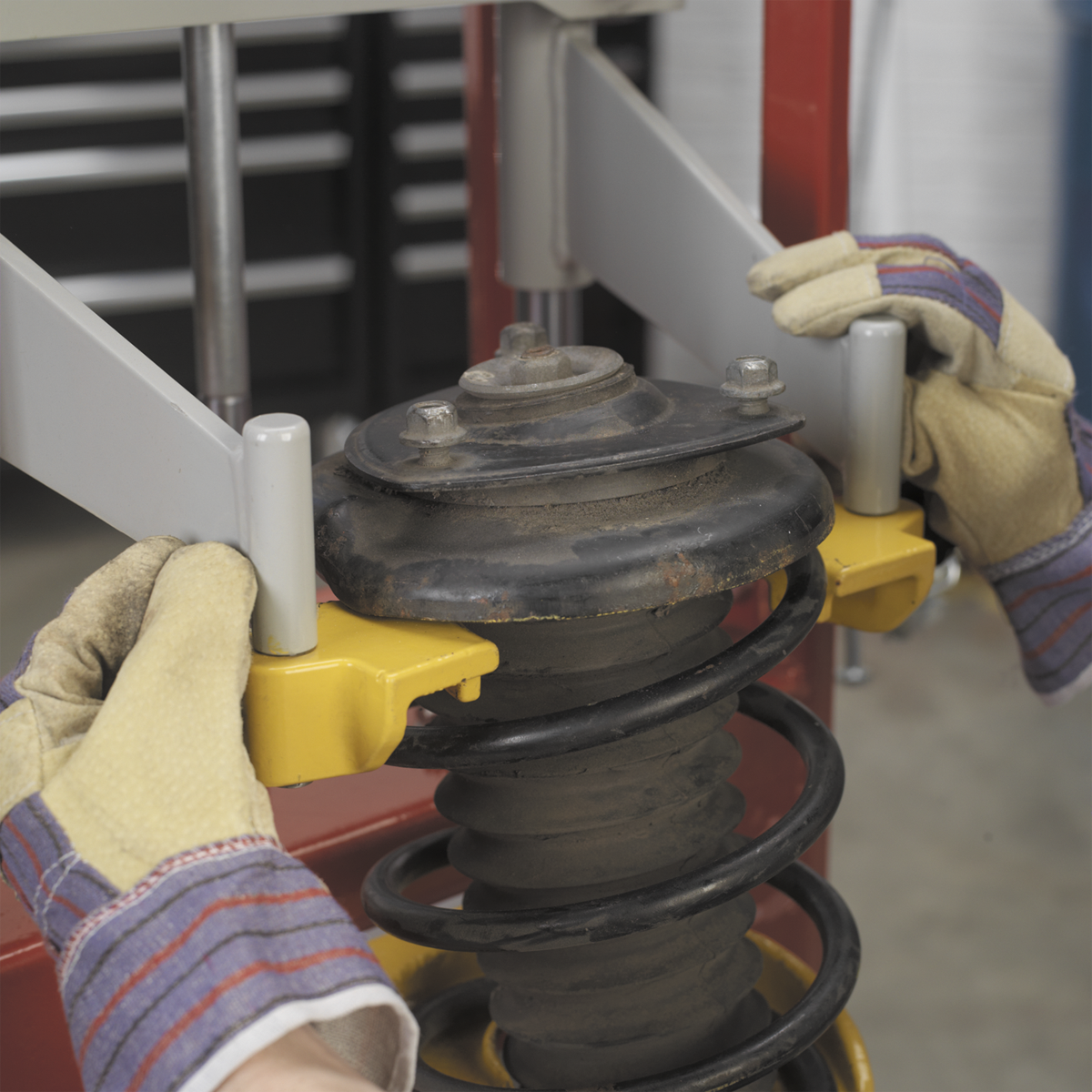

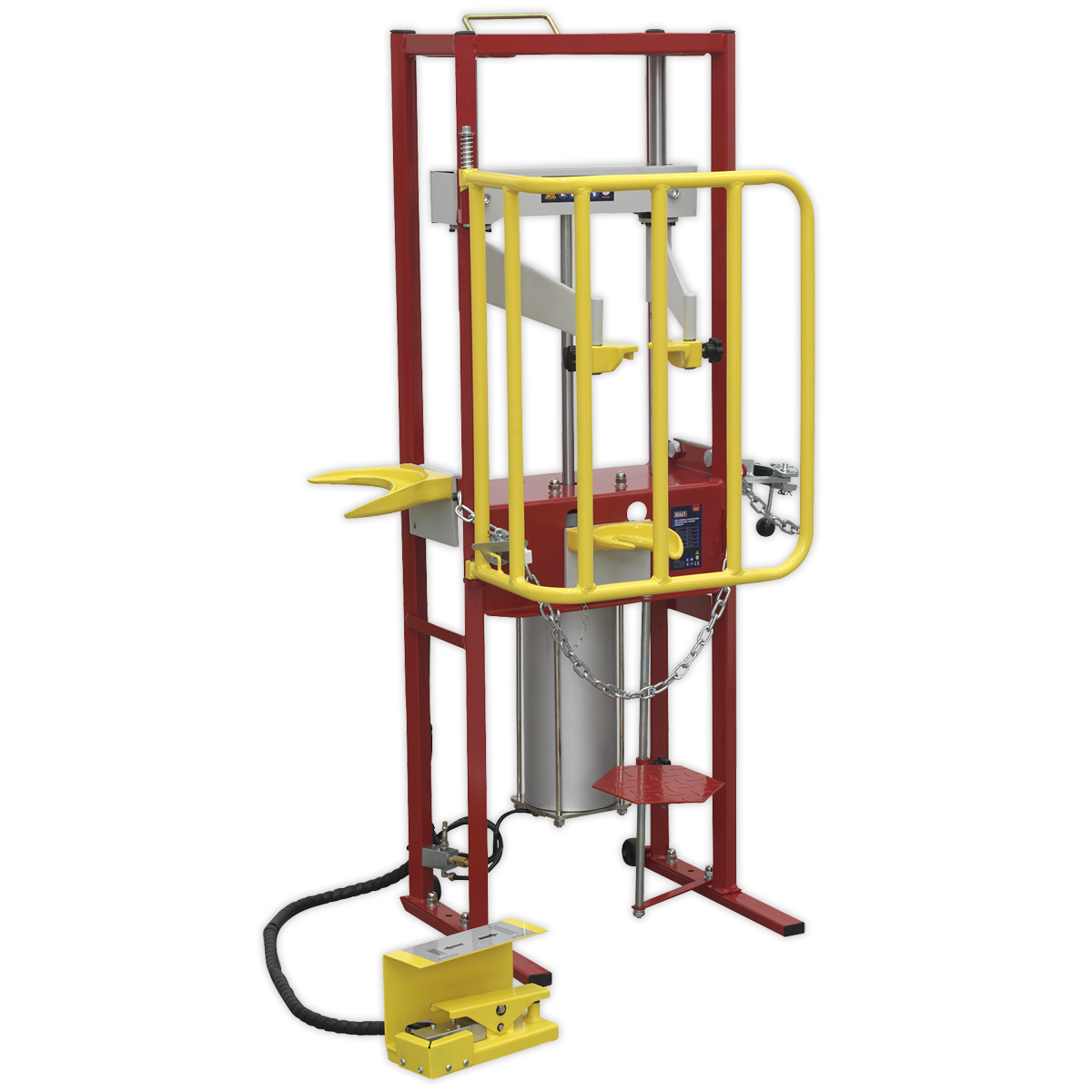

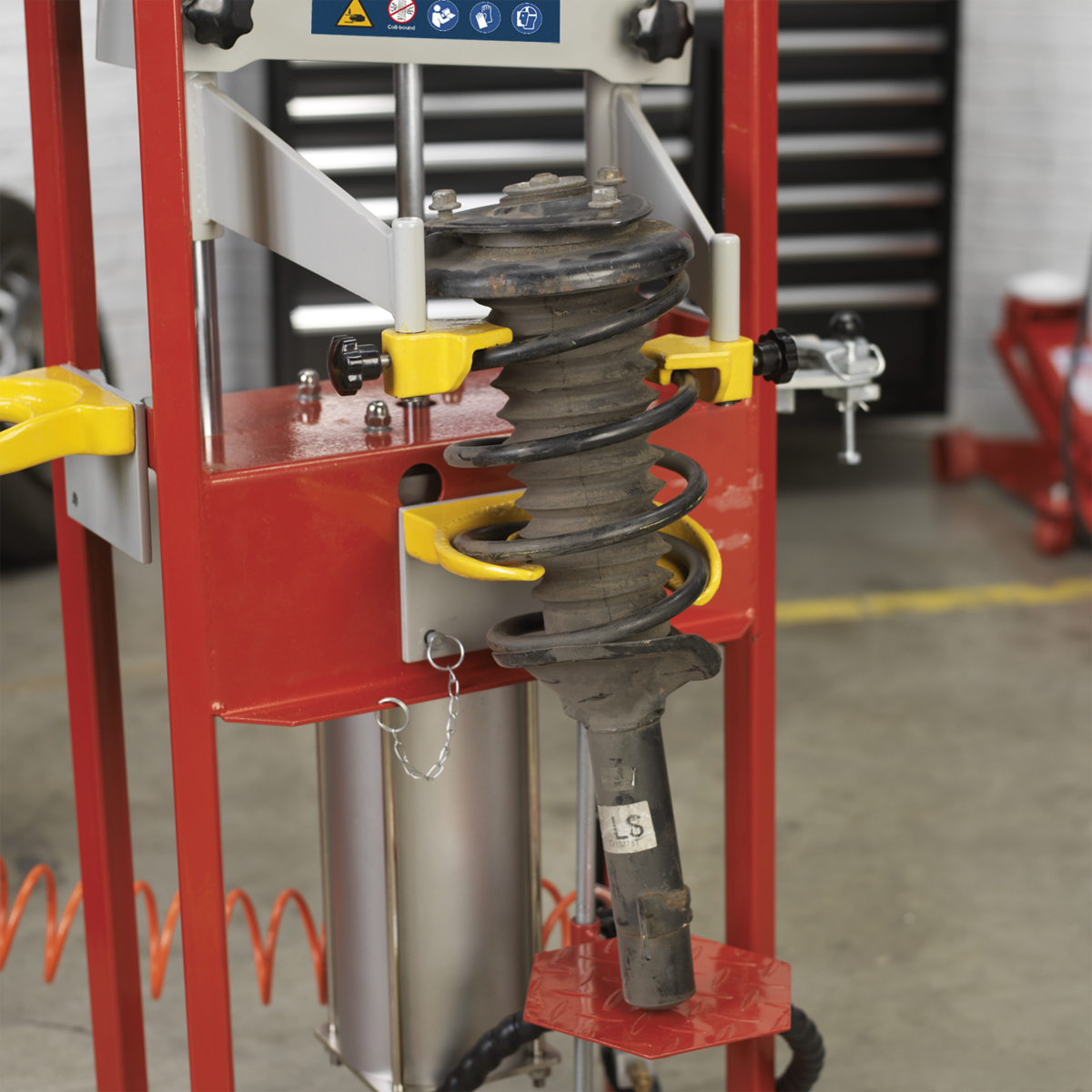

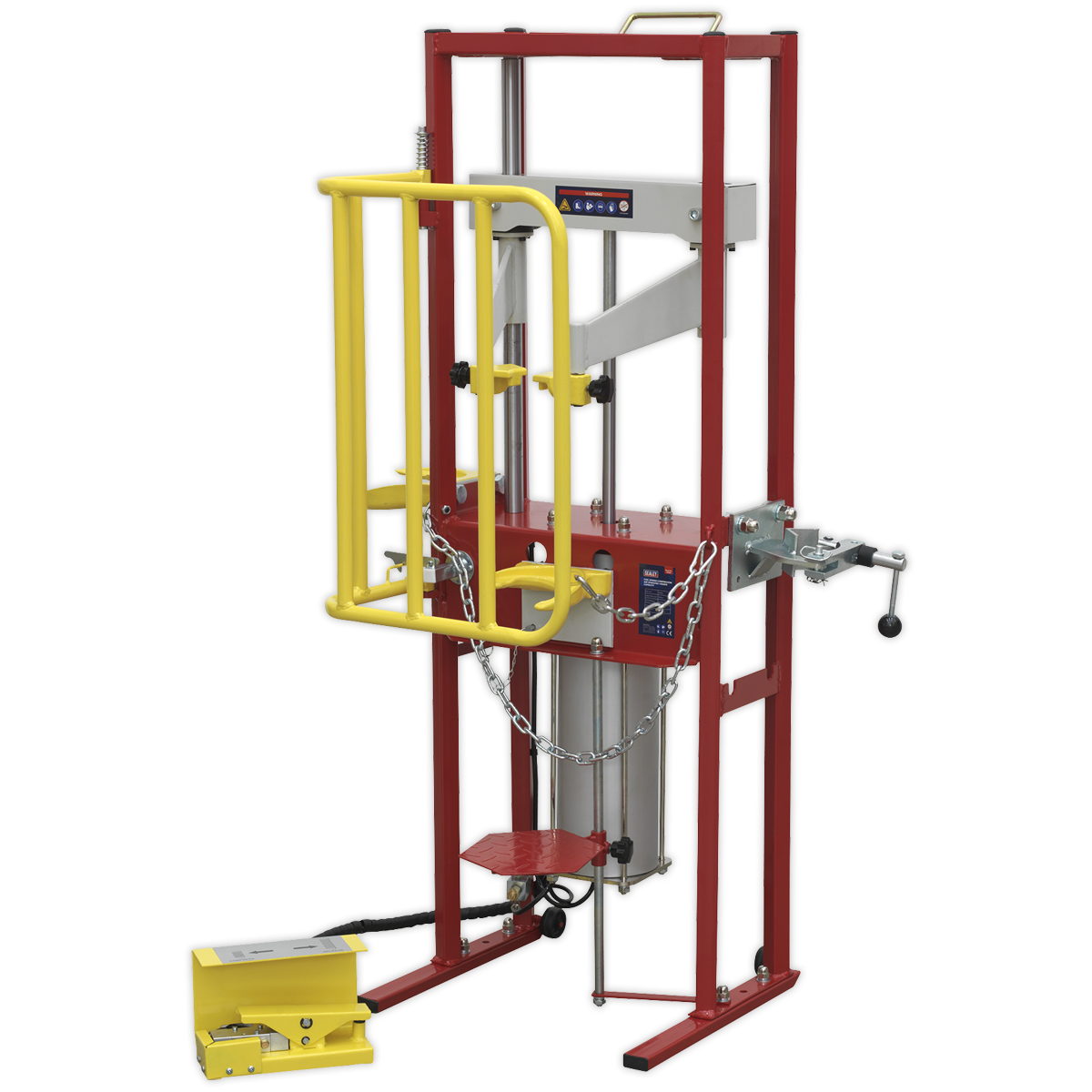

Compressing road springs manually is slow work and carries a significant risk of injury if a spring releases unexpectedly. The Sealey RE300 is an air-operated coil spring compressor with a 1000kg capacity, designed for fast and safe compression of road springs in a professional workshop environment. Actuation is via foot pedal, leaving both hands free to position and guide the workpiece, while a safety locking guard provides essential protection throughout the operation. The upper yoke travels 420mm, and the unit accepts spring diameters from 102mm to 165mm, covering a wide range of spring configurations. Two interchangeable plastic-coated yokes and a suspension strut clamp are supplied as standard, along with a strut locating platform that allows easy movement of the suspension strut to avoid unnecessary lifting. The RE300 operates at a maximum air pressure of 116psi (8bar), with an output pressure range of 6.5-8bar and a safety device set pressure of 8bar. Air line connections require inner 6mm and outer 8mm nominal piping.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | RE300 |
|---|---|
| Brand | Sealey |
| Nett Weight | 63.4kg |
| Maximum Load | 1000kg |
| Upper Yoke Travel | 420mm |
| Spring Diameter | Ø102-165mm |
| Actuation | Foot Pedal |
| Maximum Air Pressure | 116psi(8bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey RE3000 Air Operated Coil Spring Compressor 3000kg
£3,187.36
£3,123.61
2% OFF
Free delivery in UK Mainland
|
Sealey RE2500 Air Operated Coil Spring Compressor 2500kg
£2,230.91
£2,186.29
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO340 MECHANICAL COIL SPRING COMPRESSOR
£471.43
£462.19
2% OFF
Free delivery in UK Mainland
|
SIP 03661 Pneumatic Coil Spring Compressor
£2,130.73
£2,088.95
2% OFF
Free delivery in Channel Island
|
Sykes Pickavant GO975 EXTRA HD SPRING COMPRESSOR
£973.24
£954.16
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | RE3000 | RE2500 | GO340 | 03661 | 60981 | GO975 |
| Type | Spring Compressor | Spring Compressor | Spring Compressor | Spring Compressor | Spring Compressor | Spring Compressor |
| Brand | Sealey | Sealey | ||||
| Length (mm) | 330 | 330 | 100 | 185 | ||
| Model No | RE3000 | RE2500 | ||||
| Nett Weight | 104kg | 74kg | ||||
| Weight (kg) | 104 | 74 | 6 | 8.5 | ||
A. The RE300 has a maximum load capacity of 1000kg.
A. The RE300 accommodates spring diameters from Ø102mm to Ø165mm, covering a wide range of spring configurations.
A. The RE300 is air operated and actuated via a foot pedal, freeing both hands for positioning the spring and strut during compression.
A. The maximum air pressure is 116psi (8bar). The minimum allowable operating pressure is 6.5bar and the safety device is set at 8bar. Air line piping should be inner Ø6mm and outer Ø8mm nominal size.
A. The RE300 is supplied with two interchangeable plastic-coated yokes and a suspension strut clamp. A strut locating platform is also featured as part of the unit.
A. Yes. The same product family includes the RE2500 and RE3000, which are higher-capacity versions of the air-operated coil spring compressor range.
A. Yes. Alternative spring compressor tools include the AK384, AK3841, AK3842, and AK3843, which are different products performing a similar function.
A. The RE300 is fitted with a safety locking guard to protect the operator during spring compression. The air circuit also incorporates a safety device set at 8bar.
A. The upper yoke travel is 420mm.
