Product Number: 02162
Variations

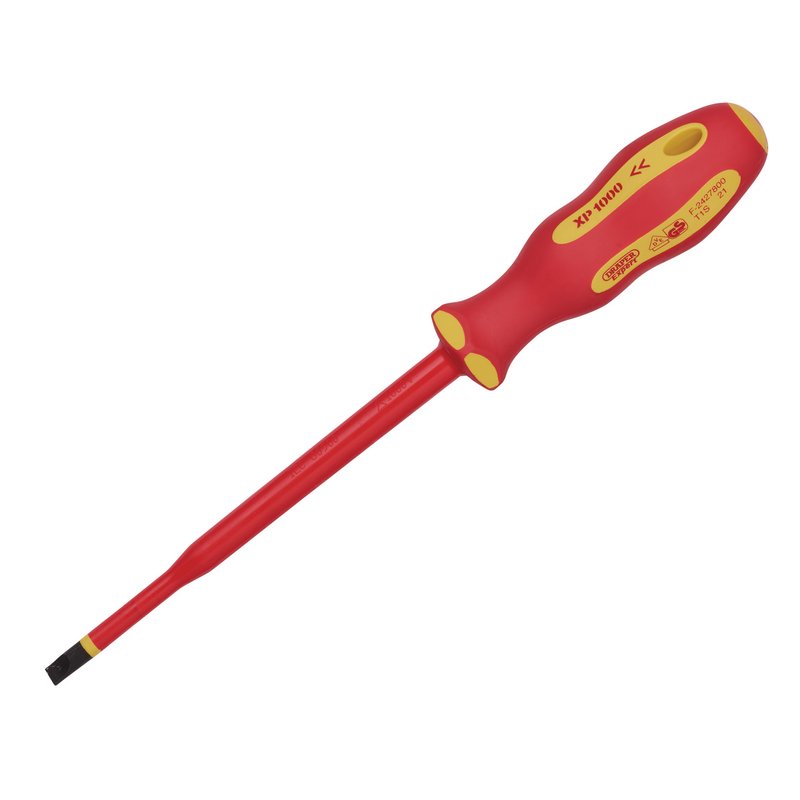

Electricians and panel wiring technicians working on terminals and switchboards often need a screwdriver that can reach deep-seated screws in confined spaces without compromising insulation integrity. The Draper XP1000® VDE Slimline Plain Slot Screwdriver addresses this precisely: its insulated sheath is the same diameter as the blade, allowing unobstructed access into recessed terminal screw positions where a bulkier sheath would otherwise foul. Safety credentials are central to this tool. It is individually tested to 10,000V and certified for use on live circuits of 1,000V AC and 1,500V DC, manufactured and individually certified to EN 60900. The patented dual-layer insulation is engineered so that any damage to the outer layer becomes immediately visible, providing a clear safety alert before the inner insulation is compromised. The SCVM steel blade is hardened, tempered and chemically blackened, with a precision-machined 6.5mm tip ground to an exact fit for plain slot fasteners, reducing the risk of screw damage. The blade measures 150mm in length. The ergonomic bi-material soft grip handle allows free spinning in the palm for rapid screw driving, whilst also transmitting torque efficiently when greater force is required. Flat sides on the handle prevent the screwdriver from rolling on a workbench surface. This product is supplied as a single XP1000® Slimline Plain Slot VDE Screwdriver, 6.5 x 150mm, and carries a lifetime warranty.
Expert quality XP1000®, slimline blade with an insulated sheath the same diameter as the blade, enabling access to deep-seated screws found in terminals and switchboards. The patented dual-layer insulation ensures damage is highly visible. Individually tested to 10,000V, suitable for working on live circuits of 1,000V AC and 1,500V DC. Ergonomic soft grip bi-material handle allows free spinning in the palm of your hand to quickly tighten screws, but also allows transfer of torque when needed. Designed with flat sides to prevent them from rolling. SCVM steel blades hardened, tempered and chemically blackened with a precision-machined tip for exact fit to prevent screw damage.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Blade Length | 150mm |
|---|---|
| Blade Tip | 6.5mm |
| Tip Type | Plain Slot |
| Insulation | VDE |
| Insulation Testing | Tested to 10,000V, suitable for working on live circuits of 1,000V AC and 1,500V DC |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02159 | 02160 | 02161 | 02163 | 02164 | 02165 | 02166 | 02254 | 02256 | 16419 | 16420 | 24737 | 24738 | 24739 | 24743 |
| Blade Length | 100mm | 100mm | 125mm | 80mm | 100mm | 80mm | 100mm | 80mm | 100mm | 80mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Blade Tip | 3.5mm | 4.0mm | 5.5mm | No.1 | No.2 | No.1 | No.2 | No.1 | No.2 | No.1 | No.2 | 3.0mm | 4.0mm | 5.5mm | No.2 |
| Insulation | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE |
| Length (mm) | 100 | 100 | 125 | 80 | 100 | 80 | 100 | 80 | 100 | 80 | 100 | 100 | 100 | 100 | 100 |
| Tip Type | Plain Slot | Plain Slot | Plain Slot | Cross Slot | Cross Slot | PZ Type | PZ Type | PZ/SL Type | PZ/SL Type | PZ/SL Type Extra Slim | PZ/SL Type Extra Slim | Plain Slot | Plain Slot | Plain Slot | Cross Slot |
A. The Draper 2162 XP1000® VDE Slimline Plain Slot Screwdriver is individually tested to 10,000V and is certified for use on live circuits of 1,000V AC and 1,500V DC, manufactured and individually certified to EN 60900.
A. The insulated sheath on this screwdriver is the same diameter as the blade itself. This allows the tool to access deep-seated screws found in terminals and switchboards where a wider sheath profile would obstruct entry.
A. This screwdriver features patented dual-layer insulation. If the outer insulation layer sustains damage, that damage becomes highly visible, alerting the user before the inner insulation layer is affected.
A. The blade is 150mm in length with a 6.5mm plain slot tip. The blade is manufactured from SCVM steel, hardened, tempered and chemically blackened, with a precision-machined tip for an exact fit.
A. This screwdriver is manufactured and individually certified to EN 60900, the standard governing hand tools for working on live electrical equipment.
A. Yes. The handle is designed with flat sides specifically to prevent the screwdriver from rolling when set down on a workbench or other surface.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
