Product Number: 02161

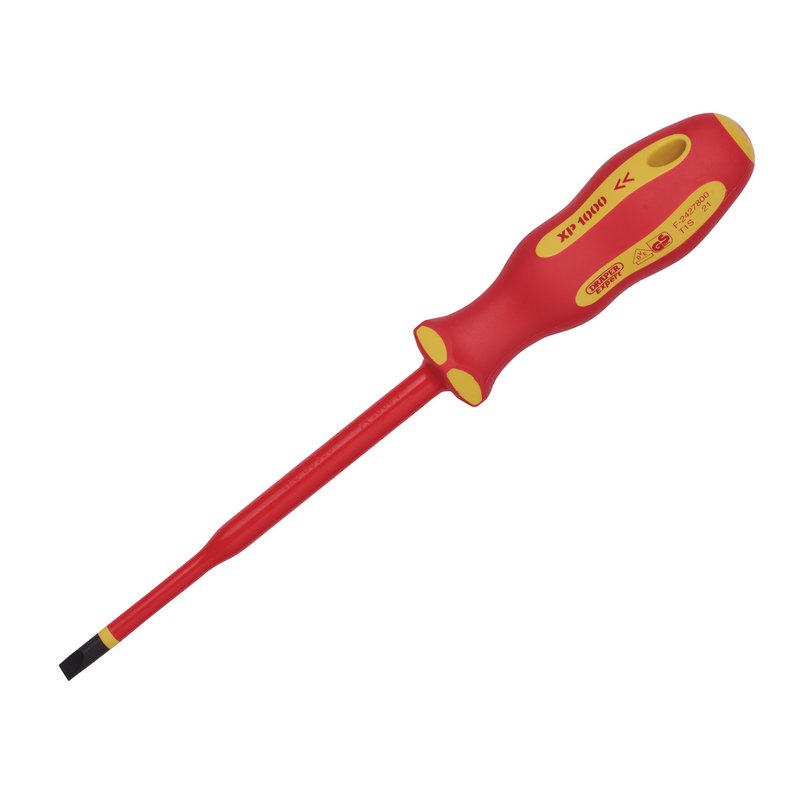

Electrical professionals working on terminals, switchboards, and live circuits need a screwdriver that can reach deep-seated fasteners without compromising safety. The Draper XP1000® VDE Slimline Plain Slot Screwdriver addresses this directly with a slimline blade and insulated sheath of the same diameter as the blade, allowing access to recessed screws in confined spaces where conventional screwdrivers cannot reach. Safety credentials are at the core of this tool. Each unit is individually tested to 10,000V and certified for use on live circuits of 1,000V AC and 1,500V DC in accordance with EN 60900. The patented dual-layer insulation is engineered so that any damage to the outer layer is highly visible, providing an immediate and clear alert to the user before work on a live circuit begins. The SCVM steel blade is hardened, tempered, and chemically blackened, with a precision-machined 5.5mm plain slot tip for an exact fit to the screw head, reducing the risk of cam-out and screw damage. The blade measures 125mm in length. The bi-material ergonomic soft-grip handle is designed for versatility: it allows free spinning in the palm for rapid tightening of screws, whilst also enabling the transfer of torque when greater drive force is required. Flat sides on the handle prevent the screwdriver from rolling on work surfaces. This screwdriver carries a Lifetime Warranty and is supplied as a single unit.
Expert quality XP1000®, slimline blade with an insulated sheath the same diameter as the blade, enabling access to deep-seated screws found in terminals and switchboards. The patented dual-layer insulation ensures damage is highly visible. Individually tested to 10,000V, suitable for working on live circuits of 1,000V AC and 1,500V DC. Ergonomic soft grip bi-material handle allows free spinning in the palm of your hand to quickly tighten screws, but also allows transfer of torque when needed. Designed with flat sides to prevent them from rolling. SCVM steel blades hardened, tempered and chemically blackened with a precision-machined tip for exact fit to prevent screw damage.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Blade Length | 125mm |
|---|---|
| Blade Tip | 5.5mm |
| Tip Type | Plain Slot |
| Insulation | VDE |
| Insulation Testing | Tested to 10,000V, suitable for working on live circuits of 1,000V AC and 1,500V DC |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02159 | 02160 | 02162 | 02163 | 02164 | 02165 | 02166 | 02254 | 02256 | 16419 | 16420 | 24737 | 24738 | 24739 | 24743 |
| Type | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver | General Purpose Screwdriver |
| Blade Length | 100mm | 100mm | 150mm | 80mm | 100mm | 80mm | 100mm | 80mm | 100mm | 80mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Blade Tip | 3.5mm | 4.0mm | 6.5mm | No.1 | No.2 | No.1 | No.2 | No.1 | No.2 | No.1 | No.2 | 3.0mm | 4.0mm | 5.5mm | No.2 |
| Insulation | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE | VDE |
| Length (mm) | 100 | 100 | 150 | 80 | 100 | 80 | 100 | 80 | 100 | 80 | 100 | 100 | 100 | 100 | 100 |
| Tip Type | Plain Slot | Plain Slot | Plain Slot | Cross Slot | Cross Slot | PZ Type | PZ Type | PZ/SL Type | PZ/SL Type | PZ/SL Type Extra Slim | PZ/SL Type Extra Slim | Plain Slot | Plain Slot | Plain Slot | Cross Slot |
A. The Draper 2161 XP1000® VDE Slimline Plain Slot Screwdriver is individually tested to 10,000V and is certified for use on live circuits of 1,000V AC and 1,500V DC, manufactured and individually certified to EN 60900.
A. The insulated sheath is the same diameter as the blade itself, which allows the screwdriver to reach deep-seated screws found in terminals and switchboards where a conventional screwdriver with a larger sheath profile would be obstructed.
A. The patented dual-layer insulation is engineered so that any damage to the outer layer is highly visible, providing a clear visual warning that the insulation integrity may be compromised before the tool is used on a live circuit.
A. The blade is manufactured from SCVM steel, hardened, tempered, and chemically blackened. The 5.5mm plain slot tip is precision-machined to achieve an exact fit with the screw head, helping to prevent screw damage and cam-out.
A. The ergonomic soft-grip bi-material handle allows free spinning in the palm of the hand for rapid screw tightening, whilst also enabling effective torque transfer when greater driving force is required. The flat sides of the handle prevent the screwdriver from rolling on work surfaces.
A. The Draper 2161 XP1000® VDE Slimline Plain Slot Screwdriver is covered by a Lifetime Warranty.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
