Product Number: 35574

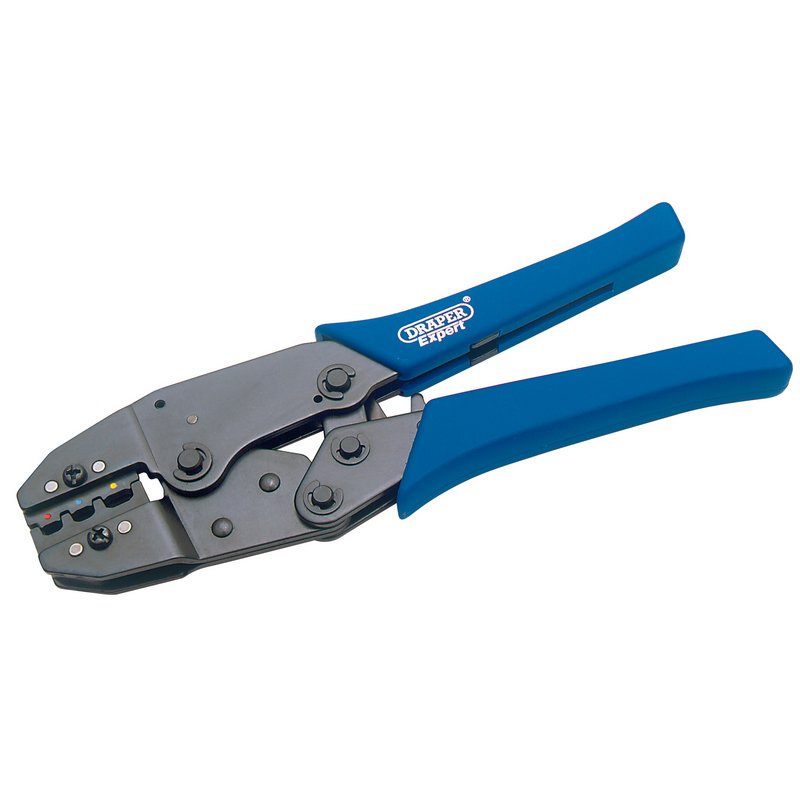

Accurate terminal crimping demands consistent, repeatable force — a requirement the Draper Expert Ratchet Action Terminal Crimping Tool is built to meet. The ratchet action mechanism delivers continuous crimping at a pre-set tension, ensuring every crimp is formed correctly before the jaws release, eliminating the risk of incomplete or under-crimped connections. Constructed from carbon steel with hardened and tempered jaws, the tool is built for sustained workshop use. A chemically blackened finish resists corrosion, while polypropylene grip handles provide comfort and control during operation. The tool measures 220 mm overall. Three colour-coded channels accommodate a range of insulated terminal sizes: the red channel handles 0.5–1.0 mm² (22–18 AWG), the blue channel covers 1.5–2.5 mm² (16–14 AWG), and the yellow channel accommodates 4.0–6.0 mm² (12–10 AWG). This range suits the majority of insulated terminals encountered in automotive, marine, and general electrical wiring work. Supplied display packed. Contents: 1 x Ratchet Action Terminal Crimping Tool, 220 mm.
Expert Quality, carbon steel with hardened and tempered jaws. Continuous crimping at pre-set tension ensures accurate crimp. Chemically blackened finish with PP grips. Suitable for crimping insulated terminals as follows: - red channel: 0.5 - 1.00mm, blue channel: 1.5 - 2.5mm and yellow channel: 4.0 - 6.0mm.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 44052 | AK3857 | 44053 | AK422 | AK386 |
| Type | Crimping Tool | Crimping Tool | Crimping Tool | Crimping Tool | Crimping Tool |
| Brand | Sealey | Sealey | Sealey | ||
| Length (mm) | 225 | 220 | 225 | ||
| Model No | AK3857 | AK422 | AK386 | ||
| Nett Weight | 0.54kg | 0.67kg | 0.51kg | ||
| Weight (kg) | 54 | 67 | 51 | ||
A. The tool features three colour-coded channels for insulated terminals: the red channel accepts 0.5–1.0 mm² (22–18 AWG), the blue channel accepts 1.5–2.5 mm² (16–14 AWG), and the yellow channel accepts 4.0–6.0 mm² (12–10 AWG).
A. The ratchet mechanism provides continuous crimping at a pre-set tension. The jaws will not release until the crimp has been completed to the correct level, ensuring an accurate and consistent result every time.
A. The tool measures 220 mm overall.
A. The tool is constructed from carbon steel with hardened and tempered jaws and a chemically blackened finish for corrosion resistance. The handles are fitted with polypropylene (PP) grips.
A. Yes. The tool is specifically designed for crimping insulated terminals across three size ranges, covering the red, blue, and yellow terminal categories commonly used in automotive and electrical wiring applications.
