Product Number: 09581000

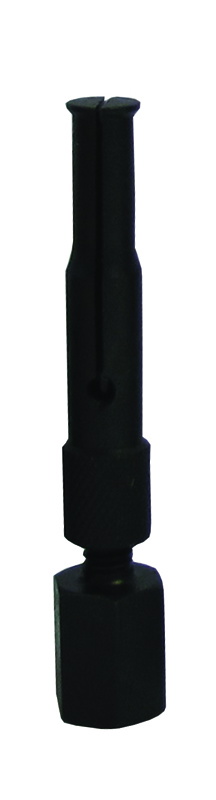

The split collet is pushed into the centre of the bearing and then expanded
via the hex nut on the end of the collet until a secure grip is achieved.
The slide hammer is then attached providing the necessary extracting force.
Internal Spread Min - Max: 8.5-10mm
No.0 - stamped on extractor
| Product Dimenstions (L x W x H) | 110 x 90 x 20 mm |
|---|---|
| Product Weight | 0.05 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
08532000 | Sykes Pickavant 08532000 Slide Hammer - 2 KG | 1 Unit |
£189.26
£185.55
|
Add |
|
09580200 | Sykes Pickavant 09580200 BEARING EXTRACTOR 13-30MM | 1 Unit |
£180.74
£177.20
|
Add |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 18777000 D3/D4 BUSH KIT - MASTER KIT
£847.15
£830.54
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 18777300 D3/D4 BUSH KIT - REAR LOWER
£264.70
£259.51
2% OFF
Free delivery in UK Mainland
|
|||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 53452200 | 18775100 | 081255170 | 08794600 | 09322300 | 18777000 | 09580900 | 09581100 | 18777300 | 09581200 | 09581300 | 09581400 | 18780400 | 09581500 | 18780500 |
| Type | Spare Part | Plate | Spare Part | Spare Part | Spare Part | Bush | Spare Part | Spare Part | Bush | Spare Part | Spare Part | Spare Part | Adaptor | Spare Part | Spare Part |
| Size | 72mm | ||||||||||||||
| Format | Set | ||||||||||||||
| Pack Qty | 2 | ||||||||||||||
| Size Range | 51-100mm | ||||||||||||||
A. The 09581000 has an internal spread range of 8.5 mm to 10 mm, making it suitable for bearings within that size range.
A. The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. A slide hammer is then attached to provide the necessary extracting force.
A. The 09581000 is compatible with the 08532000 Slide Hammer (2 kg) Double Ended Threads and the 08542100 Slide Hammer Assembly (1 kg). Note that an additional convertor part, 09582000 (M8 to 1/2" UNF), must be attached when using either of these slide hammers.
A. Yes. When connecting the 09581000 to either the 08532000 or 08542100 slide hammer, the additional part 09582000 (a convertor from M8 to 1/2" UNF) must be attached.
A. Yes. The 09581000 extractor is included in several kits: the 09580000 Internal Split Collets Extractor Kit, the 09580100 Slide Hammer & Split Collet Extractor Kit, the 09580400 Slide Hammer & Split Collet Extractor Kit, and the 19310500 Hydraulic Internal Extractor, Puller & Separator Kit.
A. The extractor is stamped with "No.0" for easy identification within a set.
A. The product dimensions are 110 x 90 x 20 mm and it weighs 0.05 kg.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
