Product Number: 50094

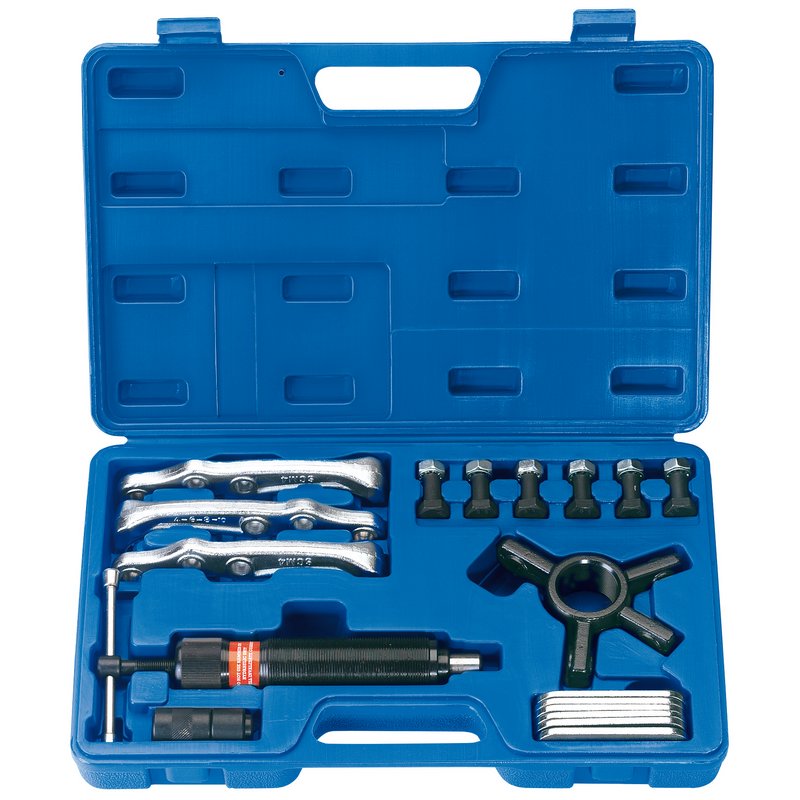

Removing bearings, gears and similar press-fit components without the right tooling risks damage to both the part and the surrounding assembly. The Draper Expert 50094 Hydraulic Puller Kit addresses this by combining hydraulic force with a six-position multi-function puller design, allowing bearings and gears to be removed with minimal effort rather than relying on mechanical force alone. The puller features an adjustable two or three leg function, giving the operator flexibility to suit different component geometries. The 2/3 leg puller yoke, three puller legs and six link plates work together to configure the tool across six positions, while the included nose adaptor and nuts and washers ensure a secure, adaptable setup for each application. Key working dimensions are a reach of 0–150 mm and a spread of 100–240 mm, supporting a range of component sizes within that envelope. The kit is rated to 10 tonnes and comprises 18 pieces in total: one hydraulic pump, three puller legs, six nuts and washers, six link plates, one 2/3 leg puller yoke and one nose adaptor. The complete kit is supplied with an instruction manual and packed in a blow-mould carrying case with display sleeve, keeping all components organised and protected for repeated workshop use. Expert Quality designation reflects Draper's professional-grade product tier within the range.
Expert Quality, six position multi-function puller with adjustable two or three leg function. Allows bearings, gears, etc. to be removed with Minimal effort by use of the hydraulic puller. Supplied with instruction manual. Packed in blow mould carrying case with display sleeve.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
50094ins.pdf
|
Open Now |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 15520000 Hydraulic Puller & Separator Kit | 8 Tonne | 50–150mm
£452.45
£443.58
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 15520800 Hydraulic Puller & Separator Kit | 8 Tonne | 50–200mm
£520.25
£510.05
2% OFF
Free delivery in UK Mainland
|
Sealey PS982 Hydraulic Puller Set 25pc with 10 Tonne Ram
£318.88
£312.63
2% OFF
Free delivery in UK Mainland
|
Sealey HP10 Triple Leg Hydraulic Puller 10 Tonne
£170.09
£166.75
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 20102000 Loadstar Puller 20 Tonne
£2,851.36
£2,795.45
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 15520000 | 15520800 | PS993 | PS982 | HP10 | 20102000 |
| Puller Reach (mm) | 200 - 299 | 300 - 399 | ||||
| Puller Max. Spread (Ext.) (mm) | 45 - 199 | 500+ | ||||
| Ram Extension | 100mm | |||||
| Legs | Triple | Triple | ||||
| Capacity | 20T | |||||
A. The 18-piece kit contains: one hydraulic pump, three puller legs, six nuts and washers, six link plates, one 2/3 leg puller yoke, one nose adaptor, and an instruction manual. The complete kit is packed in a blow-mould carrying case with display sleeve.
A. The puller has a reach of 0–150 mm and a spread of 100–240 mm, accommodating a range of component sizes within those limits.
A. Yes. The kit includes a 2/3 leg puller yoke and three puller legs, giving the operator an adjustable two or three leg function to suit different component geometries.
A. The source documentation states the tool is suited to removing bearings, gears and similar components. The hydraulic mechanism is designed to allow removal with minimal effort.
A. All 18 pieces are packed in a blow-mould carrying case with a display sleeve, keeping components organised and protected between uses.
A. Standard UK mainland delivery is 3–5 working days.
