Product Number: 09400000
Variations
Removing pressed or interference-fit components from shafts and housings demands a controlled, mechanical approach — improvised methods risk damaging the component, the surrounding assembly, or both. The Sykes-Pickavant 09400000 Pulling Unit from the 900 Series is designed for precisely this application, providing a dedicated mechanical solution for controlled extraction when used in conjunction with the 09500000 Separator.

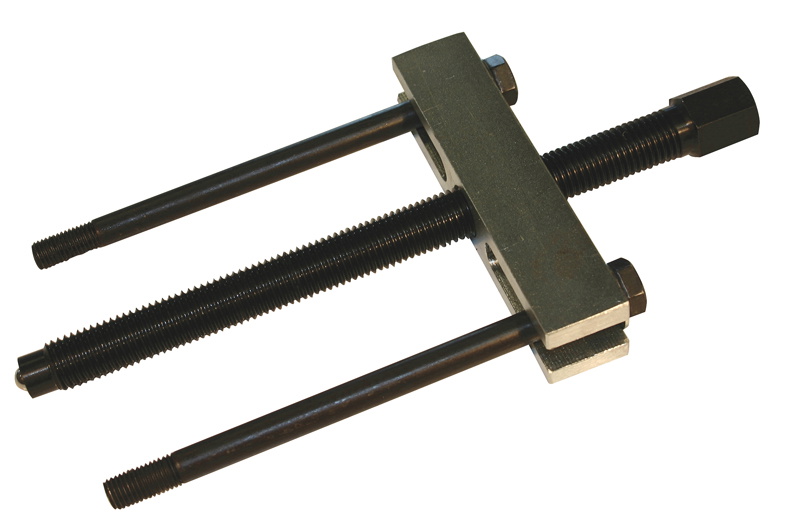

The pulling unit operates as a mechanical assembly comprising a twin beam, a central screw, and two pulling rods. The twin beam spans the component to provide a stable load-bearing platform, while the screw delivers steady, measured pulling force. The two pulling rods connect the beam to the separator, transferring force evenly and reducing the risk of component distortion during extraction. The unit is compatible with separators 19310500 and 15530500, expanding its range of application across different separator configurations available within the Sykes-Pickavant 900 Series system.
The pulling unit measures 240 x 175 x 35 mm and weighs 0.95 kg, making it a compact and manageable addition to a professional workshop toolkit. It is not suitable for use with air or impact tools; manual operation only is specified for this unit.
The 09400000 is part of the broader Sykes-Pickavant 900 Series, a modular system designed so that individual components work together as a coordinated extraction solution.
Additional Information
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 240 x 175 x 35 mm |
|---|---|
| Product Weight | 0.95 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
09300000 | Sykes Pickavant 09300000 BEARING PULLER SET | 1 Unit |
£124.75
£122.30
|
Add |
|
09500000 | Sykes Pickavant 09500000 BEARING SEPARATOR | 1 Unit |
£58.85
£57.70
|
Add |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 9580500 |
A. It is a 900 series pulling unit comprising a twin beam, screw and two pulling rods for use with the 09500000 separator and other compatible kits.
A. It is suitable for use with 09500000 separator kits and puller kits such as 19310500 and 15530500.
A. The separator grips behind the component, while the pulling rods and screw draw the component off the shaft or seating when tightened.
A. It is a mechanical system intended for hand‑operated loads; impact tools could overload threads and compromise safety.
A. Attach pulling rods to the separator, fit the twin beam, align the forcing screw with the shaft centre and tighten gradually.
A. Check beams and rods for cracks or bending, inspect threads and ensure all nuts or clamps engage correctly.
A. Packaged, it is around 240 x 175 x 35mm and weighs approximately 0.95 kilograms.
A. Store it in its kit case or in a drawer with bearing separators and associated hardware so it remains easy to assemble.
A. When controlled mechanical pulling is required and impacts from a slide hammer might risk damage or misalignment.
A. “Sykes Pickavant 09400000 pulling unit”, “puller crossbar with rods for 09500000” and “900 series bearing separator puller” are examples."
