Product Number: TM105

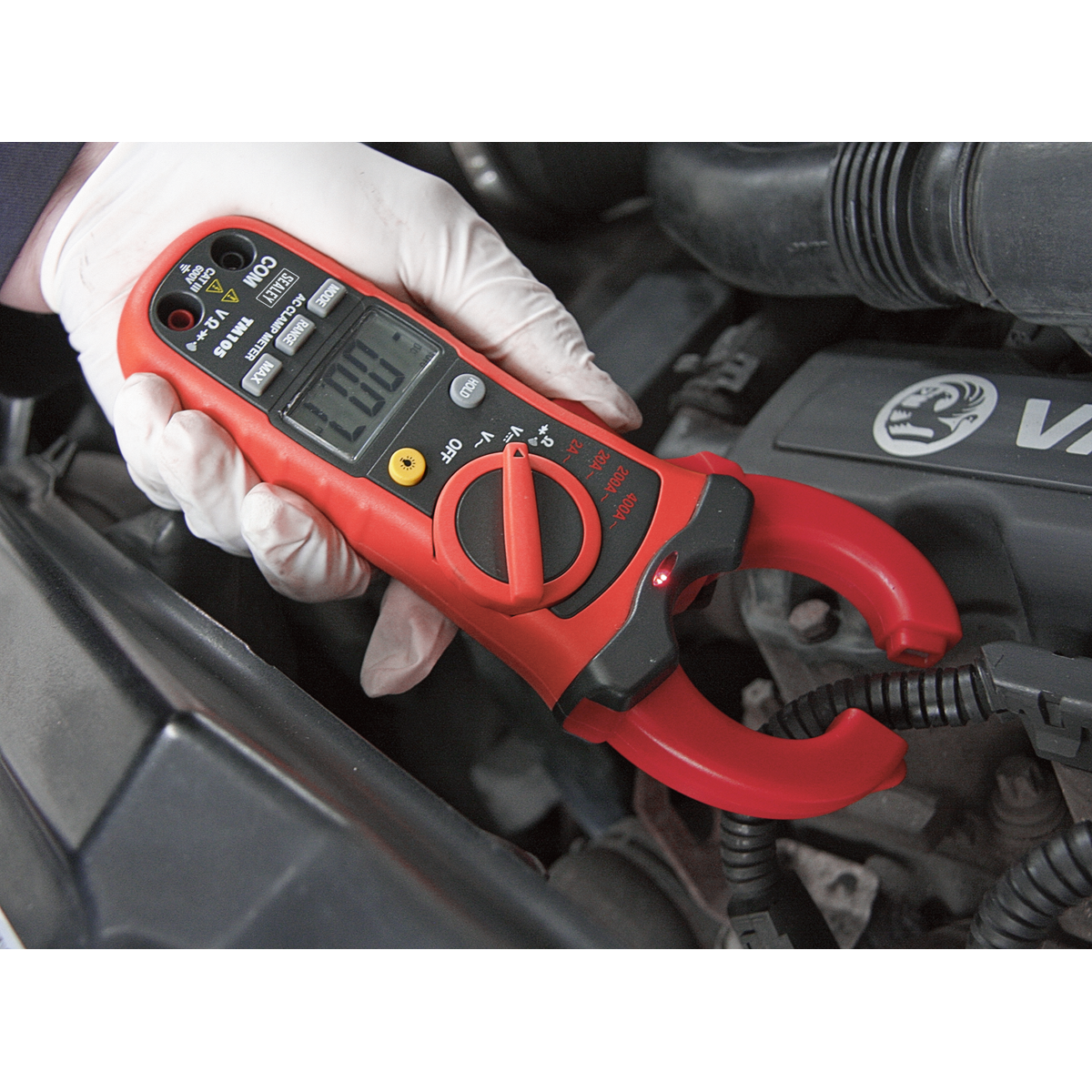

Electrical diagnostics that require both hands to operate a metre slow down every job and introduce the risk of misreadings under pressure. The Sealey TM105 Professional Auto-Ranging Digital Clamp Metre is designed for one-handed operation, with controls laid out to keep your other hand free for probing or steadying work. Conforming to EN 61010-1 CAT III 600V safety requirements, it is rated for measurement, control and laboratory use in demanding electrical environments. The non-contact AC voltage detection (NCVD) function allows you to identify live conductors without direct contact, adding a critical layer of safety. Auto-ranging across 6 functions removes the need to manually select ranges, reducing errors during fault-finding. The 30mm clamp jaw accommodates a wide range of cable sizes. AC voltage accuracy spans 200mV (±1.5%) up to 600V (±2.5%); DC voltage from 0-200mV (±0.8%) up to 600V (±2%); AC current from 2A up to 400A (±3%); and resistance from 0-200Ω (±1%) up to 20MΩ (±3.5%). Continuity audible and diode test functions are included. Data hold and maximum hold functions allow readings to be captured and reviewed. The double moulded housing with soft grip case protects the metre in daily use, and the large display aids readability in all conditions. Supplied in a zipped pouch with carry strap.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TM105 |
|---|---|
| Brand | Sealey |
| Nett Weight | 345g |
| AC Voltage (Accuracy) | 200mV (±1.5%), 2V, 20V, 200V (±1.8%), 600V (±2.5%) |
| DC Voltage (Accuracy) | 0-200mV (±0.8%), 2V, 20V, 200V (±1.5%), 600V (±2%) |
| AC Current (Accuracy) | 2A, 20A, 200A (±2.5%), 400A (±3%) |
| DC Current (Accuracy) | No |
| Resistance (Accuracy) | 0-200Ω (±1%), 2kΩ, 20kΩ, 200kΩ (±1.5%), 2MΩ (±2.5%), 20MΩ (±3.5%) |
| Capacitance (Accuracy) | No |
| Temperature (Accuracy) | No |
| Frequency (Accuracy) | No |
| Duty Cycle | No |
| Continuity Audible | Yes |
| Diode Test | Yes |
| Transistor Test | No |
| Hi-Impact Rubber Case | No |
| Digits x Height | 3.5 x 14mm |
| Low Battery Indicator | Yes |
| Battery (Supplied) | 1 x 9V |
| Jaw Opening | 32mm |
| Information | Data-Hold, Auto-Power-Off, Non-Contact Voltage Detection |
| Size (L x W x D) | 197 x 70 x 40mm |
| Weight | 345g |
| Conformity | EN 61010-1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey TA305 AC/DC Clamp Metre & Multimeter CAT III 600V
£97.42
£95.51
2% OFF
Free delivery in UK Mainland
|
Draper 41967 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
£75.39
£73.91
2% OFF
Free delivery in UK Mainland
|
Sealey TM103 Professional Auto-Ranging Digital Multimeter 11-Function
£81.06
£79.47
2% OFF
Free delivery in UK Mainland
|
|||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MM405 | TA305 | TA310 | TA311 | TM100 | 41967 | TM103 | 41820 | 41835 | 92433 |
A. The TM105 conforms to EN 61010-1 CAT III 600V safety requirements for electrical equipment for measurement, control and laboratory use.
A. The TM105 is a 6-function metre covering AC voltage, DC voltage, AC current, resistance, continuity (audible), and diode test, plus non-contact AC voltage detection (NCVD).
A. The clamp jaw is 30mm, accommodating a wide range of cable and conductor sizes.
A. AC current ranges are 2A, 20A, and 200A (±2.5%), and 400A (±3%).
A. Yes. The TM105 features a non-contact AC voltage detection (NCVD) function, allowing live conductors to be identified without direct contact.
A. Yes, both data hold and maximum hold functions are included, allowing readings to be frozen and reviewed.
A. Based on the specification, the TM105 does not include DC current, capacitance, temperature, or frequency measurement functions.
A. Alternative products that perform a similar function include MM405, TA305, TA310, and TA311. Please review those listings or contact Parts for Machines to confirm which best suits your needs.
A. The TM105 is supplied in a zipped pouch with carry strap.
A. Standard UK mainland delivery is 3-5 working days.
