Product Number: TM100

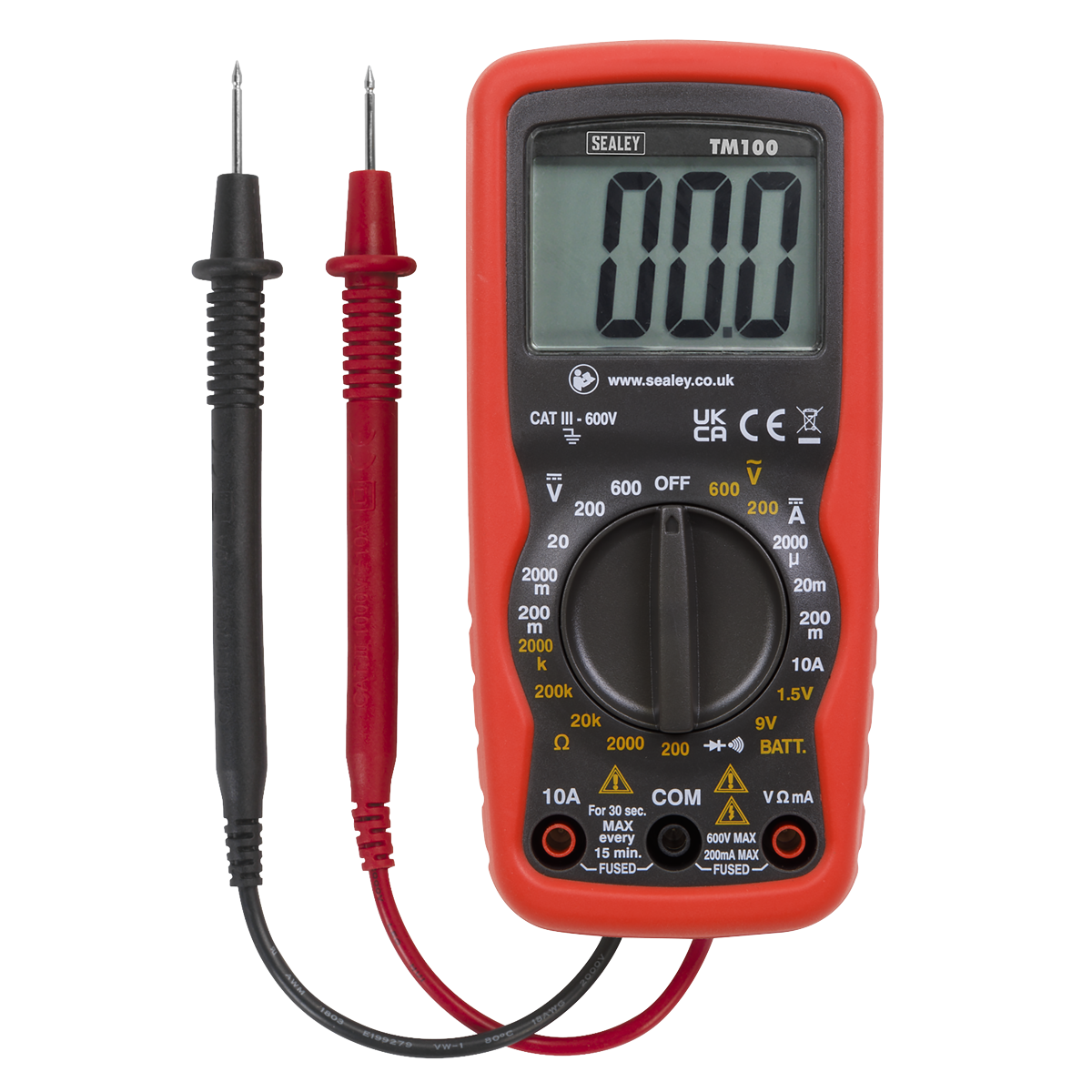

Unreliable readings and the risk of working on live circuits without proper safety certification can turn a simple diagnostic job into a serious hazard. The Sealey TM100 Professional Digital Multimeter addresses both concerns with a 6-function design that conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment used in measurement, control, and laboratory environments. The double-moulded housing with soft grip case protects the metre during daily workshop use, while the large display ensures clear readings at a glance. DC voltage measurement spans 0-200mV, 2000mV, 20V (±0.5%), 200V, and 600V (±0.8%), and DC current covers 0-2000µA, 20mA (±1%), 200mA (±1.2%), and 10A (±2%). AC voltage is measured across 200V and 600V ranges (±1.2%), and resistance measurement covers 0-200Ω, 2000Ω, 20kΩ, 200kΩ (±0.8%), and 2000kΩ (±1%). Continuity audible alert and diode test are included. Probe and lead storage keeps everything tidy, the integral upright stand lets you work hands-free on the bench, and the unit is supplied in a zipped pouch with carry strap for easy transport.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TM100 |
|---|---|
| Brand | Sealey |
| Nett Weight | 260g |
| AC Voltage (Accuracy) | 200V, 600V (±1.2%) |
| DC Voltage (Accuracy) | 0-200mV, 2000mV, 20V (±0.5%), 200V, 600V (±0.8%) |
| AC Current (Accuracy) | No |
| DC Current (Accuracy) | 0-2000µA, 20mA (±1%), 200mA (±1.2%), 10A (±2%) |
| Resistance (Accuracy) | 0-200Ω, 2000Ω, 20kΩ, 200kΩ (±0.8%), 2000kΩ (±1%) |
| Capacitance (Accuracy) | No |
| Temperature (Accuracy) | No |
| Frequency (Accuracy) | No |
| Duty Cycle | No |
| Continuity Audible | Yes |
| Diode Test | Yes |
| Transistor Test | No |
| Hi-Impact Rubber Case | Yes |
| Digits x Height | 3 x 27.5mm |
| Low Battery Indicator | Yes |
| Battery (Supplied) | 1 x 9V |
| Information | Battery Test 1.5V, 9V (±1%) |
| Size (L x W x D) | 150 x 70 x 48mm |
| Weight | 260g |
| Conformity | EN 61010-1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 41967 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
£75.39
£73.91
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | TM105 | 41967 | TM103 | 02590 | 41820 | 16232 |
| Type | Multimeter | Multimeter | Multimeter | Multimeter | Multimeter | |
| Brand | Sealey | Sealey | ||||
| AC Voltage | 6 | |||||
| DC Current | 600 | |||||
| DC Voltage | 600 | |||||
| Dimensions | 172 | |||||
| Length (mm) | 14 | 228 | 172 | |||
| Model No | TM105 | TM103 | ||||
| Nett Weight | 345g | 255g | ||||
| Weight (kg) | 345g | 400g (approx.) | 255g | 100g | ||
| Show More | ||||||
A. The TM100 conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control, and laboratory use.
A. The TM100 measures DC voltage across 0-200mV, 2000mV, and 20V ranges at ±0.5% accuracy, and 200V and 600V ranges at ±0.8% accuracy.
A. DC current measurement covers 0-2000µA and 20mA at ±1% accuracy, 200mA at ±1.2% accuracy, and 10A at ±2% accuracy.
A. Yes. The TM100 includes both an audible continuity test and a diode test function.
A. Resistance measurement spans 0-200Ω, 2000Ω, 20kΩ, and 200kΩ at ±0.8% accuracy, and 2000kΩ at ±1% accuracy.
A. The TM100 features integrated probe and lead storage, an integral upright stand for bench use, and is supplied in a zipped pouch with carry strap.
A. Yes. Alternative multimeters available include MM01, MM03, MM102, and MM18, each offering different functions or specifications. Please check the individual product pages or contact Parts for Machines to find the best match for your requirements.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes. Parts for Machines supplies genuine Sealey products.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
