Product Number: 01950

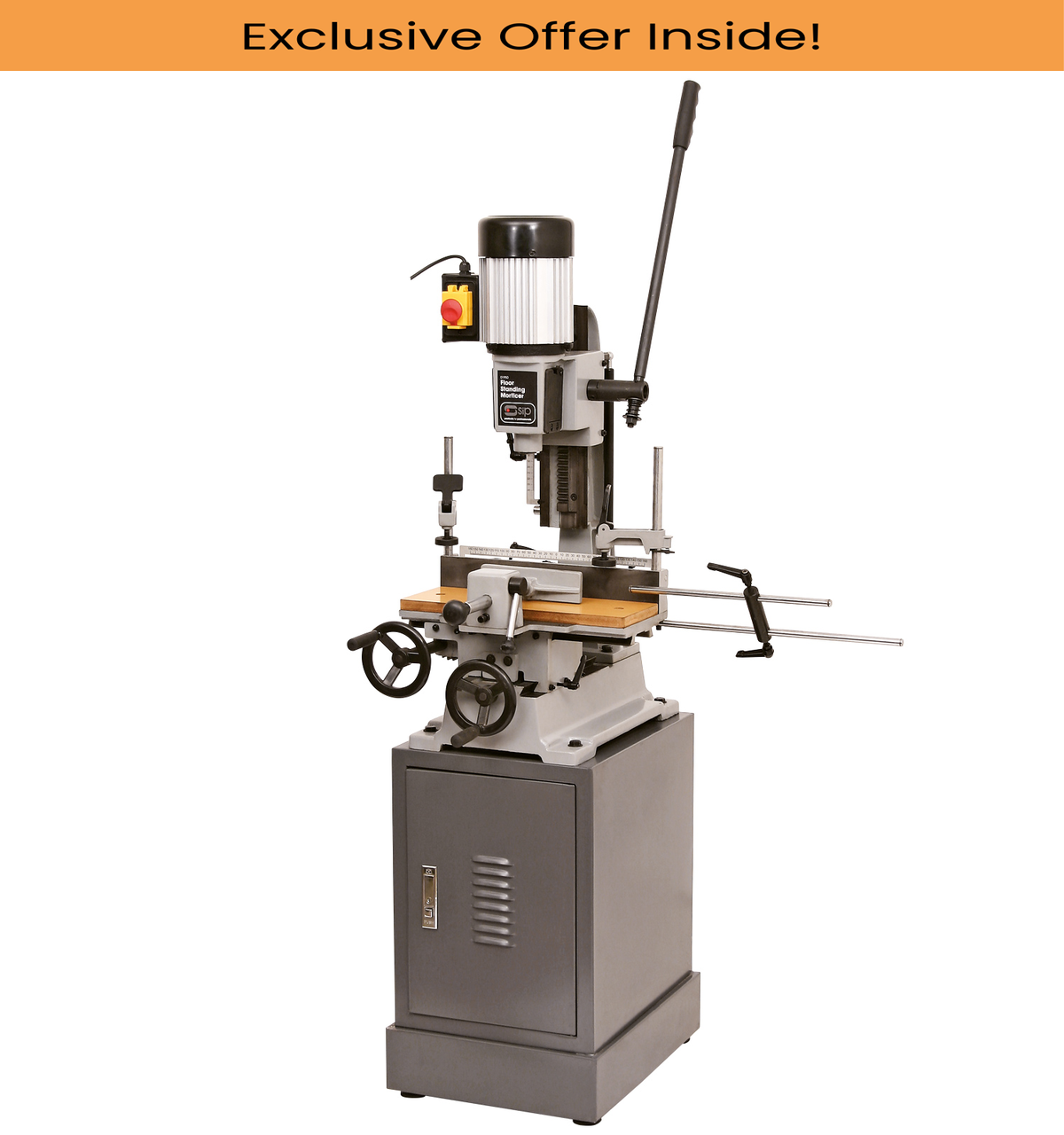

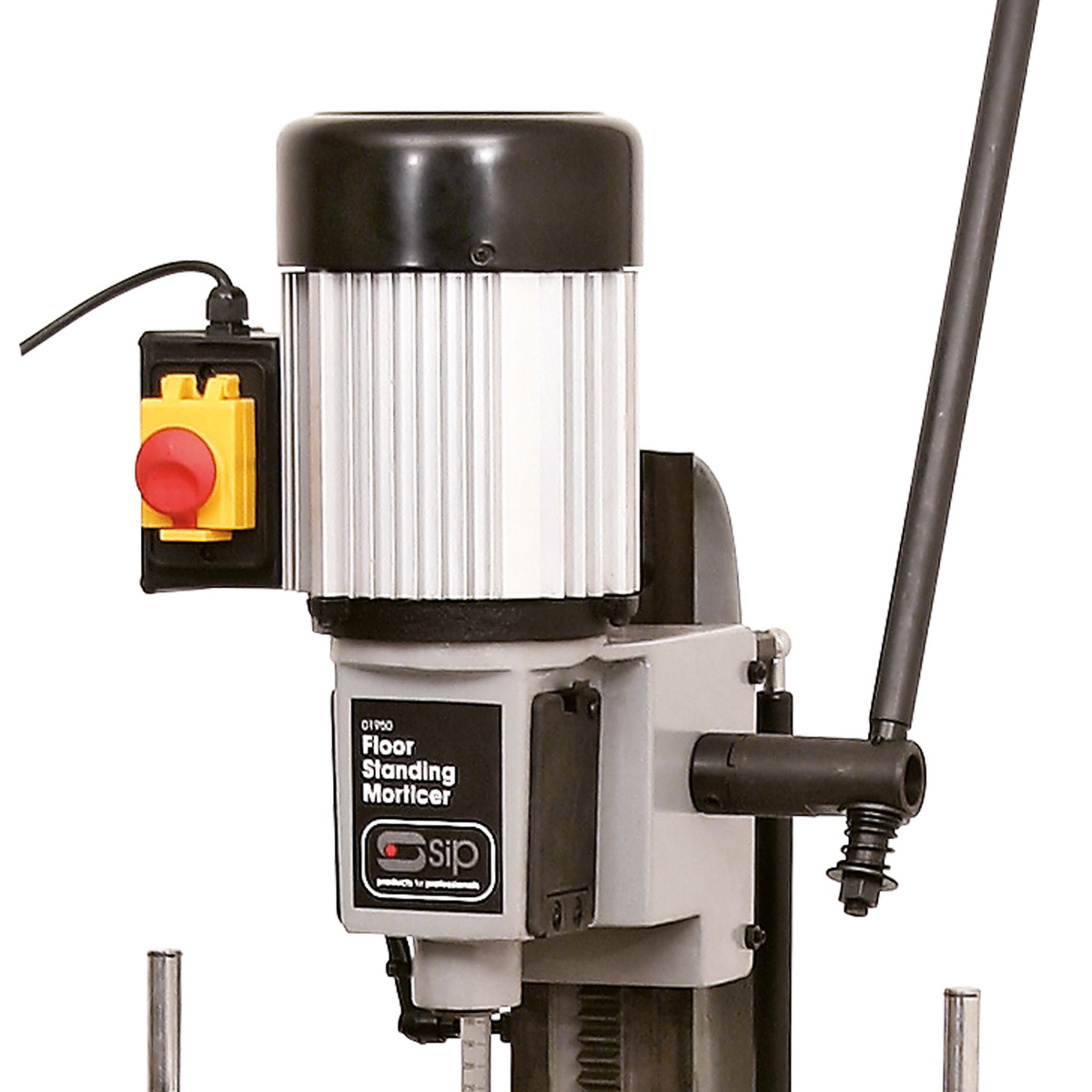

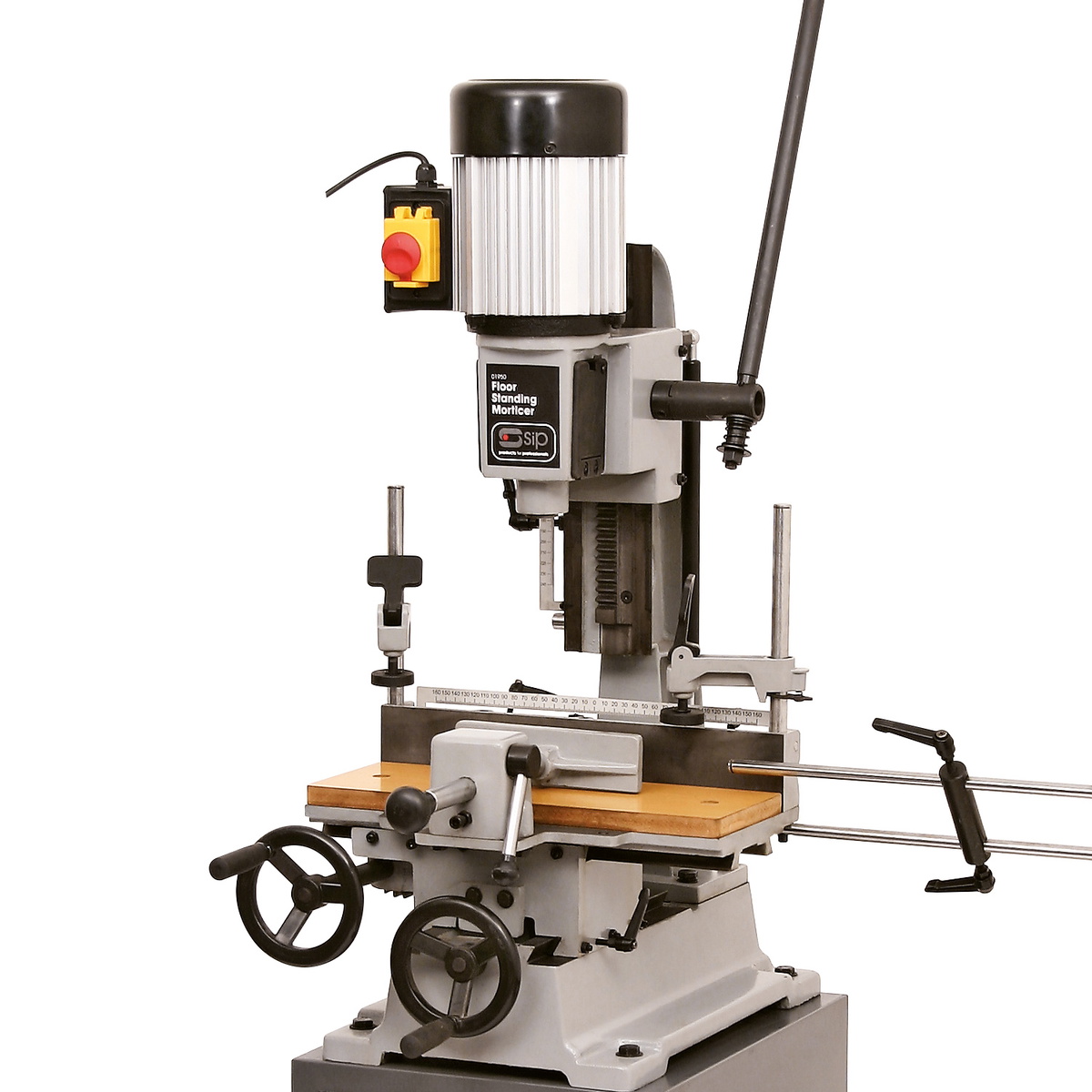

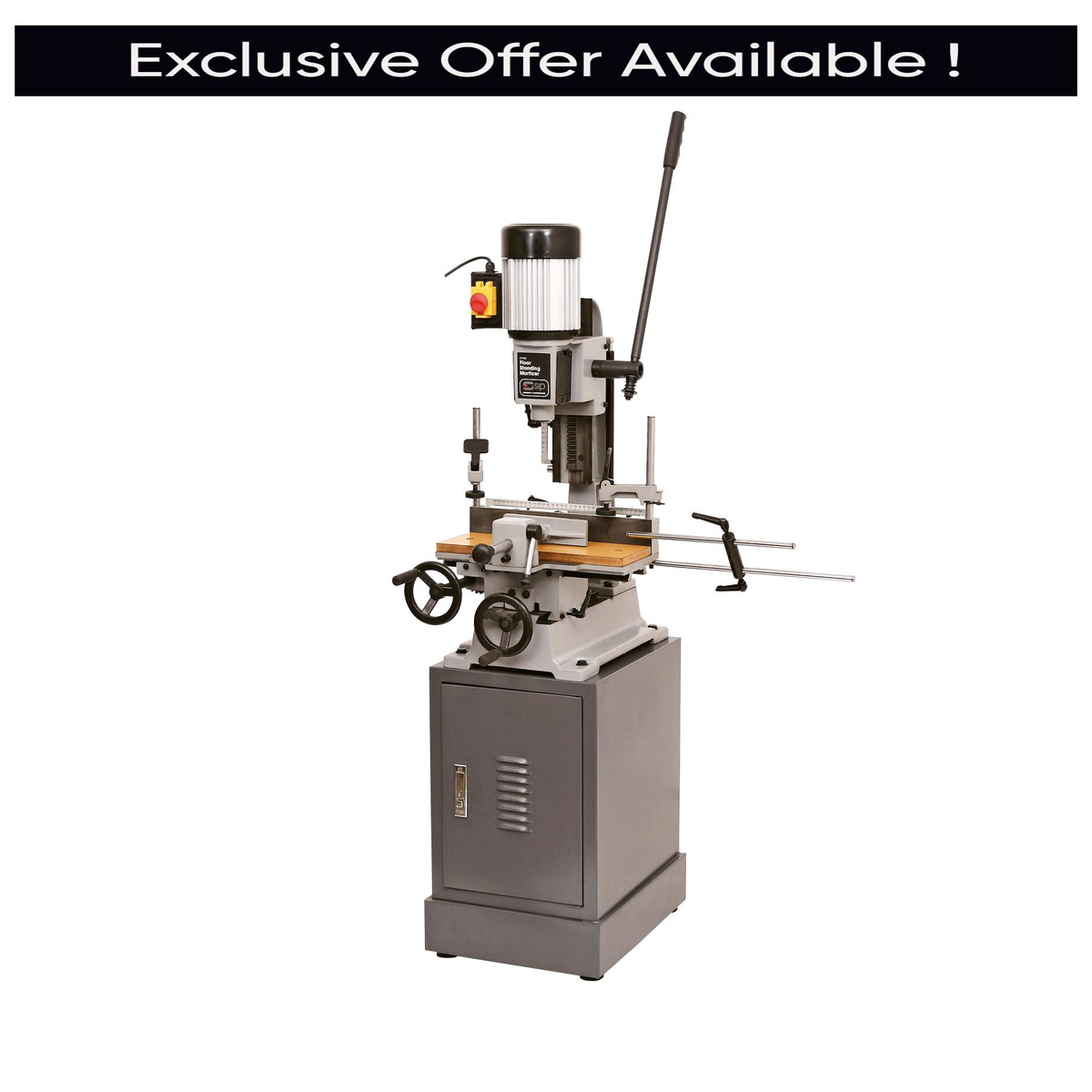

The SIP 01950 Bench Morticer with Cabinet is a heavy-duty woodworking machine designed to cut square or rectangular holes into timber for joinery, cabinet making, furniture production and hobbyist projects. Powered by a 750W (1hp) motor running at 1400rpm on a standard 230V (13A) supply, it delivers consistent morticing performance across a wide range of timber applications.

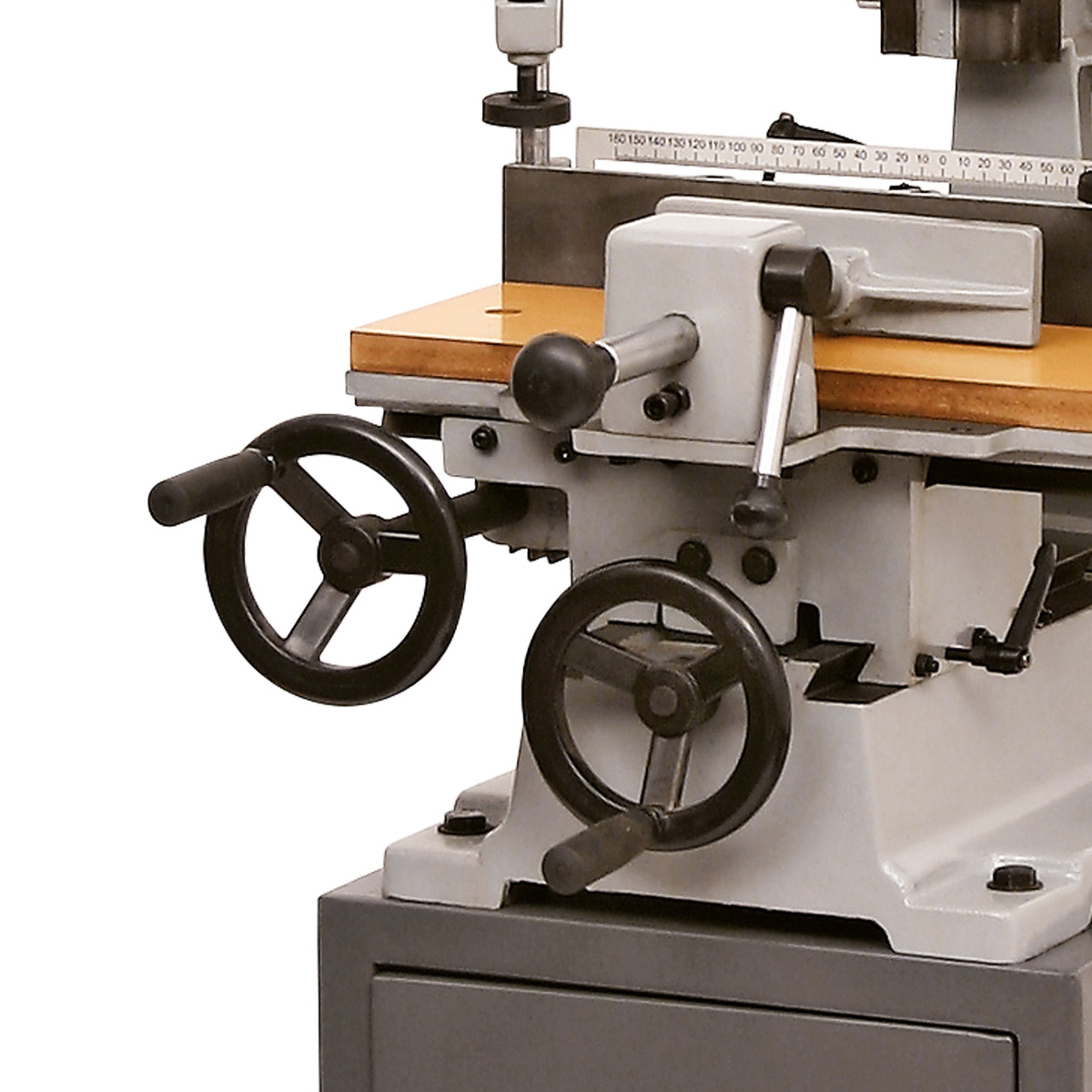

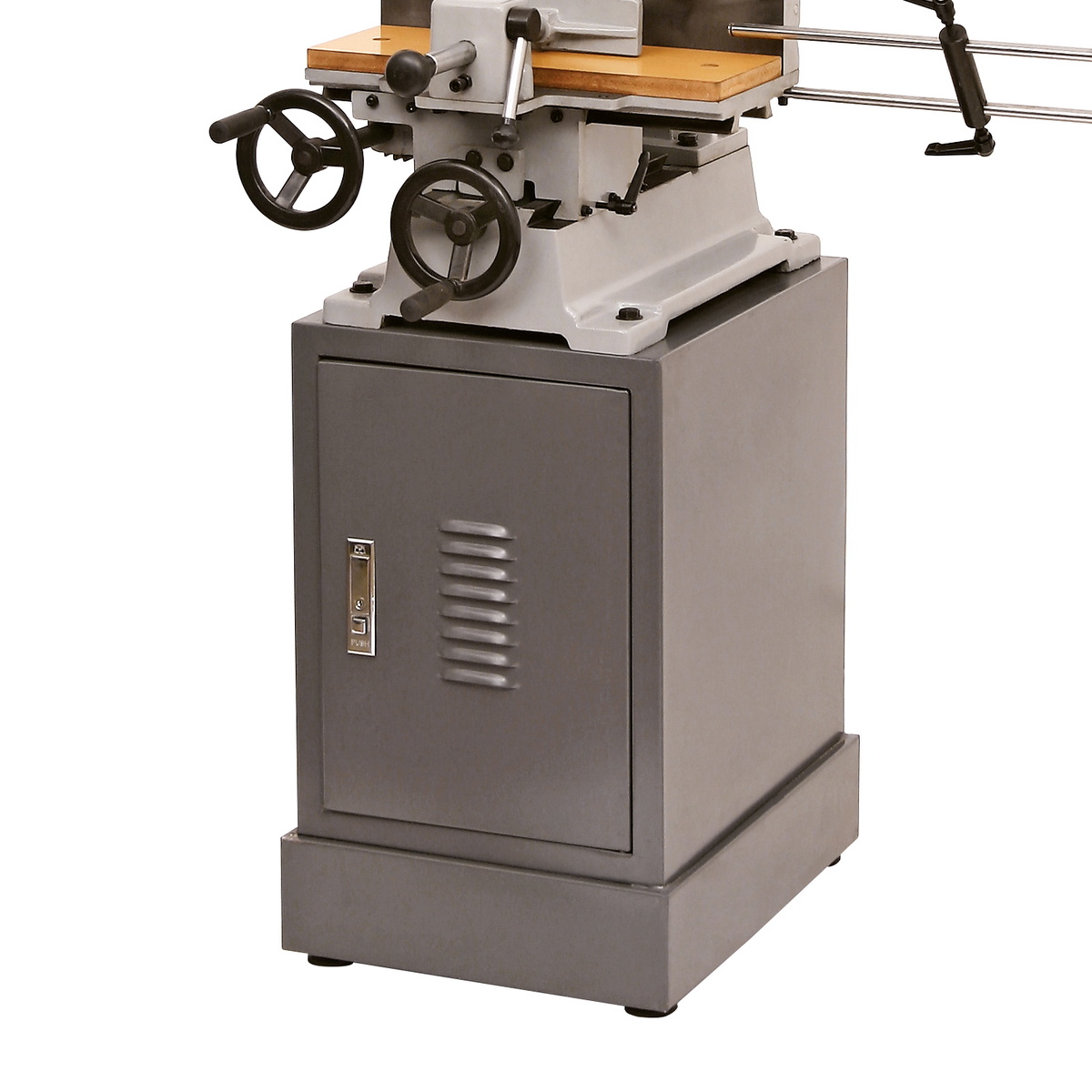

Constructed from heavy-duty cast iron for long-term durability, the machine incorporates a robust clamping system that keeps workpieces secure even during demanding tasks. The work table measures 400mm x 150mm, offering a generous surface area suitable for larger or irregularly shaped timber. Longitudinal and lateral table movement provides versatile positioning, while the integrated NVR (No Volt Release) switch adds an important layer of operational safety. The heavy-duty cabinet brings the machine to a comfortable working height, making it a practical floor-standing option for the professional workshop.
Morticing capacity spans 6mm to 26mm (1/4" to 1"), with a maximum chisel stroke of 210mm and a maximum spindle-to-fence distance of 140mm. The machine also doubles as a pillar drill: by substituting a drill bit for the morticing chisel (3mm minimum to 16mm maximum chuck capacity; drill bits not supplied), the maximum drilling capacity extends to 70mm. This dual-function capability adds considerable versatility to the workshop floor.
The SIP 01950 is well suited to furniture making — including tables, chairs, cabinets and wardrobes — as well as hinge and handle fitting, doors and window frames, beams and posts, fencing and railings.
The machine is supplied with a 2-Year Standard Silver Warranty from SIP. For contents, please refer to the product listing. Manufactured in China.
Additional Information:
The SIP Bench Morticer with Cabinet can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a floor-standing pillar drill, and utilises a heavy-duty clamp that helps to keep workpieces secure even in the most demanding tasks.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01950 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 750w (1hp) |
| Morticing Capacity | 6mm - 26mm (1/2" - 1") |
| Max. Chisel Stroke | 210mm |
| Max. Spindle to Fence | 140mm |
| Max. Drilling Capacity | 70mm |
| Chuck Capacity | 16mm |
| Work Table Size | 400mm x 150mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
06827 | SIP 06827 3pc Chisel & Bits Set | 1 Unit |
£38.13
£37.38
|
Add |
|
06829 | SIP 06829 4pc Chisel & Bits Set | 1 Unit |
£52.92
£51.88
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01944 Bench Morticer with Sliding Table
£443.12
£434.43
2% OFF
Free delivery in UK Mainland
|
SIP 01976 Electric Horizontal Log Splitter with Cage, Splitting Force - 5 Tonne, Log Diameter - Ǿ 50mm-250mm
£295.75
£289.95
2% OFF
Free delivery in UK Mainland
|
SIP 01475 10" Professional Heavy-Duty Wood Bandsaw
£363.27
£356.15
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 01944 | 01976 | 01443 | 01475 |
| Input Supply | 230 | 230 | 230 | |
| Motor Power | 370 | 2200 | 370 | |
| Cutting Height | 100 | |||
| Cutting Width | 245 | |||
| Diameter | 250 | |||
| Warranty | 24 | 24 | 24 | |
A. The SIP 01950 accepts morticing chisels from 6mm (1/4") to 26mm (1"), with a maximum chisel stroke of 210mm and a maximum spindle-to-fence distance of 140mm.
A. Yes. By replacing the morticing chisel with a drill bit, the machine functions as a floor-standing pillar drill. The chuck accepts drill bits from 3mm minimum to 16mm maximum, and the maximum drilling capacity is 70mm. Drill bits are not supplied with the machine.
A. The machine operates on a standard 230V (13A) single-phase supply, making it suitable for direct connection to a standard UK workshop socket.
A. The work table measures 400mm x 150mm. The table also offers versatile longitudinal and lateral movement to suit different workpiece sizes and positions.
A. It is designed for joinery, cabinet making, and furniture production including tables, chairs, wardrobes and cabinets. It is also suitable for fitting hinges and handle systems, working on doors and window frames, beams and posts, fencing and railings, as well as DIY and hobbyist projects.
A. Yes. The machine is fitted with an integrated NVR (No Volt Release) switch, which prevents unintended restart after a power interruption, providing increased safety in the workshop.
A. The SIP 01950 is covered by SIP's 2-Year Standard Silver Warranty.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.,
