Product Number: 01940
Variations

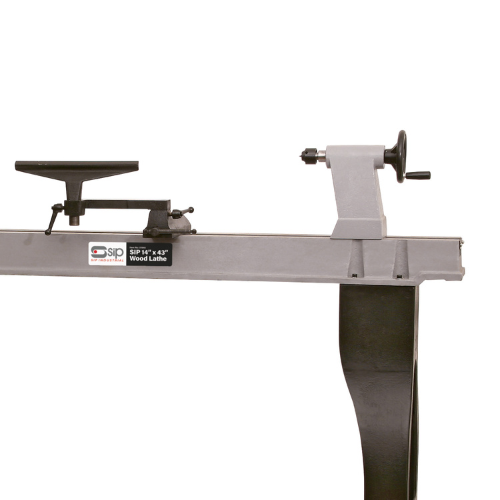

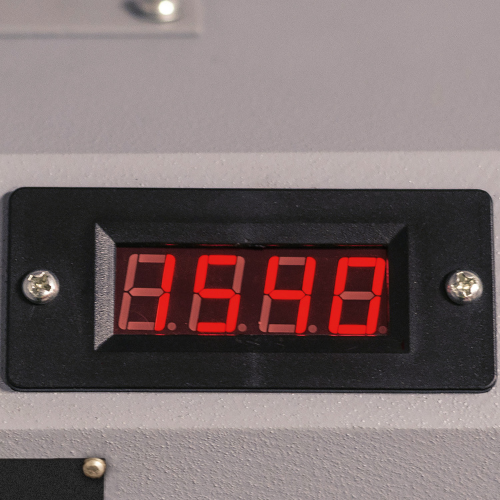

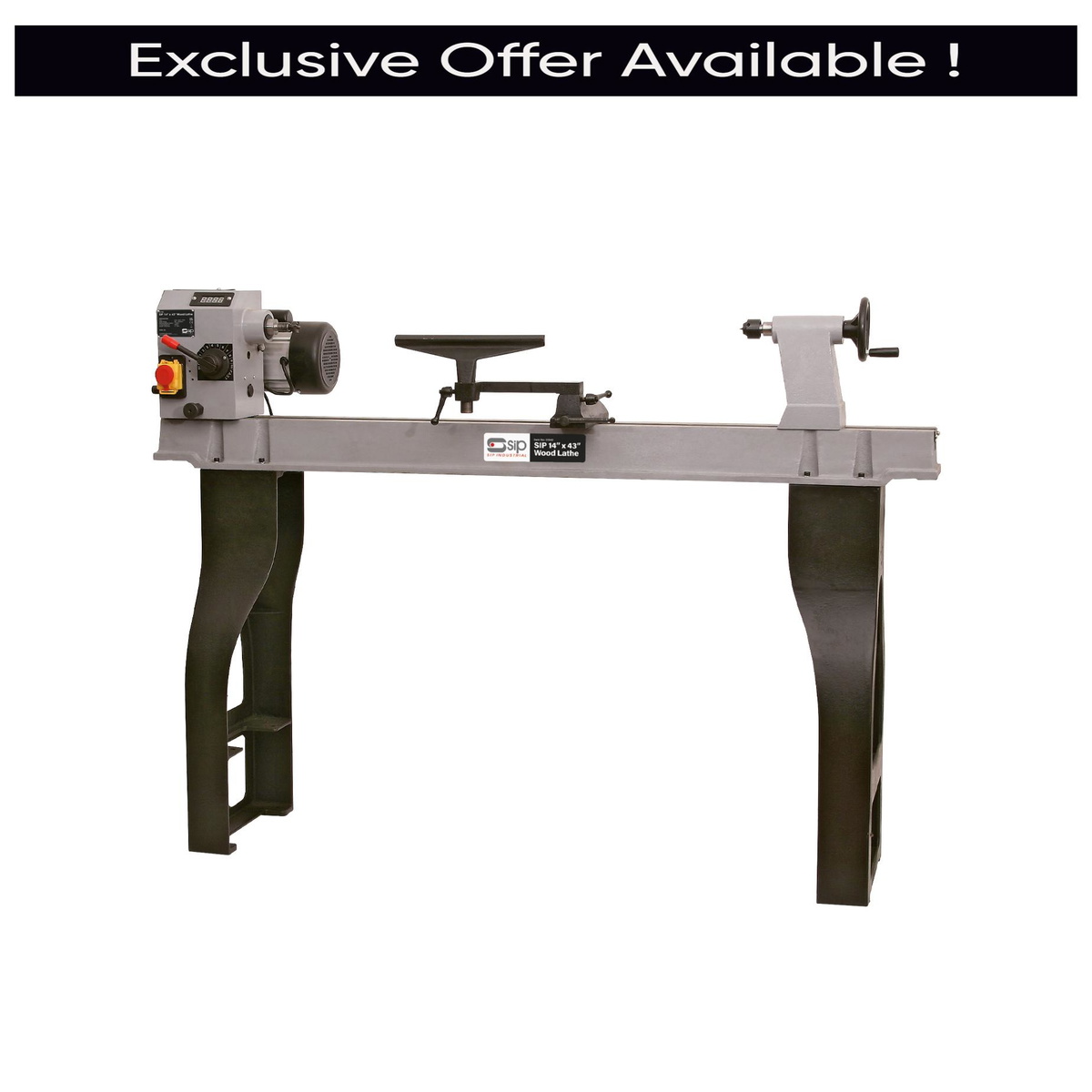

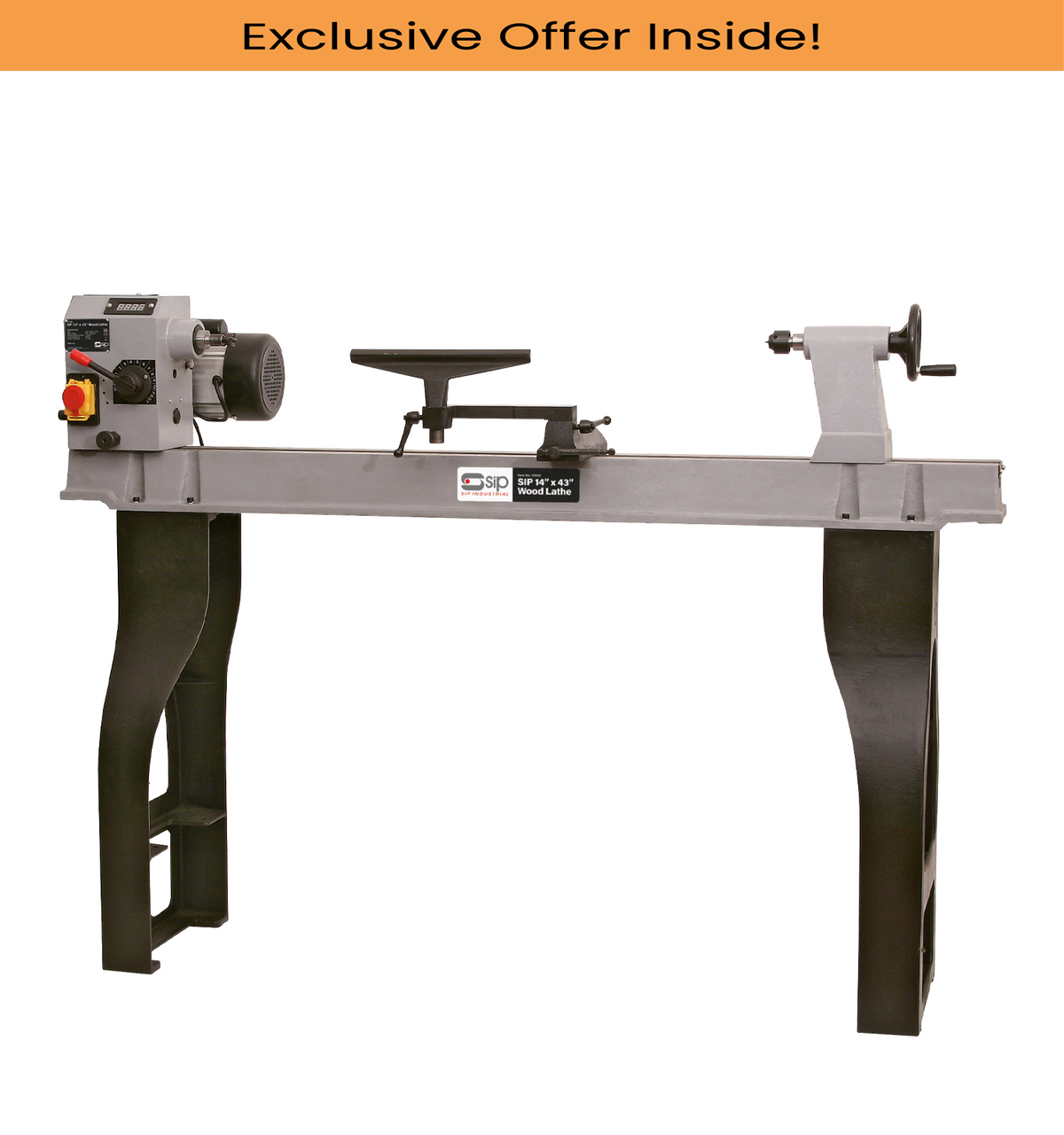

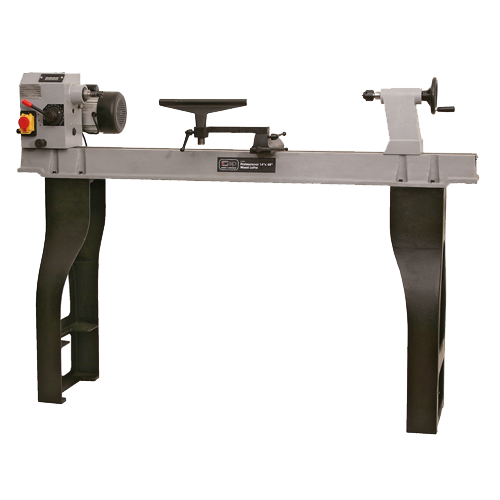

The SIP 01940 is a 14" x 43" Swivel Head Wood Lathe designed for woodturners seeking a robust and adaptable machine capable of accurately shaping, turning, drilling and sanding workpieces to a precise specification. Running from a 230V single-phase supply, the 750W (1hp) variable speed motor delivers a speed range of 500rpm to 2000rpm, with an easy-change speed handle offering 10 settings and a digital speedometer display providing an accurate readout of headstock spindle speed at all times.

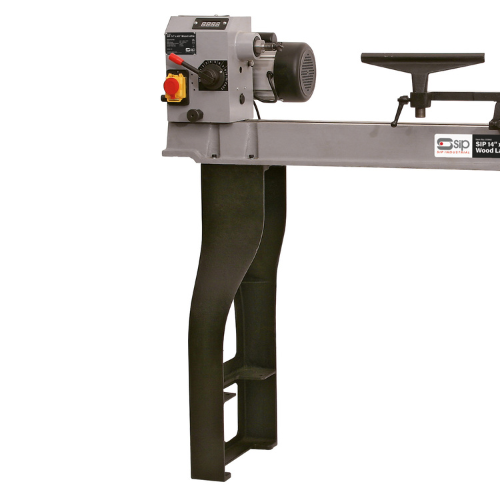

The headstock features a 360° swivel action with four locking positions, allowing outboard turning of larger wood materials with confidence. The lathe bed, headstock, tailstock and legs are all manufactured from heavy-duty cast iron, maximising rigidity and eliminating bed flex during operation. The headstock is fitted with an MT1 Morse Taper and the tailstock with an MT2 Morse Taper, ensuring an assured hold to the workpiece. A hollow tailstock design allows long-hole boring for added versatility, while the 3/4" x 16TPI spindle thread accommodates a wide range of turning attachments.
With a 350mm (14") turning capacity and 1100mm (43") between centres, the 01940 is equally suited to soft and hard woods, making it ideal for furniture legs, staircase spindles and bespoke woodwork projects. The spindle through hole measures 10mm on both drive and tailstock sides. Noise output is rated at 68dB(A). Net weight is 130kg and the machine dimensions are 1600(H) x 1160(W) x 450mm(D).

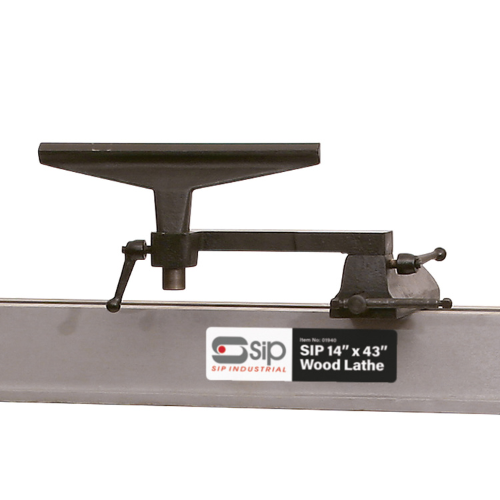

The lathe is supplied with a tool rest, 6" faceplate, drive centre and tailstock centre. It is backed by the SIP 2-Year Standard Silver Warranty and is manufactured to a professional finish throughout.
Additional Information:
The SIP 14" x 43" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification. For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock and tailstock are also manufactured to a professional finish from heavy-duty cast iron. The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control. Supplied with tool rest, 6" faceplate, drive and tailstock centres. Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01940 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 750w (1hp) |
| Speed Range | 500rpm - 2000rpm |
| Distance Between Centres | 1100mm (43") |
| Turning Capacity | 350mm (14") |
| Spindle Through Hole | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size | 1 Morse Taper |
| Tailstock Rotating Centre Size | 2 Morse Taper |
| Noise Level | 68dB(A) |
| Net Weight | 130.00kg |
| Gross Weight | 154.00kg |
| Product Dimensions | 1600(H) x 1160(W) x 450mm(D) |
| Packaged Dimensions | 1625(H) x 520(W) x 405mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
06853 | SIP 06853 4" Chuck 3/4" x 16TPI for Wood Lathes | 1 Unit |
£92.72
£90.90
|
Add |
|
06851 | SIP 06851 2" Chuck - 3/4" x 16TPI | 1 Unit |
£187.06
£183.39
|
Add |
|
06857 | SIP 06857 6pc Chisel Set | 1 Unit |
£113.77
£111.54
|
Add |
|
62360 | SIP 62360 V-Belt For 01940 | 1 Unit |
£24.10
£23.63
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01458 14" x 40" Starter Wood Lathe w/ Chisel Kit
£166.78
£163.51
2% OFF
Free delivery in UK Mainland
|
SIP 01475 10" Professional Heavy-Duty Wood Bandsaw
£363.27
£356.15
2% OFF
Free delivery in UK Mainland
|
SIP 01477 12" Professional Heavy-Duty Wood Bandsaw
£729.50
£715.20
2% OFF
Free delivery in Channel Island
|
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 01936 | 01458 | 01475 | 01477 |
| Length (mm) | 432 | 1016 | 350 | 400 |
| Motor Power | 550w (0.75hp) | 370w (0.5hp) | 370w (0.5hp) | 750w (1hp) |
| Voltage (V) | 230 | 230 | 230 | 230 |
A. The SIP 01940 has a turning capacity of 350mm (14") and a distance between centres of 1100mm (43"), making it suitable for a broad range of woodturning projects including furniture legs and staircase spindles.
A. The variable speed motor runs between 500rpm and 2000rpm. The easy-change speed handle provides 10 settings and a digital speedometer display gives an accurate readout of headstock spindle speed during operation.
A. The headstock is fitted with an MT1 (1 Morse Taper) and the tailstock with an MT2 (2 Morse Taper), providing an assured hold to the workpiece when turning.
A. Yes. The headstock features a 360° swivel action with four locking positions, allowing outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to maximise stability during outboard turning operations.
A. The spindle thread size is 3/4" x 16TPI, which allows the use of various turning attachments. The spindle through hole is 10mm on both the drive and tailstock sides.
A. Yes. The lathe is confirmed as suitable for both soft and hard woods. Its heavy-duty cast iron construction — bed, headstock, tailstock and legs — ensures turning stability and accuracy across both material types.
A. The SIP 01940 is supplied with a tool rest, 6" faceplate, drive centre and tailstock centre.
A. The SIP 01940 is covered by the SIP 2-Year Standard Silver Warranty.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
