Product Number: 01938

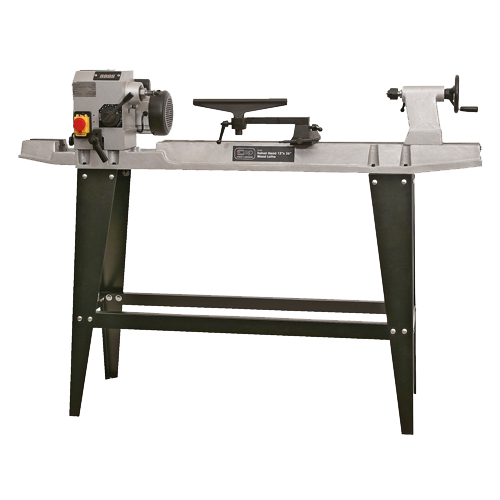

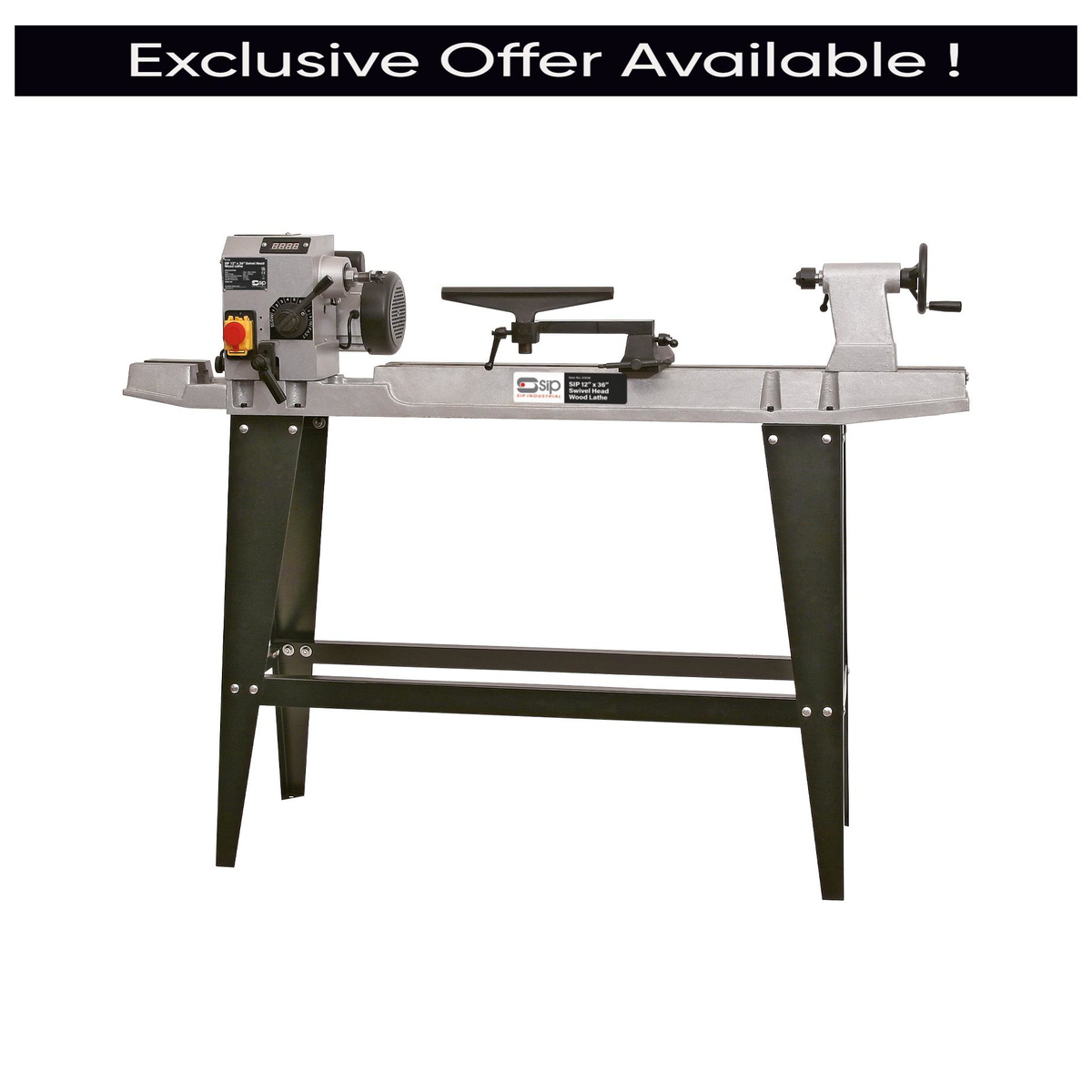

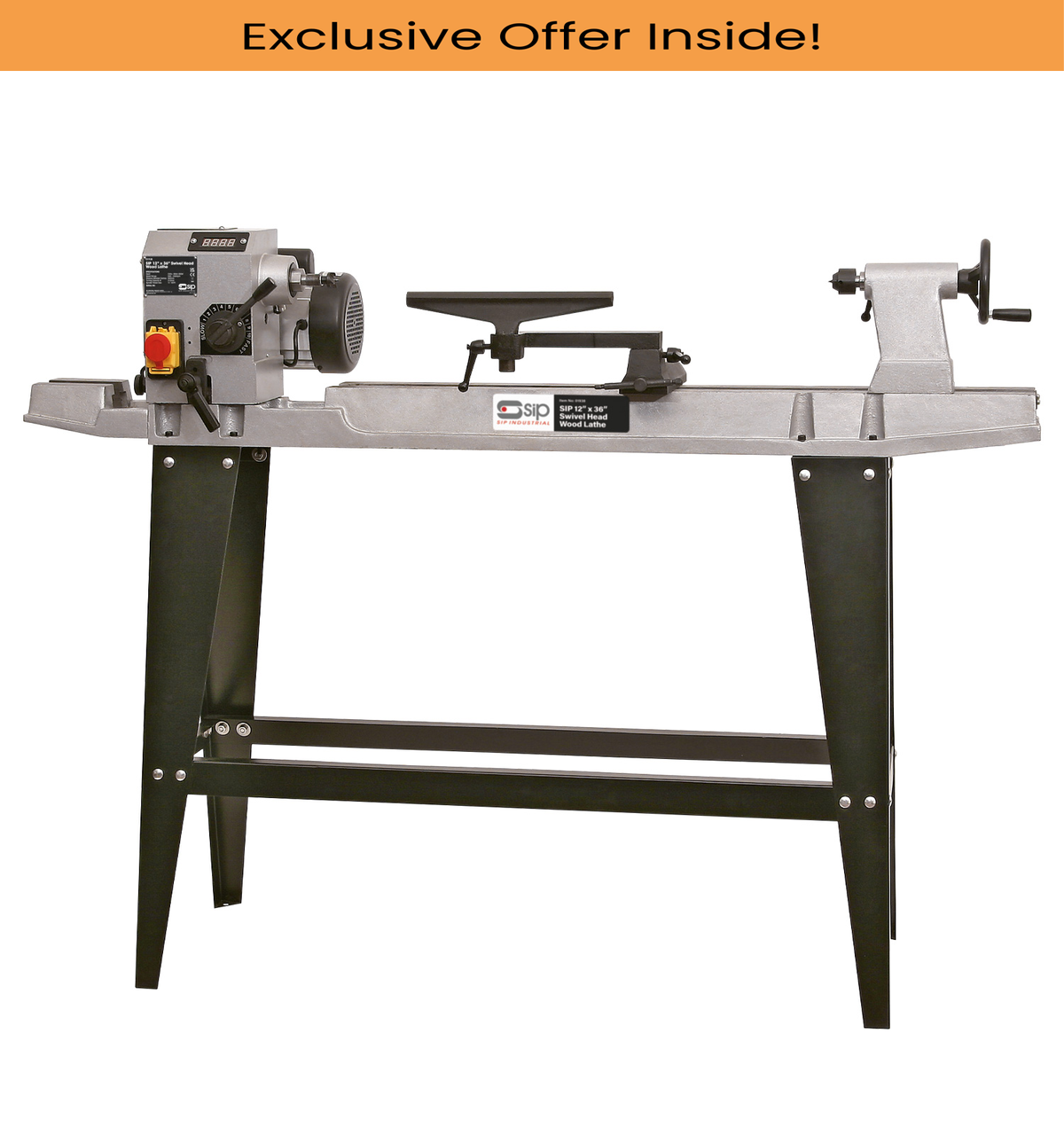

The SIP 01938 12" x 36" Swivel Head Wood Lathe is a robust and adaptable machine tool designed for woodturning applications in the professional or serious workshop. Running on a 230 V (13 A) single-phase supply with a 550 W (0.75 hp) variable speed motor, it delivers a speed range of 500 rpm to 2000 rpm across ten selectable settings, giving the operator precise control throughout every stage of turning, shaping, drilling and sanding.

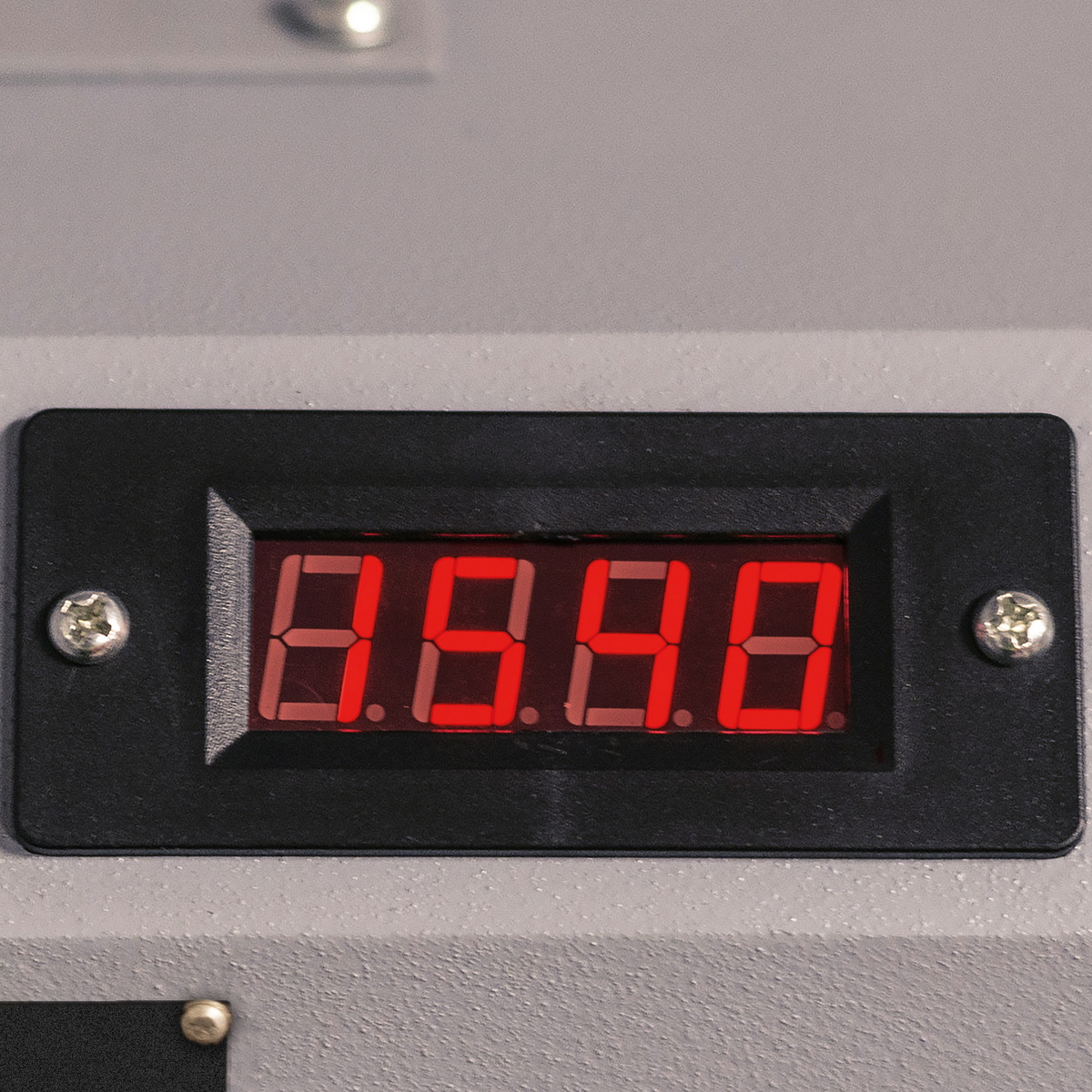

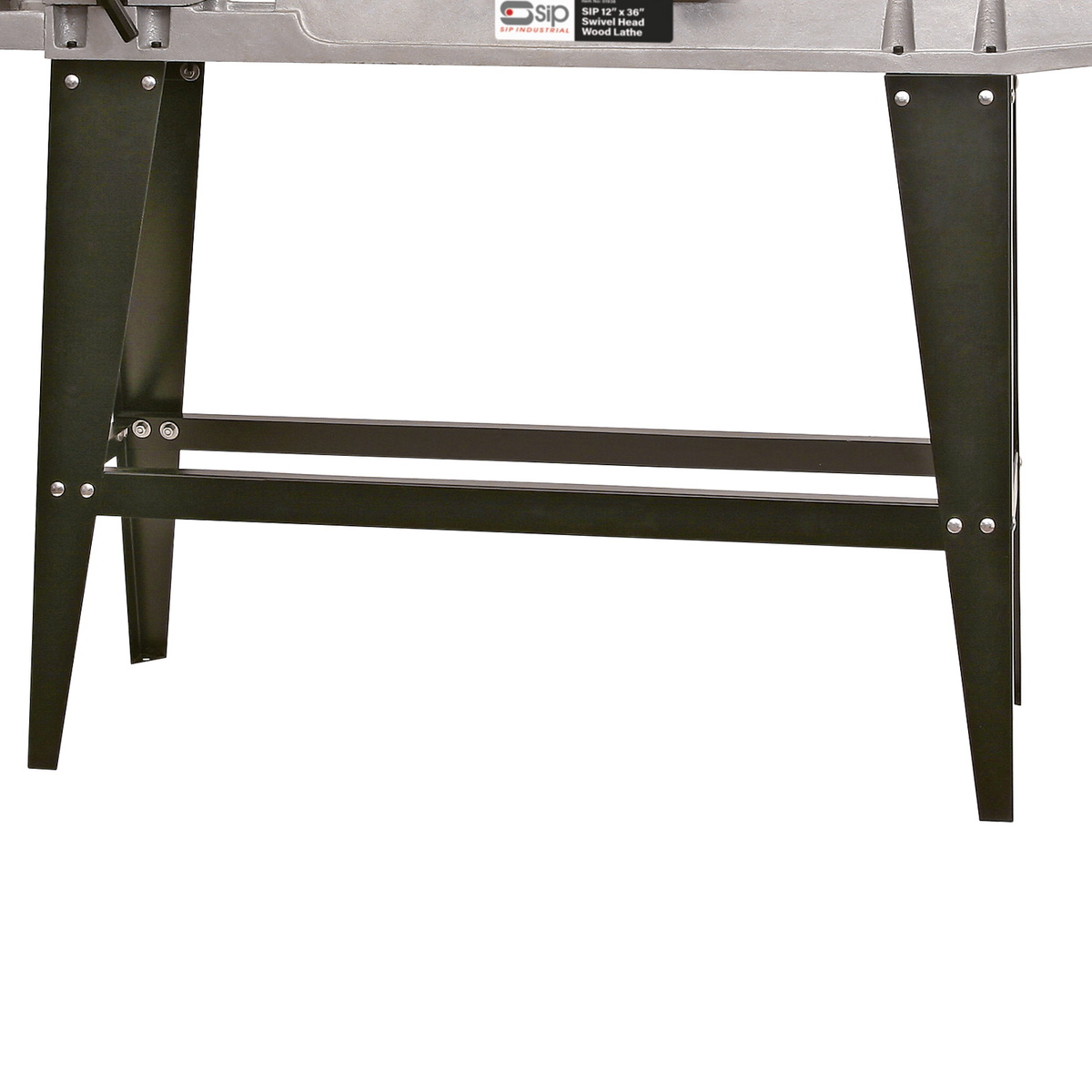

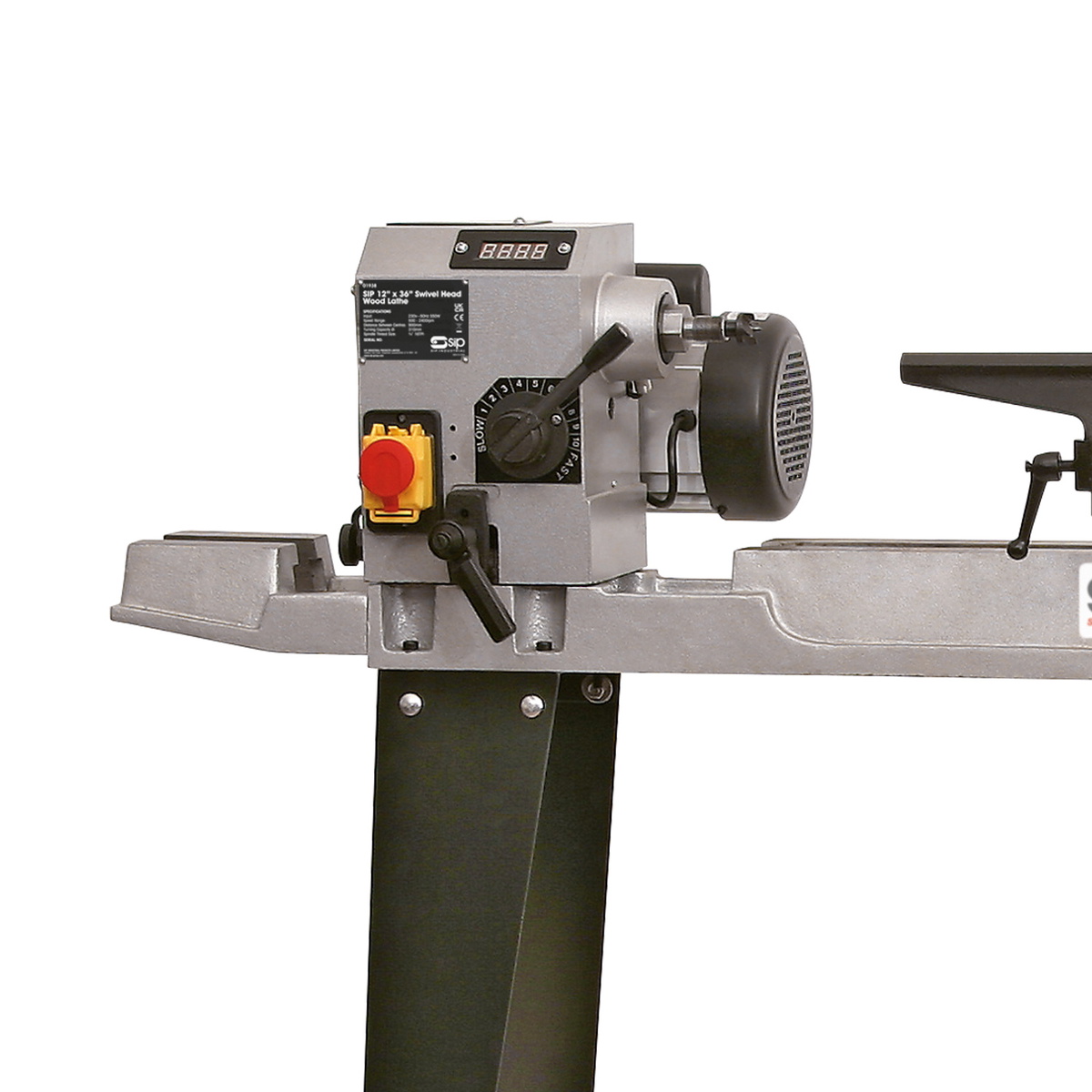

A 360° swivel headstock with four locking positions allows outboard turning of larger workpieces, extending the practical versatility of the machine well beyond standard in-bed turning. The headstock carries an MT1 Morse taper and is fitted with a hollow tailstock — which accepts an MT2 Morse taper rotating centre — for long-hole boring capability. The lathe bed, headstock and tailstock are manufactured from heavy-duty cast iron to a professional finish, whilst pressed steel legs with cross braces further support stability and accuracy during operation. A digital speedometer display provides a continuous, accurate readout of headstock spindle speed, complementing the easy-change speed handle for swift adjustments without interrupting workflow.
With a turning capacity of 310 mm (12") and a distance between centres of 900 mm (36"), the SIP 01938 is well suited to furniture legs, staircase spindles and bespoke woodwork items in both soft and hard woods. The spindle through-hole measures 10 mm on both the drive and tailstock sides, and the machine operates at a measured noise level of 68 dB(A). Net weight is 77 kg and overall dimensions are 1120 (H) × 1510 (W) × 475 mm (D).
The SIP 01938 is supplied complete with a tool rest, 6" faceplate, and drive and tailstock centres, providing the essential tooling needed to begin turning straight from unpacking. The machine is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification. For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. The lathe bed, headstock and tailstock are manufactured to a professional finish from heavy-duty cast iron. Pressed steel legs with cross braces also help to maintain stability. The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control. Supplied with tool rest, 6" faceplate, drive and tailstock centres. Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01938 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 550w (0.75hp) |
| Speed Range | 500rpm - 2000rpm |
| Distance Between Centres | 900mm (36") |
| Turning Capacity | 310mm (12") |
| Spindle Through Hole | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size | 1 Morse Taper |
| Tailstock Rotating Centre Size | 2 Morse Taper |
| Noise Level | 68dB(A) |
| Net Weight | 77.00kg |
| Gross Weight | 85.00kg |
| Product Dimensions | 1120(H) x 1510(W) x 475mm(D) |
| Packaged Dimensions | 1510(H) x 1120(W) x 370mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SM1100 Wood Lathe 10-Speed 1100mm Centres 550W
£505.94
£496.02
2% OFF
Free delivery in UK Mainland
|
Clarke CWL1000CF 40" 1000mm Wood Lathe with Variable Speed & Copy Follower (230V)
£541.57
£530.95
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01936 | SM1308 | SM1100 | 6500689 | 01940 | SM2503 |
| Type | Wood Lathe | Wood Lathe | Wood Lathe | Wood Lathe | Wood Lathe | |
| Distance Between Centres | 432mm (17") | 1000mm | 1100mm | 1000 | 1100mm (43") | 250mm |
| Length (mm) | 432 | 1000 | 1100 | 1100 | 140 | |
| Motor Power | 550w (0.75hp) | 370W - 230V | 550W - 230V | 750w (1hp) | 2 x 150W - 230V | |
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | |
| Weight (kg) | 30 | 00 | 85 | 00 | 39.2 | |
A. The SIP 01938 has a turning capacity of 310 mm (12") and a distance between centres of 900 mm (36"), making it suitable for a wide range of woodturning projects including furniture legs and staircase spindles.
A. The variable speed motor runs between 500 rpm and 2000 rpm across ten selectable settings. Speed is set via an easy-change handle, and a digital speedometer display provides a continuous readout of headstock spindle speed.
A. The headstock rotates 360° and locks in four positions, enabling outboard turning of larger wood materials that would otherwise exceed the standard in-bed turning envelope.
A. The headstock uses an MT1 (1 Morse Taper) drive spur and the tailstock uses an MT2 (2 Morse Taper) rotating centre. The spindle through-hole is 10 mm on both the drive and tailstock sides.
A. The lathe bed, headstock and tailstock are manufactured from heavy-duty cast iron to a professional finish. The legs are pressed steel with cross braces to maintain stability and turning accuracy.
A. Yes. According to the product specification, the SIP 01938 is suitable for soft and hard woods and is designed for turning, shaping, drilling and sanding workpieces to a desired specification.
A. The SIP 01938 is supplied with a tool rest, a 6" faceplate, and drive and tailstock centres, providing the core tooling required to begin woodturning immediately.
A. The SIP 01938 is covered by the SIP 2-Year Standard Silver Warranty.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — see the linked spares and consumables on the product page, or contact us with your machine model.
