Product Number: 08260

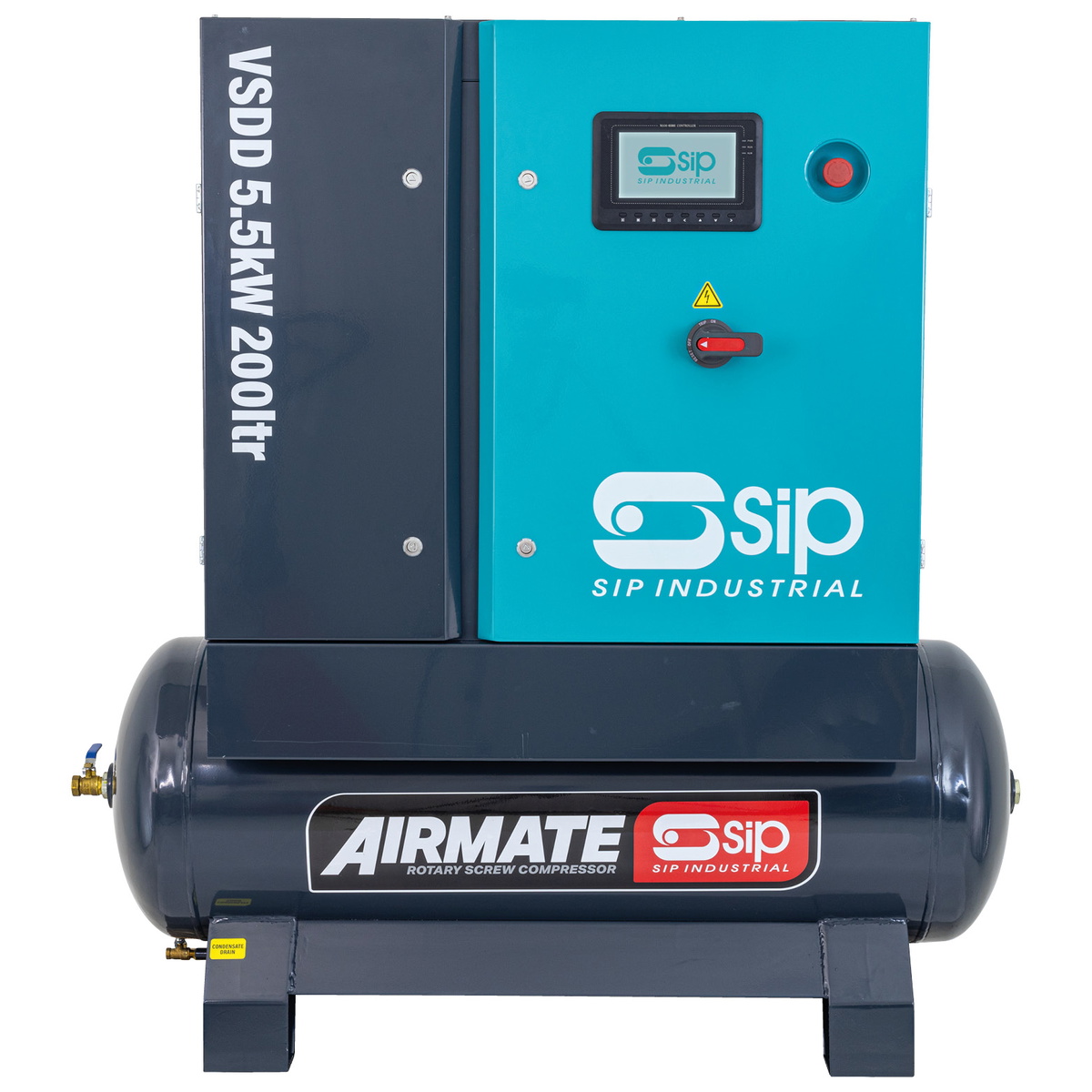

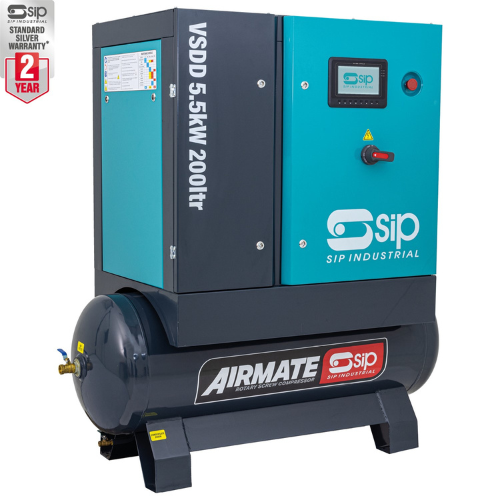

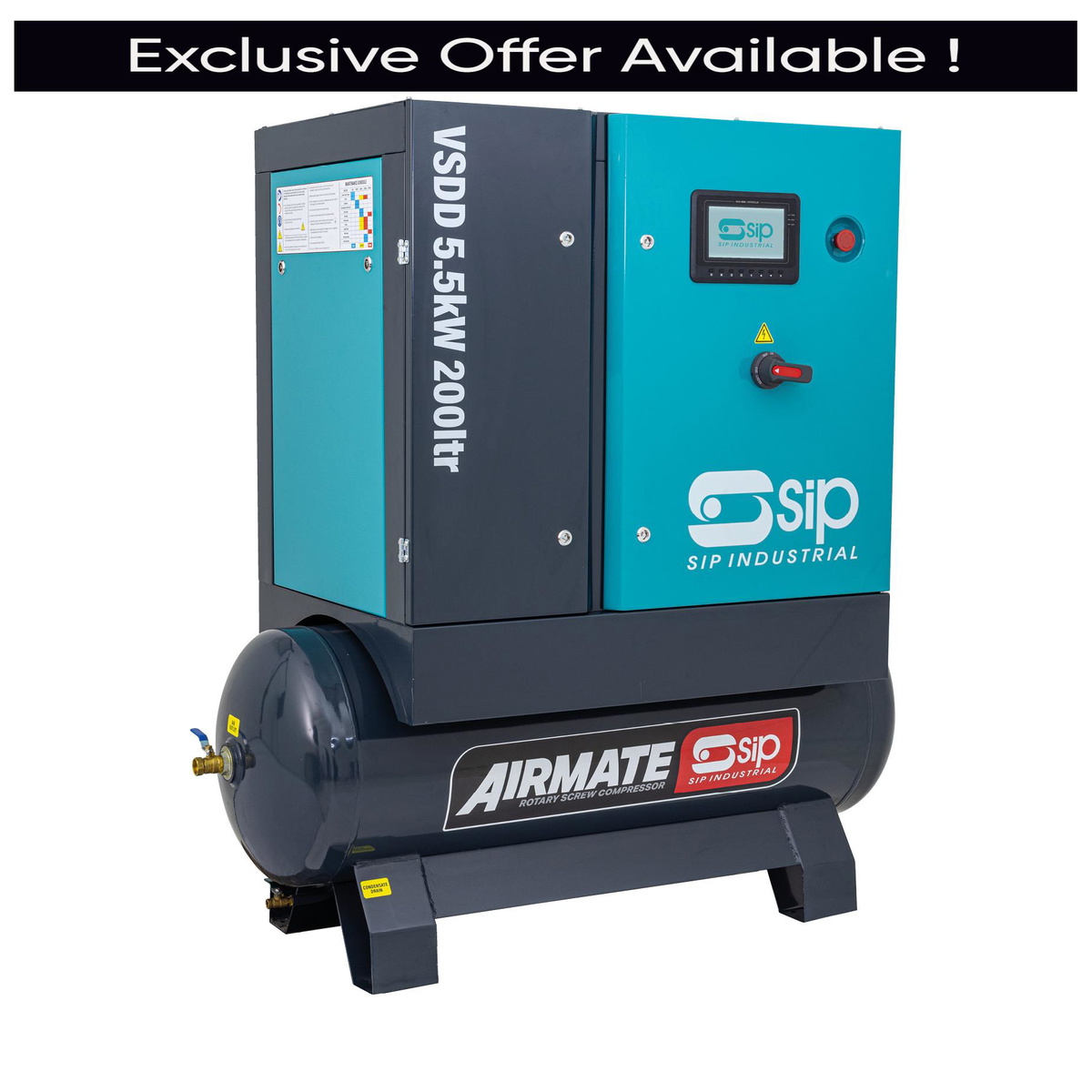

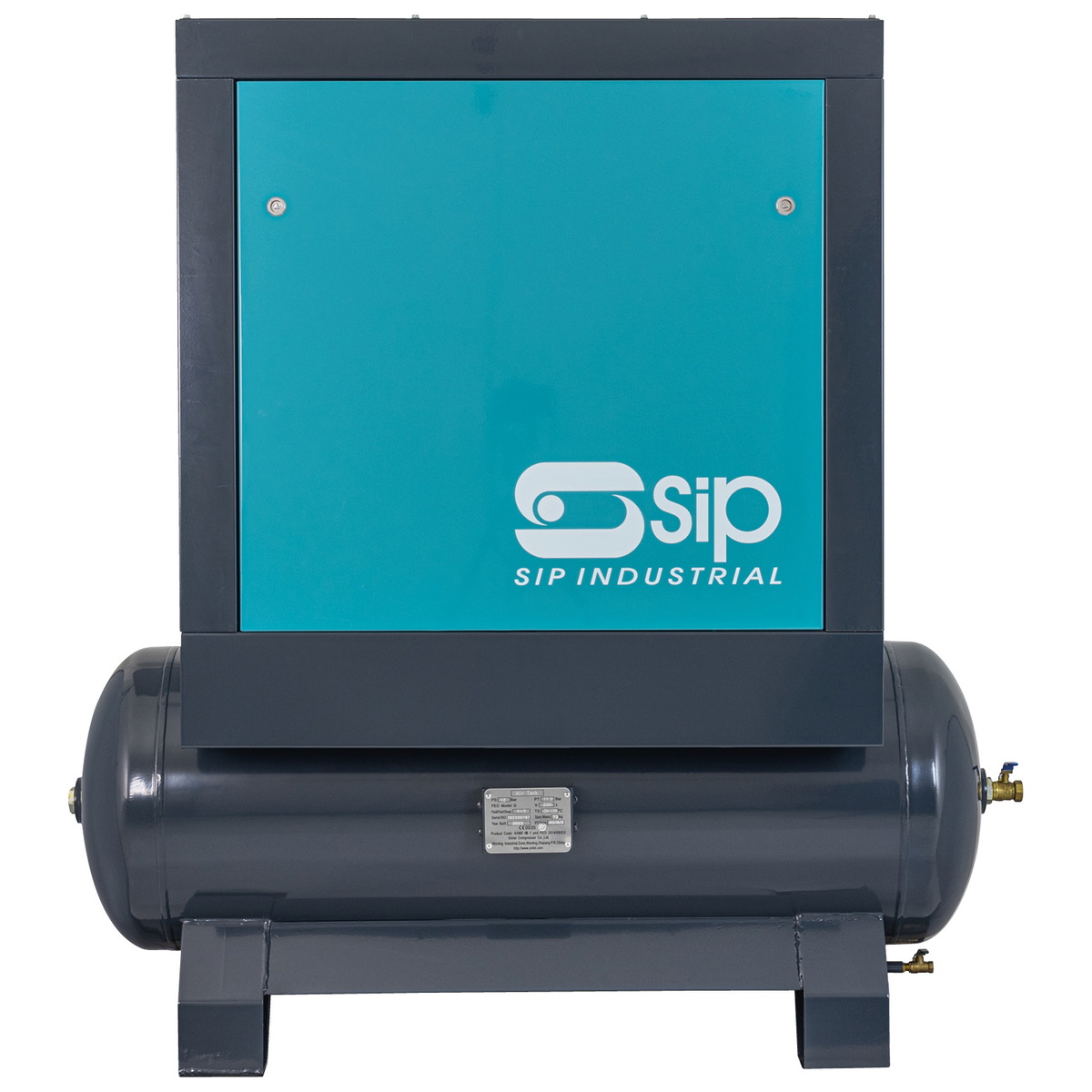

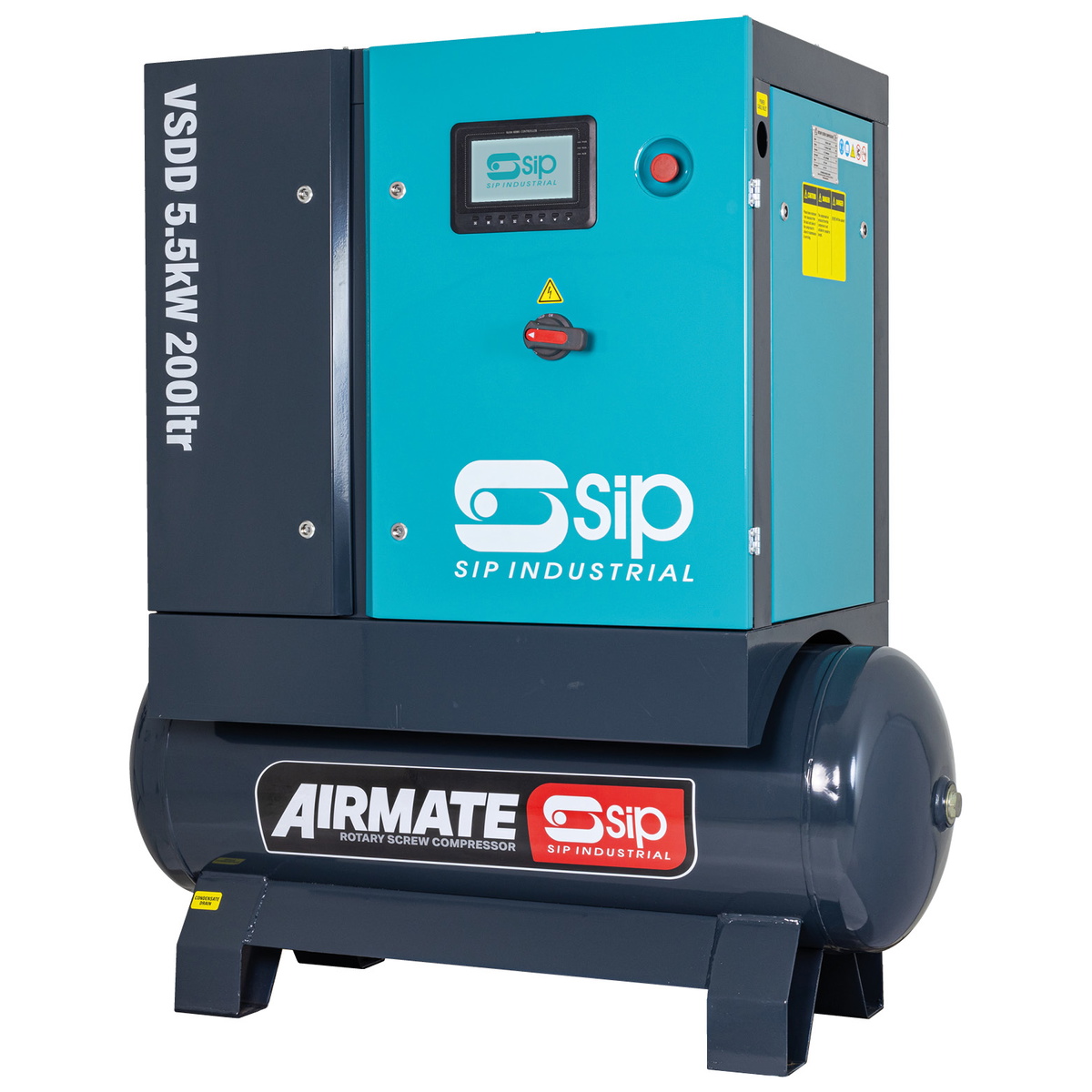

SIP 08260 VSDD Rotary Screw Compressor 5.5kW 200ltr 10 Bar provides variable speed, direct drive screw performance for users needing higher 10bar pressure. A 5.5kW (7hp) IE4 motor on 400v 3‑phase (32A) drives twin parallel rotary screws via a direct drive transmission, supplying 22CFM (630ltr/min) Free Air Delivery at up to 145psi (10bar) into a 200ltr receiver. The gearless drive maximises power transfer and reduces belt-related maintenance and losses. Inverter soft-start and slope-down control distribute torque evenly at start-up and manage load as the receiver reaches pressure, adjusting air output to suit real-time demand and lowering energy consumption. A heavy-duty silenced cabinet maintains low noise levels of around 62dB(A), while a colour touchscreen provides real-time diagnostics on receiver pressure, motor voltage, internal temperature and operating status. Easy access through a single cabinet panel simplifies servicing, and the compact all-in-one footprint keeps floor space use to a minimum. This VSDD compressor suits workshops and production areas needing efficient, quiet 10bar air from a 200L screw system.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08260 |
|---|---|
|
Input Supply 400v (32A)
|
|
| Rated Input | 7kW |
| Motor Power | 5.5kW (7hp) |
| IE4 Motor | Yes |
| Max. Pressure | 145psi (10bar) |
| Free Air Delivery (FAD) | 22CFM (630ltr/min) |
| Receiver Size | 200ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | N/A |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 62dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 08253 VSDD Rotary Screw Compressor, Tank Capacity - 160 Litre, Max. Air Pressure - 10 Bar
£3,045.55
£2,985.83
2% OFF
Free delivery in Channel Island
|
SIP 08257 VSDD Rotary Screw Compressor, Tank Capacity - 160 Litre, Max. Air Pressure - 8 Bar
£3,045.55
£2,985.83
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 08253 | 08257 | 2456600 | 2456290 |
| Warranty | 12 | 12 | ||
| Type | With Dryer | |||
| Capacity (L) | 160 | 160 | 500 | 200 |
| Drive Size (Inch) | 3/4 | 3/4 | ||
| Maximum Pressure (bar) | 10 | 8 | 10 | |
| Power (kW) | 7 | 7 | ||
| Receiver Size | 160ltr | 160ltr | ||
| Show More | ||||
A. It is a variable speed, 5.5kW direct-drive rotary screw compressor with 200ltr receiver, 22CFM FAD and 10bar maximum pressure.
A. It offers about 22CFM free air, around 630 litres per minute, for continuous 10bar air in medium-sized workshops.
A. The unit runs on a 400v, 32A three-phase supply suitable for industrial plants and large workshops.
A. Gearless direct drive eliminates belt slip, reduces maintenance, improves reliability and lowers energy losses versus belt-driven compressors.
A. Inverter control allows soft-start, controlled slope-down and on-demand air production, distributing torque evenly and reducing machine wear.
A. It provides significant air storage, helping maintain stable 10bar pressure and handle short-term demand peaks.
A. The silenced cabinet and fan cooling keep noise close to 62dB(A), which is relatively quiet for a 5.5kW, 10bar screw compressor.
A. It shows operational status, load state, receiver pressure, motor voltage and internal temperature, enabling informed management and diagnostics.

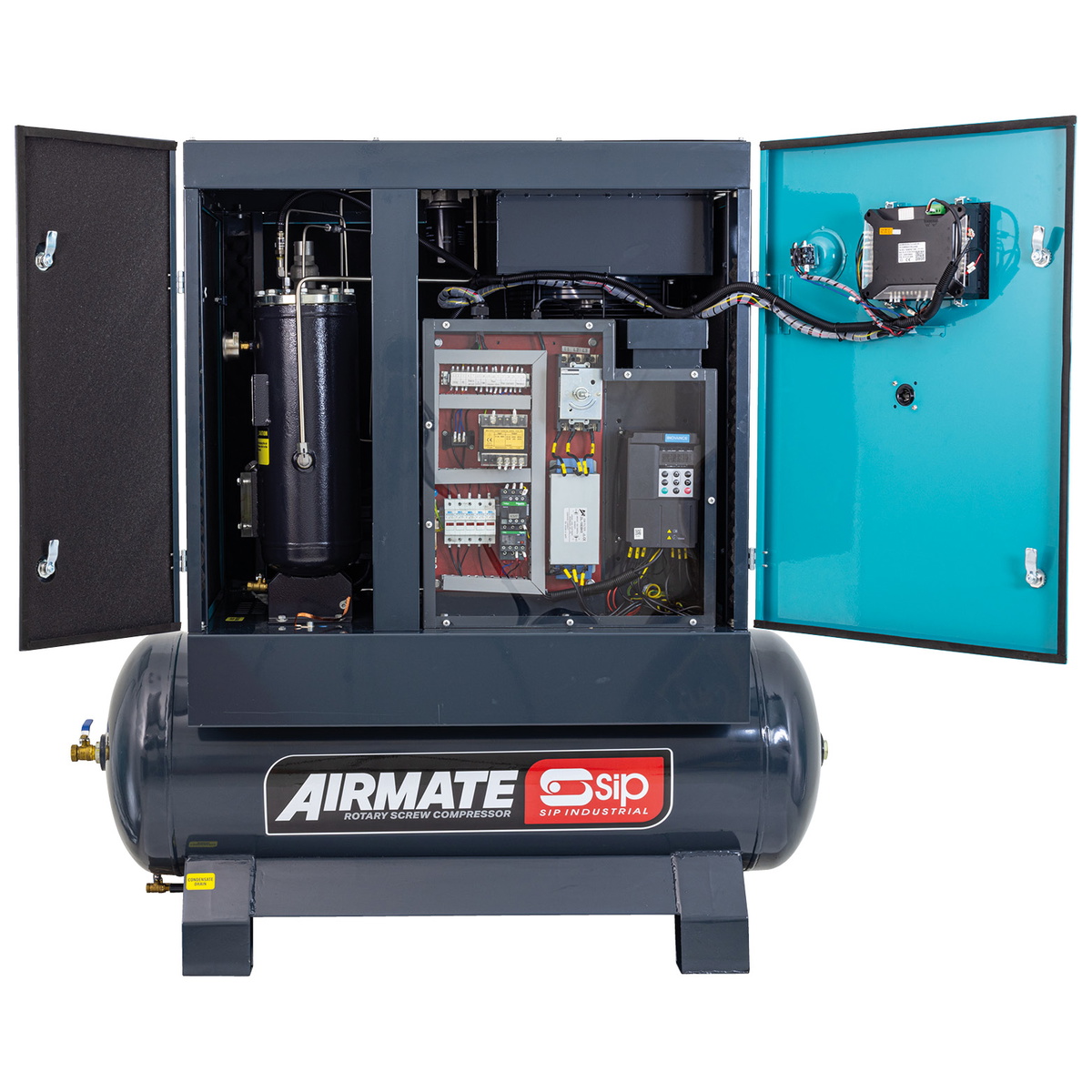

A. All critical components sit behind a single cabinet panel, simplifying maintenance and reducing downtime during servicing.
A. It is suitable for spray shops, automotive and industrial environments where consistent 10bar air is required across various tools.
A. The IE4 motor improves efficiency, lowering energy usage and operating costs in continuous-duty applications.
