Product Number: 04394
Variations

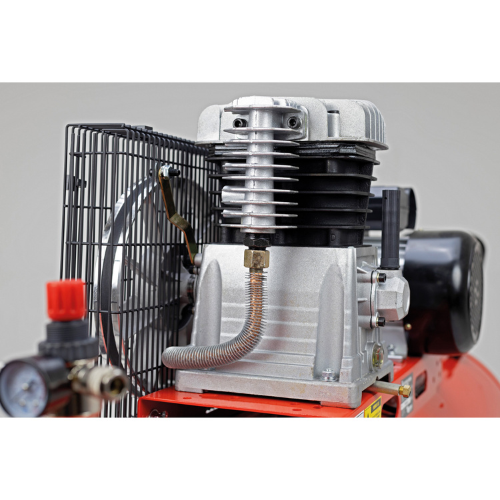

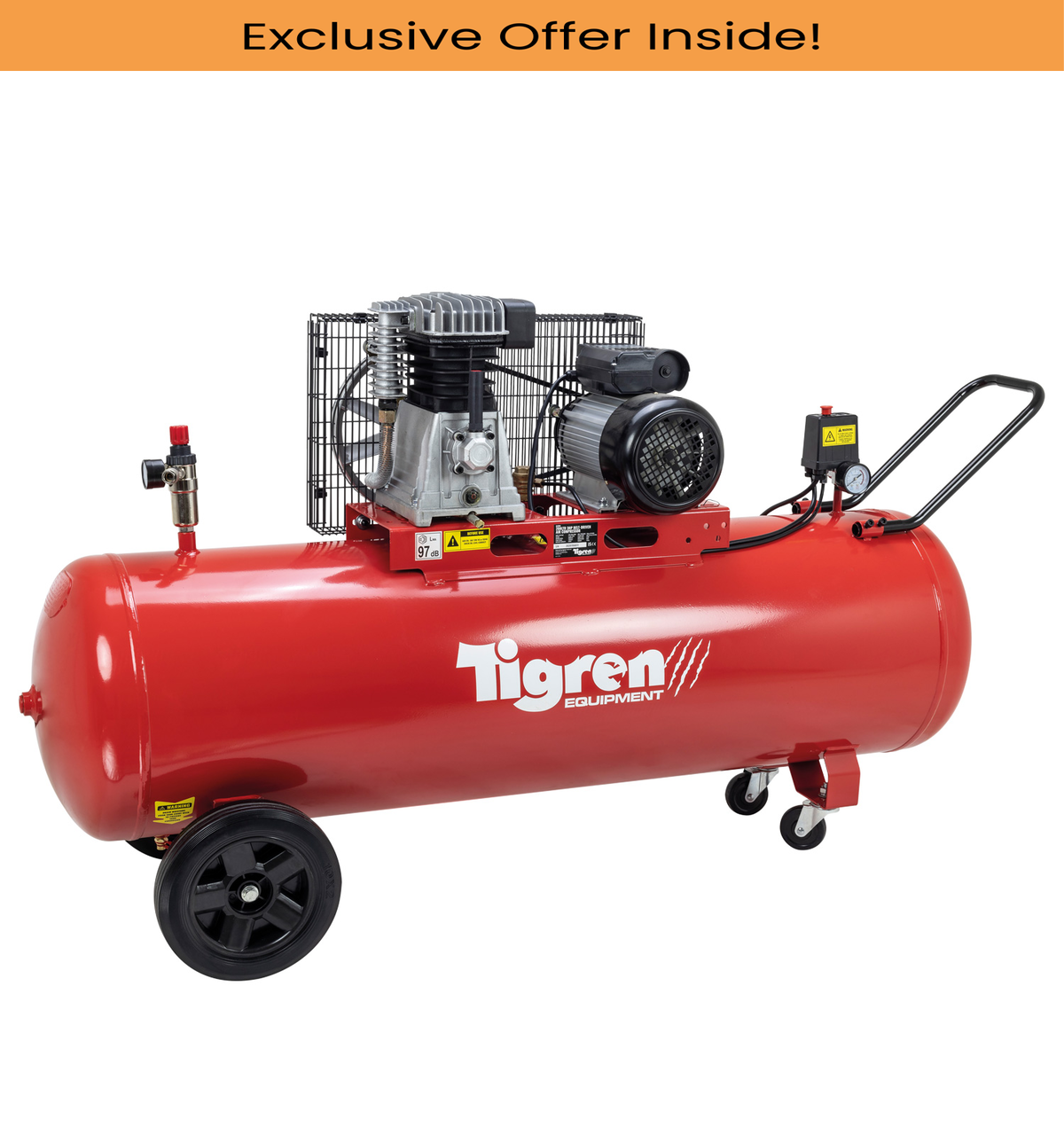

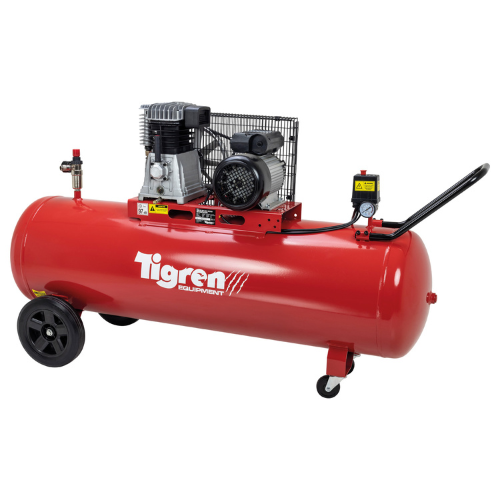

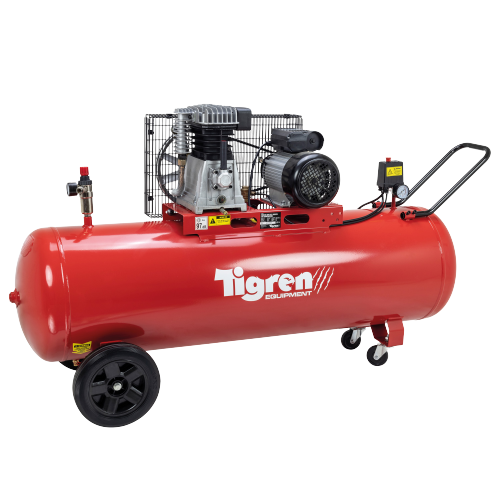

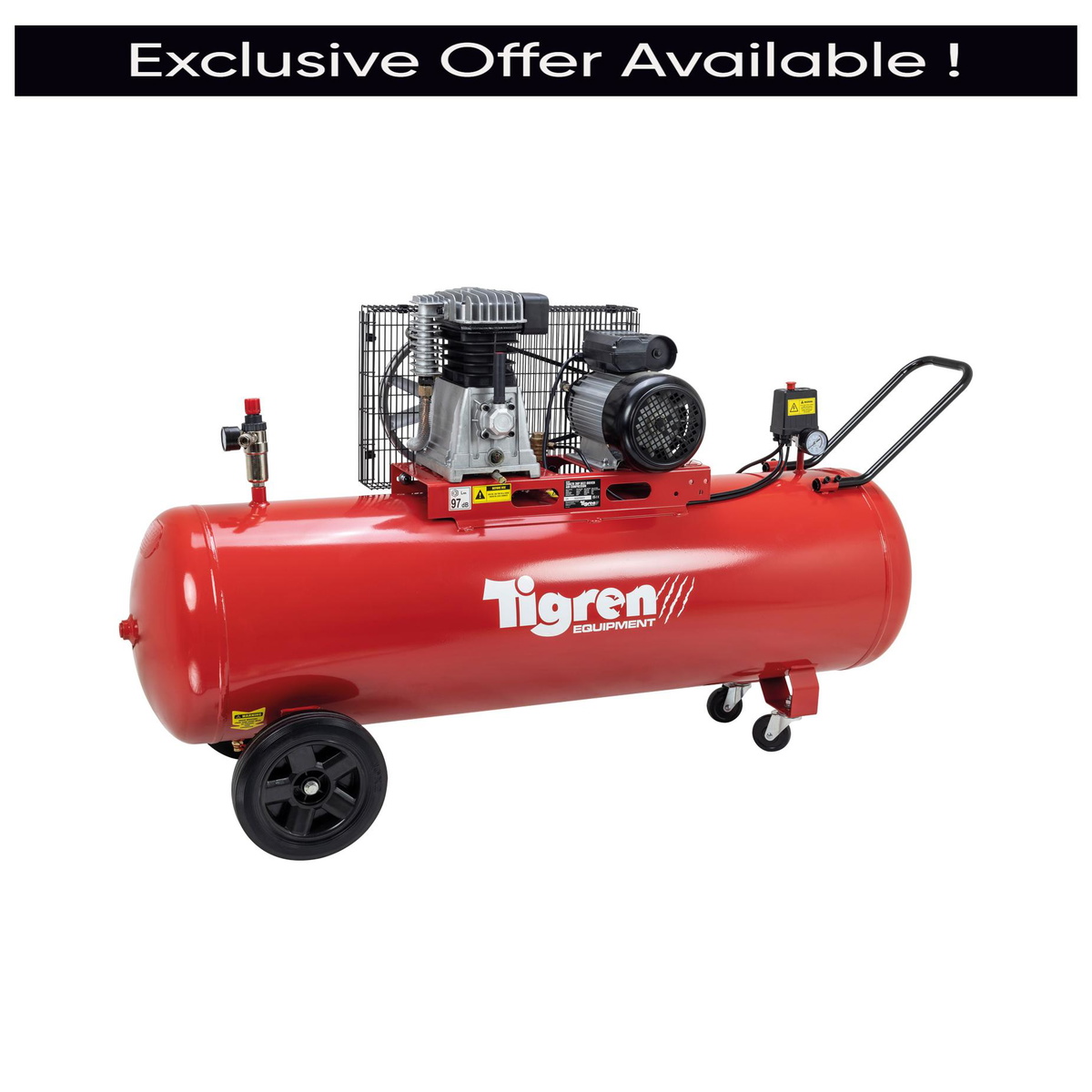

TIGREN 04396 100ltr 3hp Belt-Driven Compressor provides powerful yet compact compressed air for small to medium workshops. A heavy-duty 3hp (2.2kW) brushless induction motor on 230v (13A) drives a belt‑coupled twin‑cylinder splash oil‑lubricated pump, producing 14CFM (400ltr/min) piston displacement and 10CFM (285ltr/min) FAD at up to 150psi (10bar). The 100ltr receiver stores a useful volume of air while keeping overall dimensions manageable in tighter spaces. Wheel‑mounted for mobility, it can be moved easily between bays, benches or service areas. An adjustable air regulator helps match outlet pressure to different tools and applications. Built as a no‑nonsense solution, this TIGREN compressor is ideal for workshop air tools, paint spraying and tyre maintenance in automotive, agricultural and general trade settings, delivering a strong mix of performance, durability and value.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 04394 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 3hp (2.2kW) |
| Receiver Size | 200ltr |
| Max. Air Pressure | 150psi (10bar) |
| Pump Speed | 1100rpm |
| Piston Displacement | 14CFM (400ltr/min) |
| Free Air Delivery (FAD) | 10CFM (285ltr/min) |
| Isolation Class | Class F |
| Protection Type | IP54 |
| Motor Efficiency | 80% |
| Noise Level | 97dB |
| Net Weight | 85.00kg |
| Gross Weight | 99.00kg |
| Product Dimensions | 780(H) x 400(W) x 1500mm(D) |
| Packaged Dimensions | 890(H) x 450(W) x 1570mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC1153B Air Compressor 150L Belt Drive 3hp with Cast Cylinders
£676.45
£663.19
2% OFF
Free delivery in UK Mainland
|
NuAir NB2800B/150/3M TECH PRO - Portable Piston Compressor, 2.2 kW, 150 Litre, 10 Bar, 230V
£736.29
£721.85
2% OFF
Free delivery in UK Mainland
|
Draper 55313 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£626.24
£613.96
2% OFF
Free delivery in UK Mainland
|
Draper 55315 BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£646.49
£633.81
2% OFF
Free delivery in UK Mainland
|
Clarke XE36C200 (WIS) 30cfm 200 Litre 7.5HP Industrial Air Compressor (400V)
£1,414.69
£1,386.95
2% OFF
Free delivery in UK Mainland
|
Clarke SE25C200 (WIS) 23cfm 200 Litre 5.5HP Air Compressor (400V)
£1,477.99
£1,449.01
2% OFF
Free delivery in UK Mainland
|
Clarke Boxer II 14/200 (O/L) 14cfm 200 Litre 3HP Belt Driven Air Compressor (230V)
£650.02
£637.27
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06476 | SAC1153B | S-28HA504FPS135 | 55313 | 55315 | 06477 | 2092360 | 2081380 | 2245315 |
| Input Supply | 230 | 400 | 400 | 230 | |||||
| Motor Power | 2200 | 5625 | 4125 | 2200 | |||||
| Warranty | 24 | 12 | 12 | 12 | |||||
| Input current | 13A | 13A | |||||||
| Maximum Pressure (bar) | 0 | 10 | 10 | 10 | 0 | 10.3 | 10.3 | 10 | |
| Free AirDelivery (FAD) | 0 | 12.5 | 8.44 | 8.44 | 0 | 30 | 23 | 14 | |
| Tank Size | 0 | 150 | 200 | 200 | 0 | 200 | 200 | 200 | |
| Noise Level | 0 | 67 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Maximum Pressure (psi) | 0 | 145 | 145 | 145 | 0 | 150 | 149 | 145 | |
| Air displacement | 12.5 | 13.03 CFM | 13.03CFM | ||||||
| Show More | |||||||||
A. It is a belt-driven, 200 litre, 3hp compressor built for small and medium-sized workshops.
A. It offers 14CFM piston displacement and 10CFM free air delivery, supporting numerous workshop air tools.
A. The unit operates up to 150psi, approximately 10bar, suitable for many workshop applications.
A. It uses a 230v, 13A input with a heavy-duty brushless induction motor for long service life.
A. It is designed to maximise air volume so the 200 litre receiver fills faster for demanding tasks.
A. Description states it is ideal for automotive, agriculture and general workshop uses, including spraying and tyre maintenance.

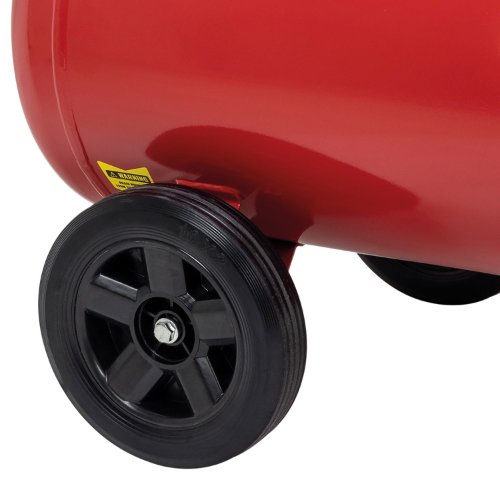

A. Wheels allow the compressor to move easily between bays, vehicles or workstations as needed.
A. Variant mapping lists 04391 and 04396 as related 3hp belt-driven TIGREN compressors with different receiver capacities.
A. Product dimensions are about 780mm high, 400mm wide and 1500mm deep, with net weight roughly 85kg.

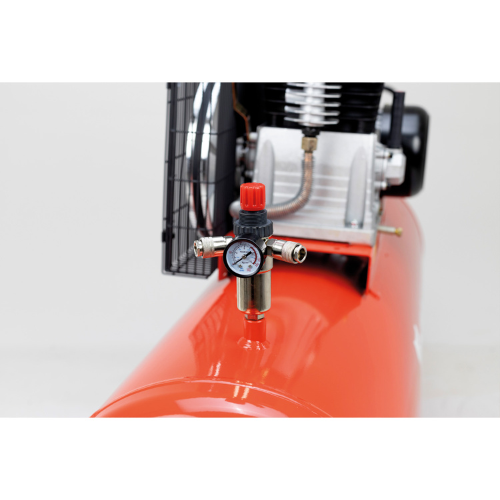

A. It lets the user match outlet pressure to tool requirements for efficient performance.
A. The larger receiver provides increased stored air for longer tool use between compressor cycles.
