Product Number: 04396
Variations

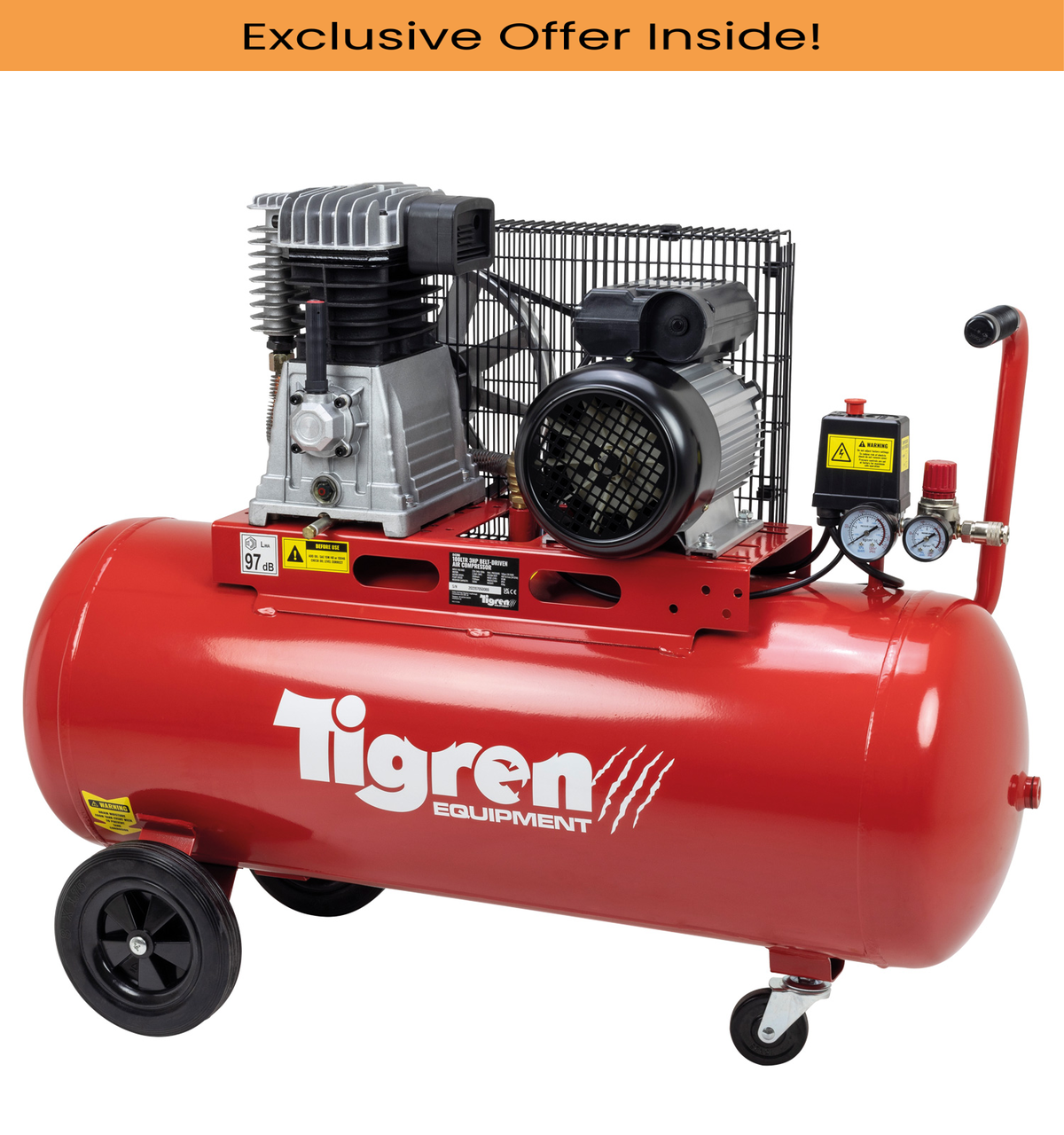

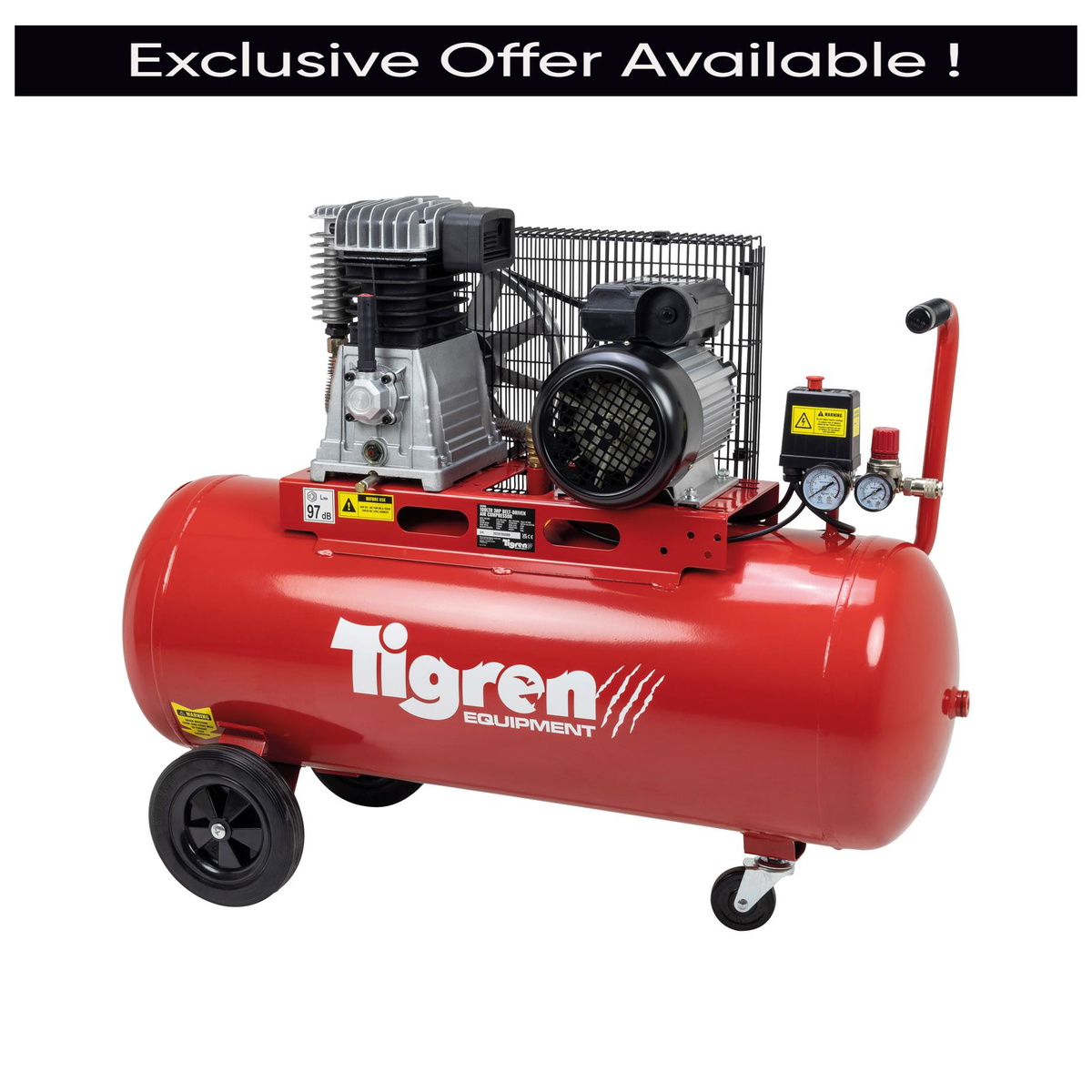

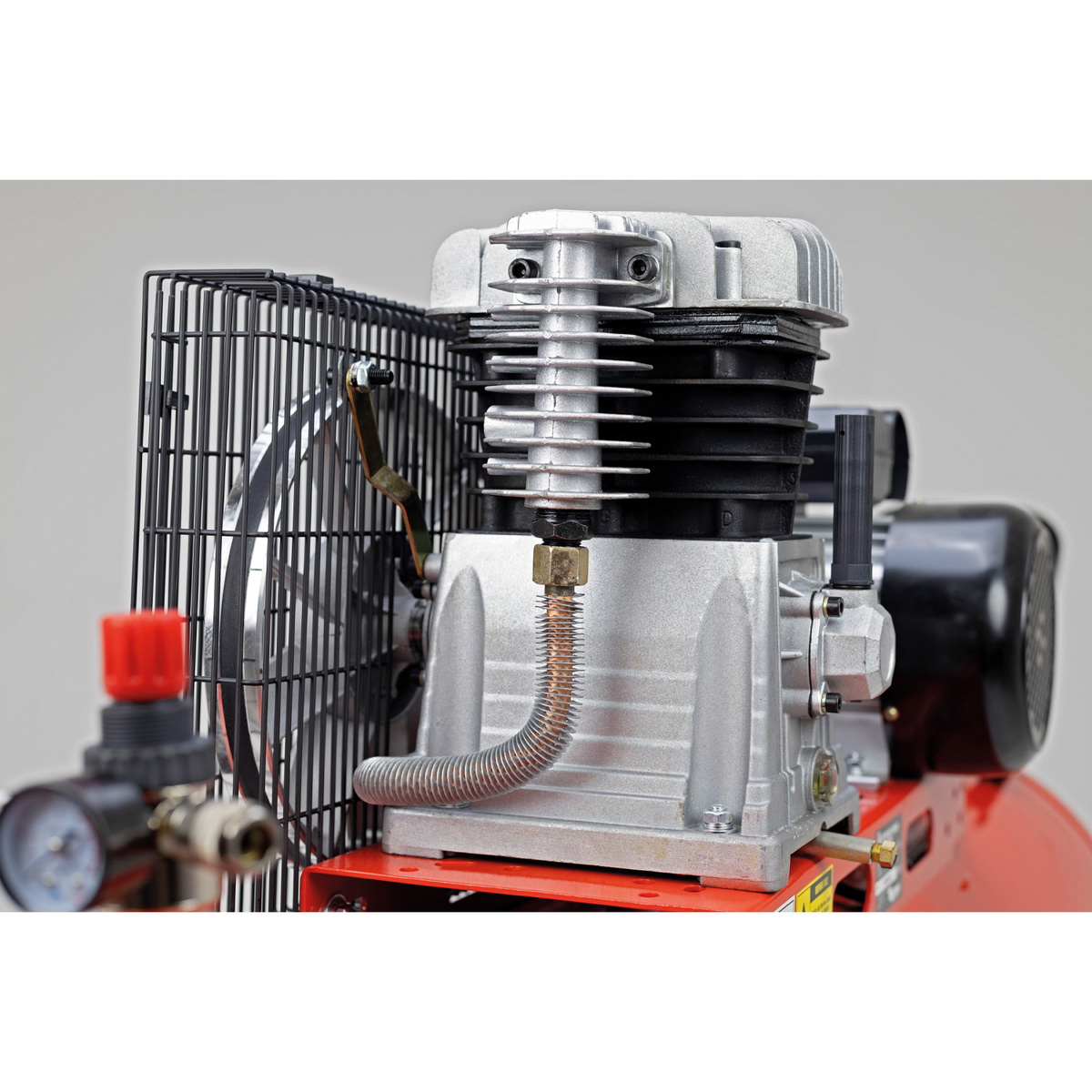

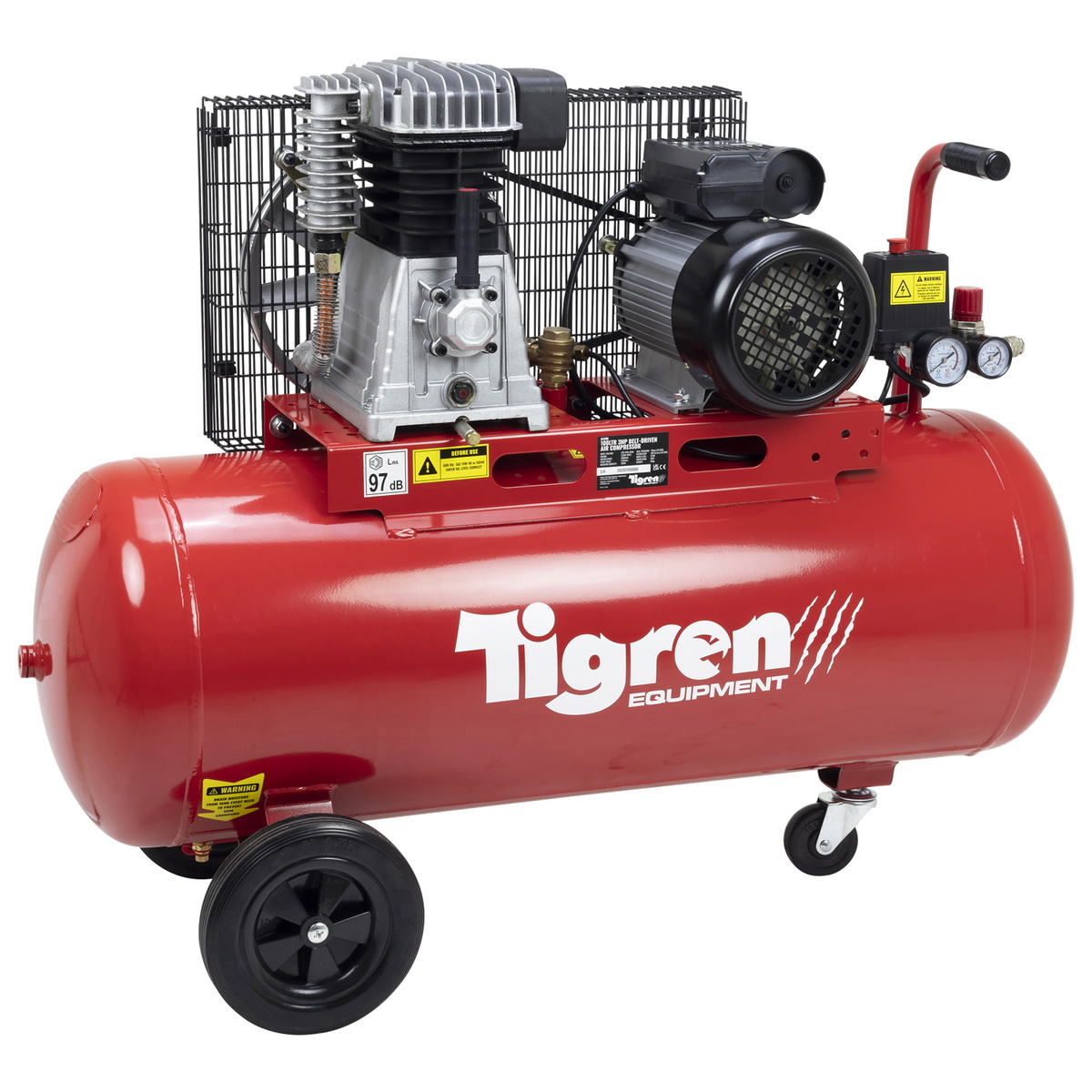

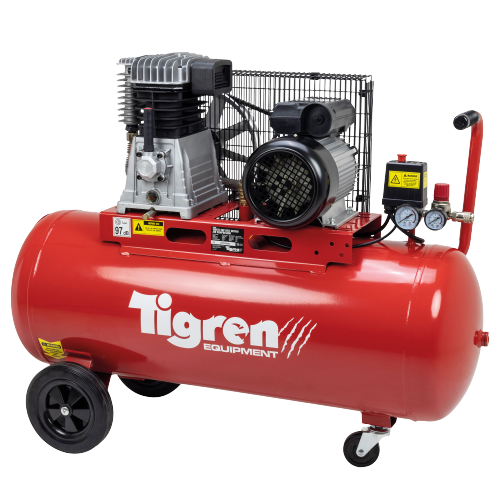

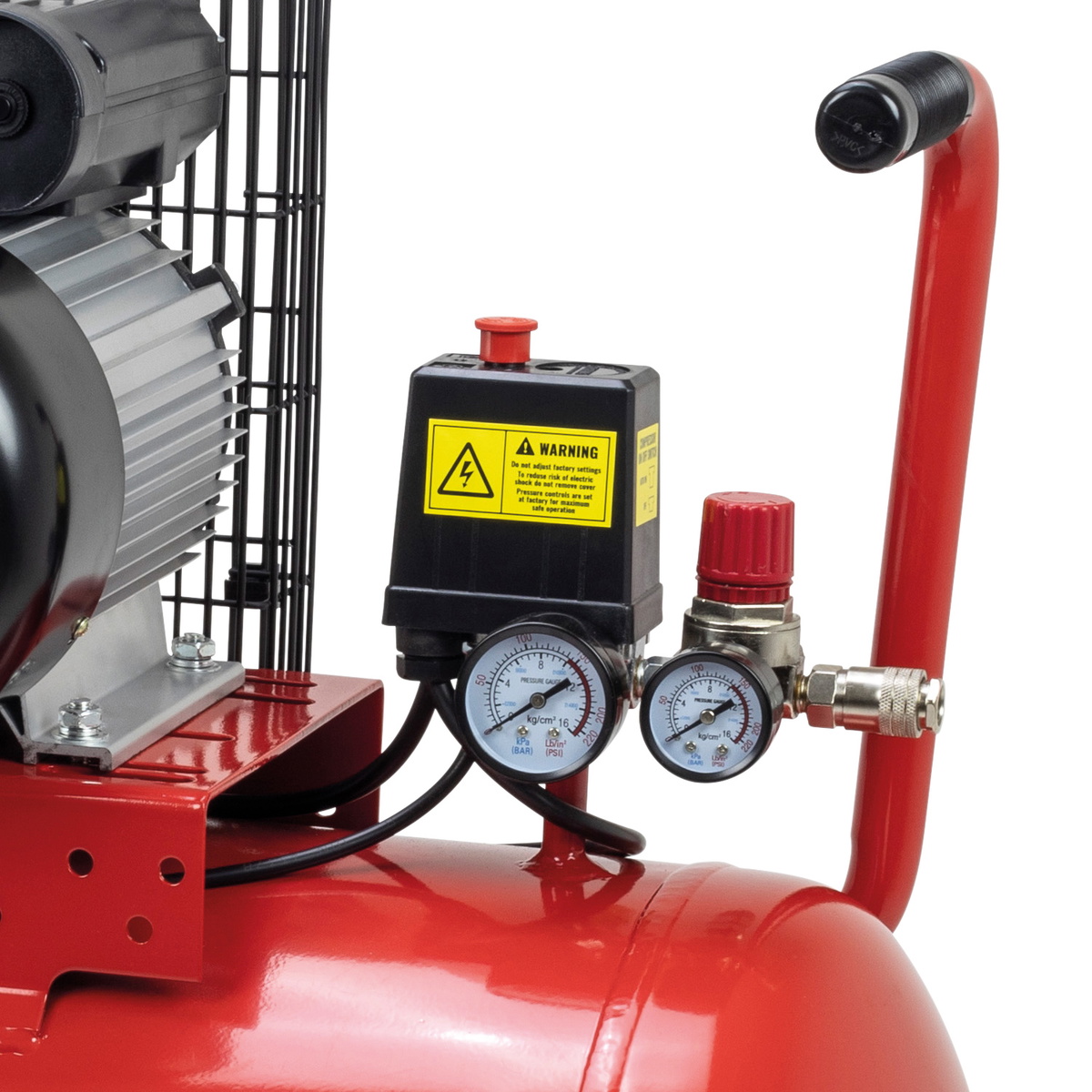

TIGREN 04394 200ltr 3hp Belt-Driven Compressor offers increased air storage for busy workshops needing more capacity than 100L or 150L units. A 3hp (2.2kW) brushless induction motor on 230v (13A) powers a belt‑driven twin‑cylinder splash oil‑lubricated pump, delivering 14CFM (400ltr/min) piston displacement and 10CFM (285ltr/min) FAD up to 150psi (10bar). The 200ltr receiver provides ample stored air for extended tool use and less frequent cycling, while the wheel‑mounted chassis supports easy positioning around the workspace. Designed for demanding automotive, agricultural and general trade environments, this TIGREN compressor is well suited to workshop air tools, paint spraying and tyre maintenance. Featuring an adjustable air regulator, robust construction and an 80% efficient motor, it delivers strong, reliable performance without unnecessary complexity.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 04396 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 3hp (2.2kW) |
| Receiver Size | 100ltr |
| Max. Air Pressure | 150psi (10bar) |
| Pump Speed | 1100rpm |
| Piston Displacement | 14CFM (400ltr/min) |
| Free Air Delivery (FAD) | 10CFM (285ltr/min) |
| Isolation Class | Class F |
| Protection Type | IP54 |
| Motor Efficiency | 80% |
| Noise Level | 97dB |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC1503B Air Compressor 50L Belt Drive 3hp with Cast Cylinders & Wheels
£474.67
£465.36
2% OFF
Free delivery in UK Mainland
|
NuAir NB2800B/50/3M TECH PRO - Portable Piston Compressor, 2.2 kW, 50 Litre, 10 Bar, 12.5 CFM
£559.50
£548.53
2% OFF
Free delivery in UK Mainland
|
Draper 31254 BELT-DRIVEN AIR COMPRESSOR, 100L, 2.2KW
£453.89
£444.99
2% OFF
Free delivery in UK Mainland
|
Clarke XEV16/100 (O/L) 14cfm 100 Litre 3HP Industrial Air Compressor (230V)
£785.09
£769.70
2% OFF
Free delivery in UK Mainland
|
Draper 55305 WHEELED BELT-DRIVEN AIR COMPRESSOR, 150L, 2.2KW
£593.06
£581.43
2% OFF
Free delivery in UK Mainland
|
Draper 55304 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 150L, 2.2KW
£592.03
£580.42
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC1503B | S-28DA504FPS139 | 06458 | 31254 | 2092270 | 55305 | 55304 | 06476 |
| Input Supply | 230 | 230 | ||||||
| Motor Power | 2200 | 2200W | 2200 | 2200W | 2200W | |||
| Warranty | 12 | |||||||
| Input current | 13A | 13A | ||||||
| Maximum Pressure (bar) | 10 | 0 | 8 | 10 | 10 | 10 | 0 | |
| Free AirDelivery (FAD) | 0 | 11.7 | 14 | 8.44 | 8.44 | 0 | ||
| Tank Size | 50 | 0 | 100 | 100 | 150 | 150 | 0 | |
| Noise Level | 67 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Maximum Pressure (psi) | 145 | 0 | 116 | 145 | 145 | 145 | 0 | |
| Air displacement | 12.5 | 13.03 CFM | 13.03 CFM | |||||
| Show More | ||||||||
A. It is a belt-driven, 100 litre, 3hp compressor aimed at small and medium-sized workshops.
A. It delivers 14CFM piston displacement and 10CFM free air delivery, adequate for many workshop tasks.
A. The unit operates up to 150psi, about 10bar, covering typical workshop requirements.
A. It runs from a 230v, 13A input driving a heavy-duty brushless induction motor.
A. It maximises air volume while providing durable operation for everyday workshop use.
A. It is recommended for workshop air tools, paint spraying and tyre maintenance in busy environments.

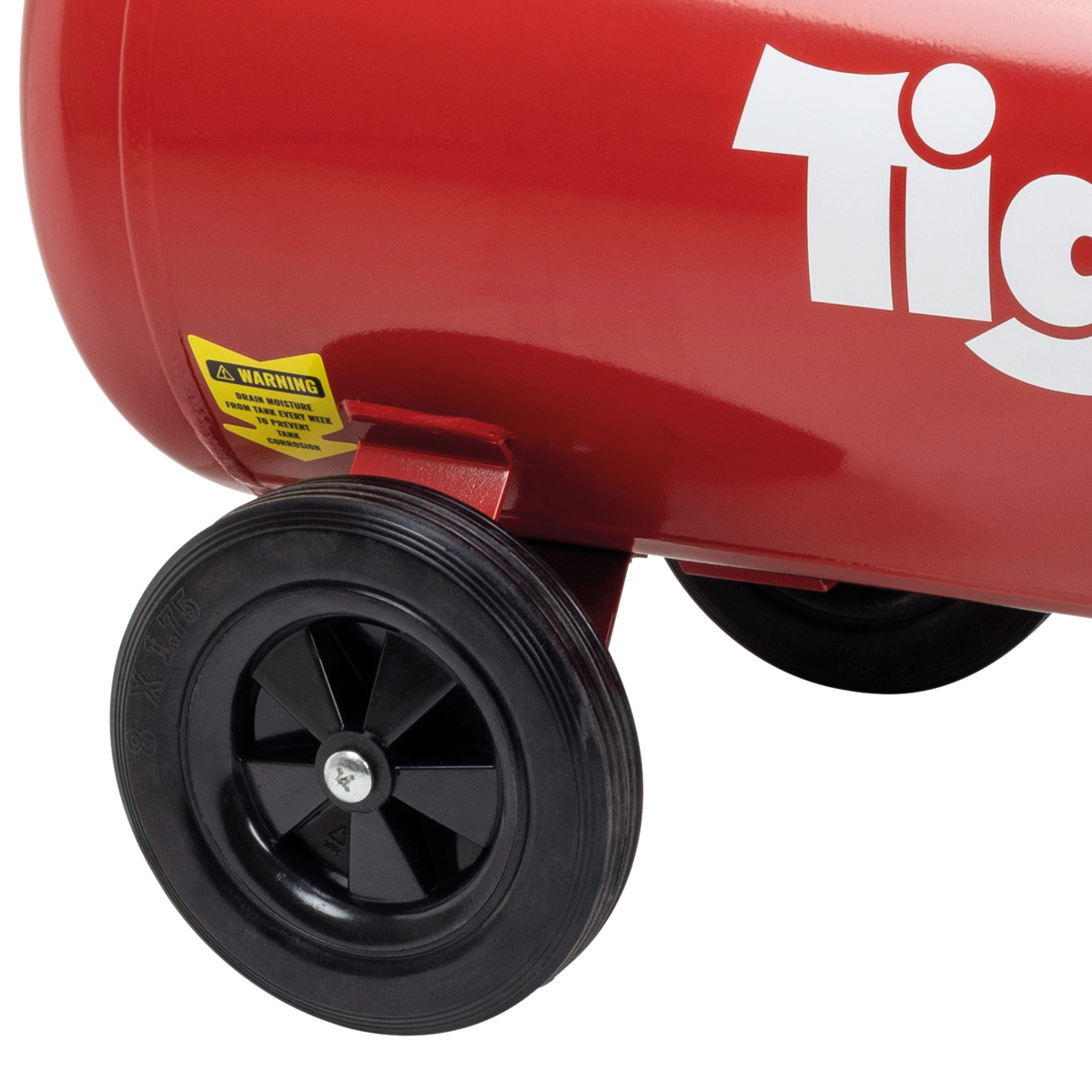

A. Wheels make it easy to move the compressor around the workspace to where air is required.
A. Variant mapping lists 04391 and 04394 as related 3hp compressors with larger receivers.
A. It uses Class F insulation, IP54 protection and motor efficiency around 80 percent.
A. The noise level is approximately 97dB, so suitable hearing protection is advisable.
A. It offers useful air capacity with a smaller footprint and lower weight, improving manoeuvrability.
