Product Number: 06477
Variations
Click on the button below to find the right air compressor

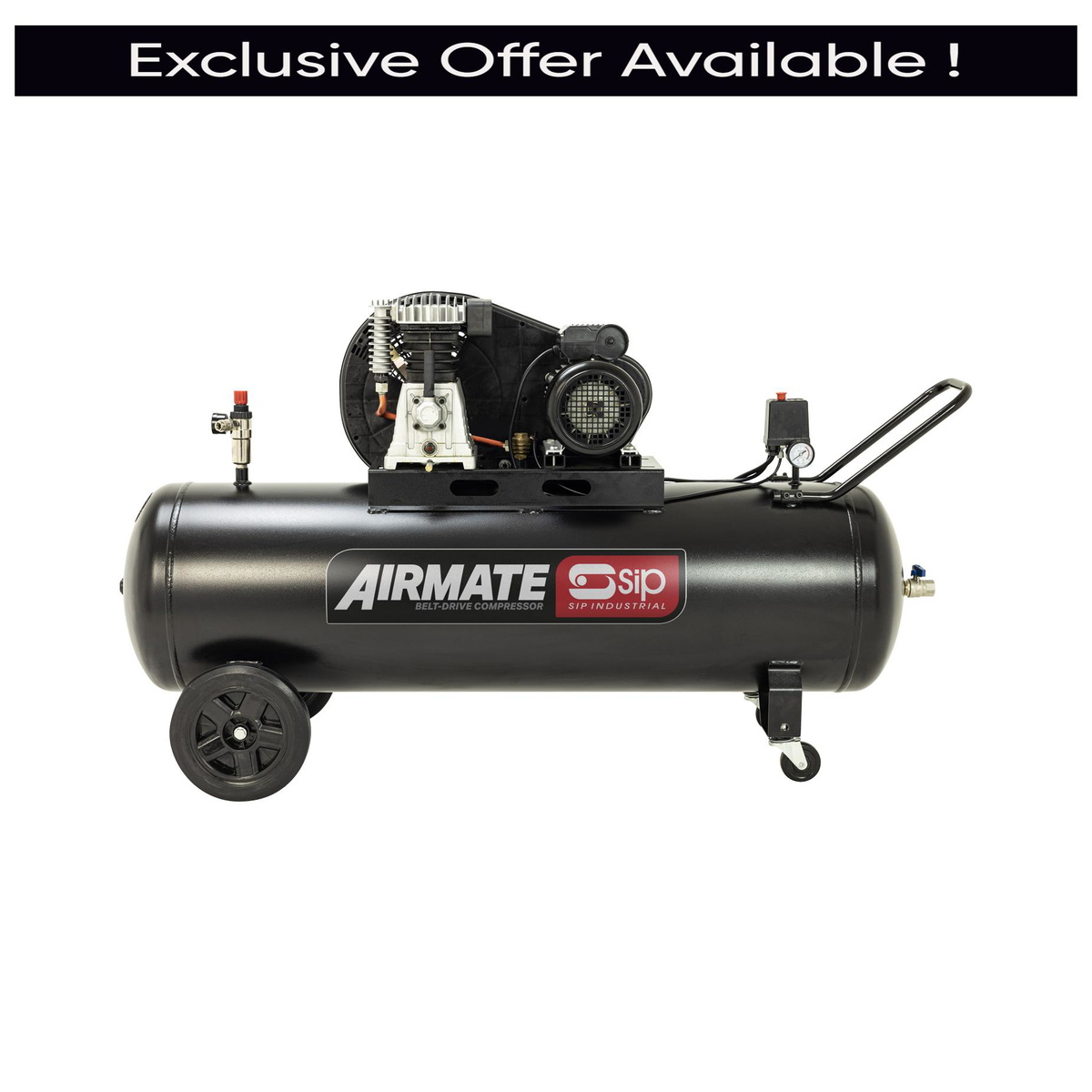

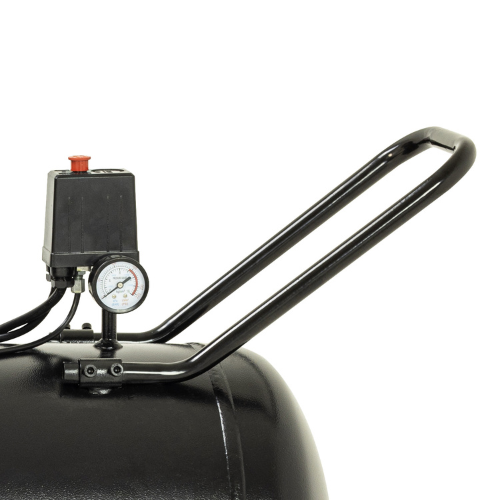

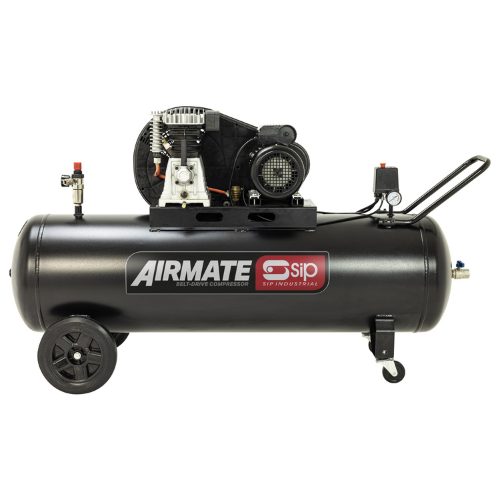

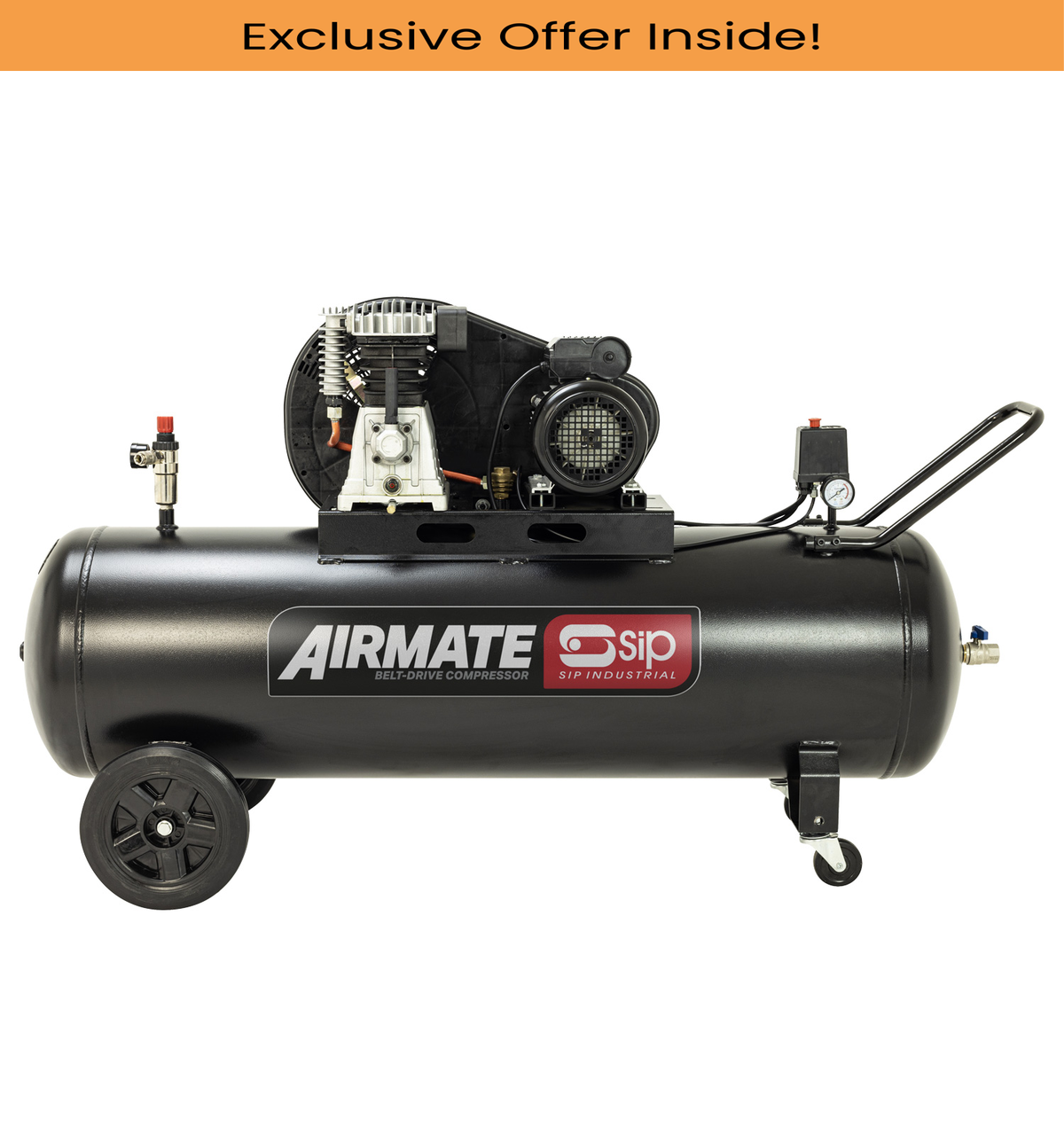

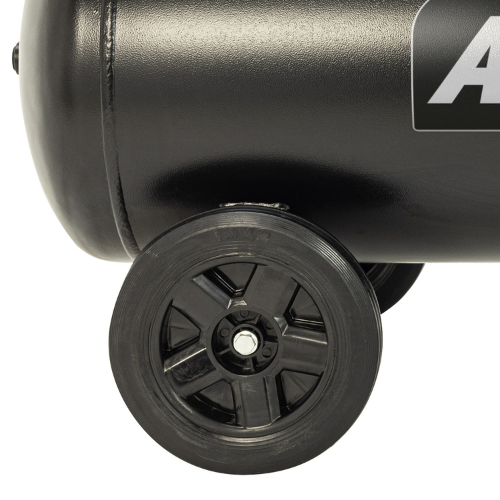

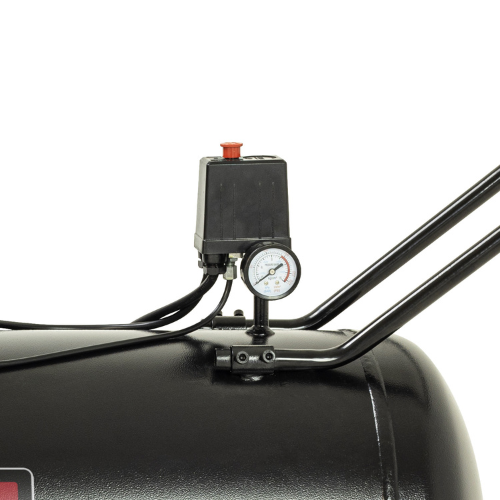

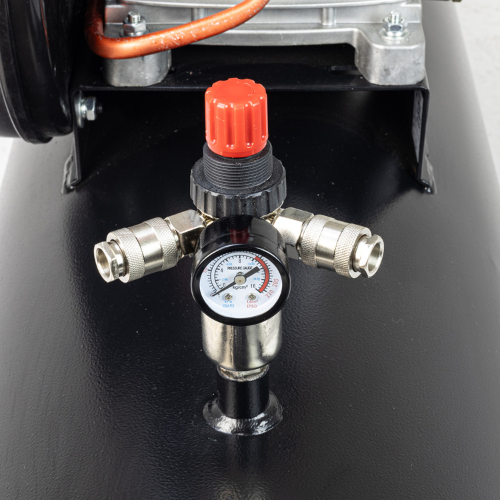

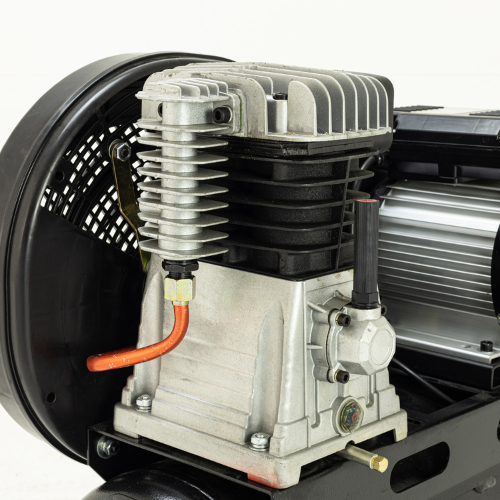

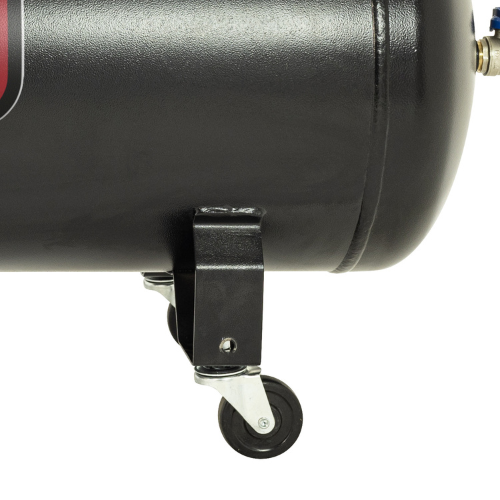

Air Compressor FinderSIP 06477 BD 3hp 200ltr Belt Drive Compressor extends the BD range to a larger 200ltr receiver for higher air storage in busy work areas. A 3hp (2.2kW) motor on 230V 13A drives a belt pump delivering 14CFM (400L/min) piston displacement and 10CFM (285L/min) free air delivery at up to 145psi (10bar). The 200ltr tank maintains a consistent air supply for pneumatic tools and ring main systems in medium and large automotive, agricultural and engineering workshops. The larger pump fills the tank quickly, helping to keep up with continuous or multi‑tool use. Fixed and adjustable quick release air connectors increase connection flexibility, and built‑in tank and working pressure gauges with regulator allow accurate pressure control. A wheel‑mounted design with U‑handle and long 3m mains cable provides good mobility across the work area. With 97dB(A) trade‑grade construction, this SIP BD compressor is ideal as a core belt‑drive unit where higher storage and reliable 10bar air are required.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 06477 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 3hp (2.2kW) |
| Receiver Size | 200ltr |
| Piston Displacement | 14CFM (400ltr/min) |
| Free Air Delivery (FAD) | 10CFM (285ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| Noise Level | 97dB(A) |
| Net Weight | 110.00kg |
| Gross Weight | 115.00kg |
| Product Dimensions | 820(H) x 1580(W) x 410mm(D) |
| Packaged Dimensions | 960(H) x 1570(W) x 470mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£778.45
£763.19
2% OFF
Free delivery in Channel Island
|
SIP 06323 VN3/150-SB Vertical Belt Drive Compressor,Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£934.15
£915.83
2% OFF
Free delivery in Channel Island
|
Draper 55315 BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£646.49
£633.81
2% OFF
Free delivery in UK Mainland
|
Sealey SAC1153B Air Compressor 150L Belt Drive 3hp with Cast Cylinders
£674.88
£661.65
2% OFF
Free delivery in UK Mainland
|
NuAir NB2800B/150/3M TECH PRO - Portable Piston Compressor, 2.2 kW, 150 Litre, 10 Bar, 230V
£736.29
£721.85
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05302 | 06323 | 55315 | 04394 | SAC1153B | S-28HA504FPS135 |
| Input Supply | 230 | 230V | 230 | |||
| Motor Power | 2.2 | 2200W | 2200 | |||
| Warranty | 24 | 12 | 24 | |||
| Input current | 13A | 13A | ||||
| Maximum Pressure (bar) | 0 | 10 | 10 | 10 | 10 | |
| Free AirDelivery (FAD) | 0 | 8.5 | 8.44 | 10 | 12.5 | |
| Tank Size | 0 | 0 | 200 | 200 | 150 | |
| Noise Level | 0 | 96 | 0 | 97 | 67 | |
| Maximum Pressure (psi) | 0 | 145 | 145 | 150 | 145 | |
| Air displacement | 13.03CFM | 12.5 | ||||
| Piston Displacement (CFM) | 13 | 14CFM | ||||
| Piston Displacement (litres/min) | 368 | 400 | ||||
| Show More | ||||||
A. It is a 3hp, 200 litre belt-drive compressor for general work area use.
A. It delivers 14CFM piston displacement and 10CFM free air delivery, suitable for many pneumatic tools and ring main systems.
A. The unit operates up to 145psi, roughly 10bar, suiting numerous workshop applications.
A. It uses a 230V single-phase 13A supply, typical in many automotive and engineering settings.
A. The larger tank maintains consistent air supply for medium and large-sized workspaces and ring main installations.
A. Variants include 06456, 06458 and 06476, representing 50, 100 and 150 litre capacities with similar output.
A. It is ideal for automotive, agricultural and engineering settings needing substantial air storage.
A. It allows movement of the compressor to different areas as job requirements change.
A. Fixed and adjustable quick-release connectors plus tank and working pressure gauges with regulator are provided.
A. With a noise level of about 97dB(A), suitable hearing protection is advisable.
A. It offers longer tool run time and better support for multiple air outlets.
