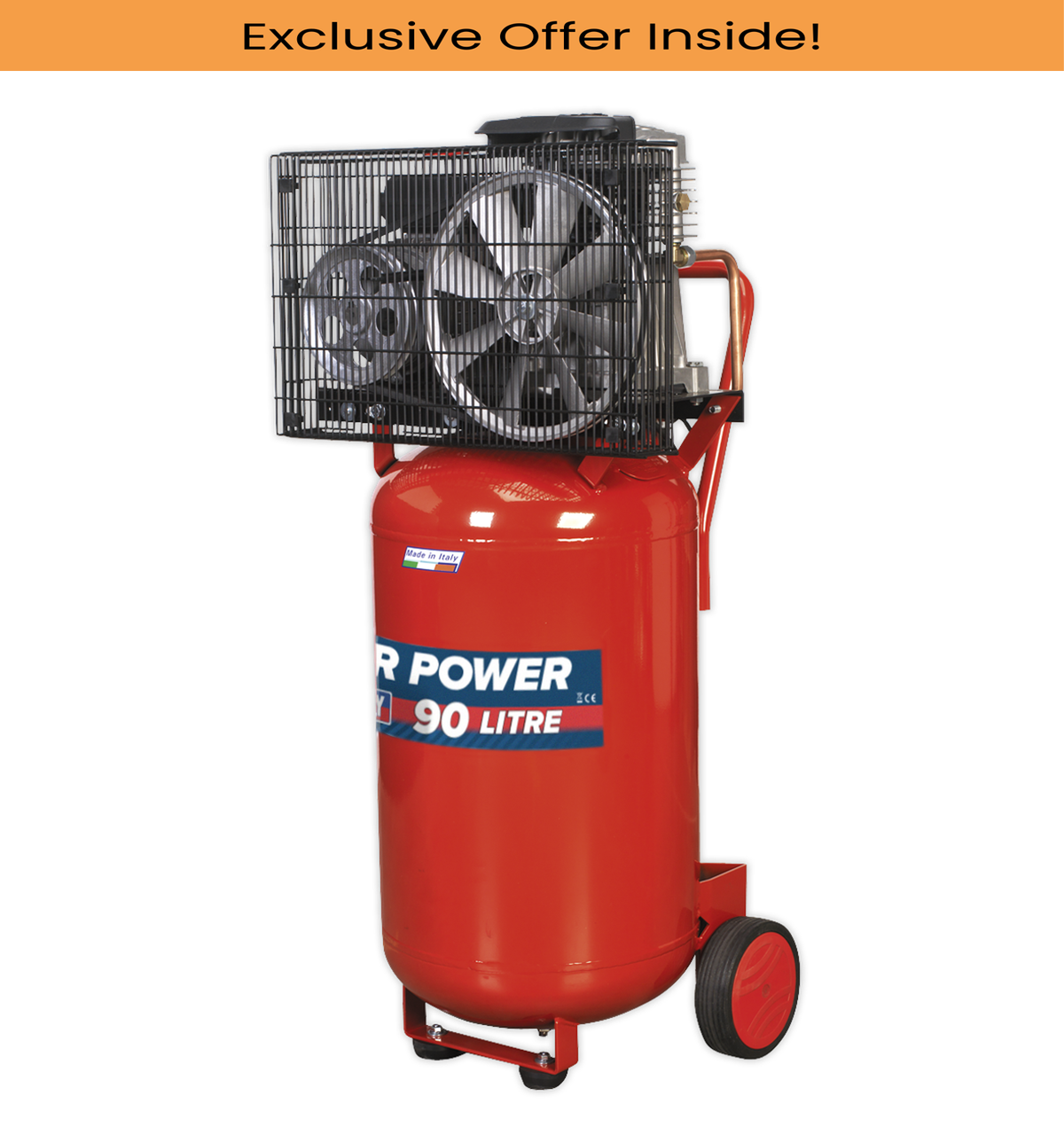

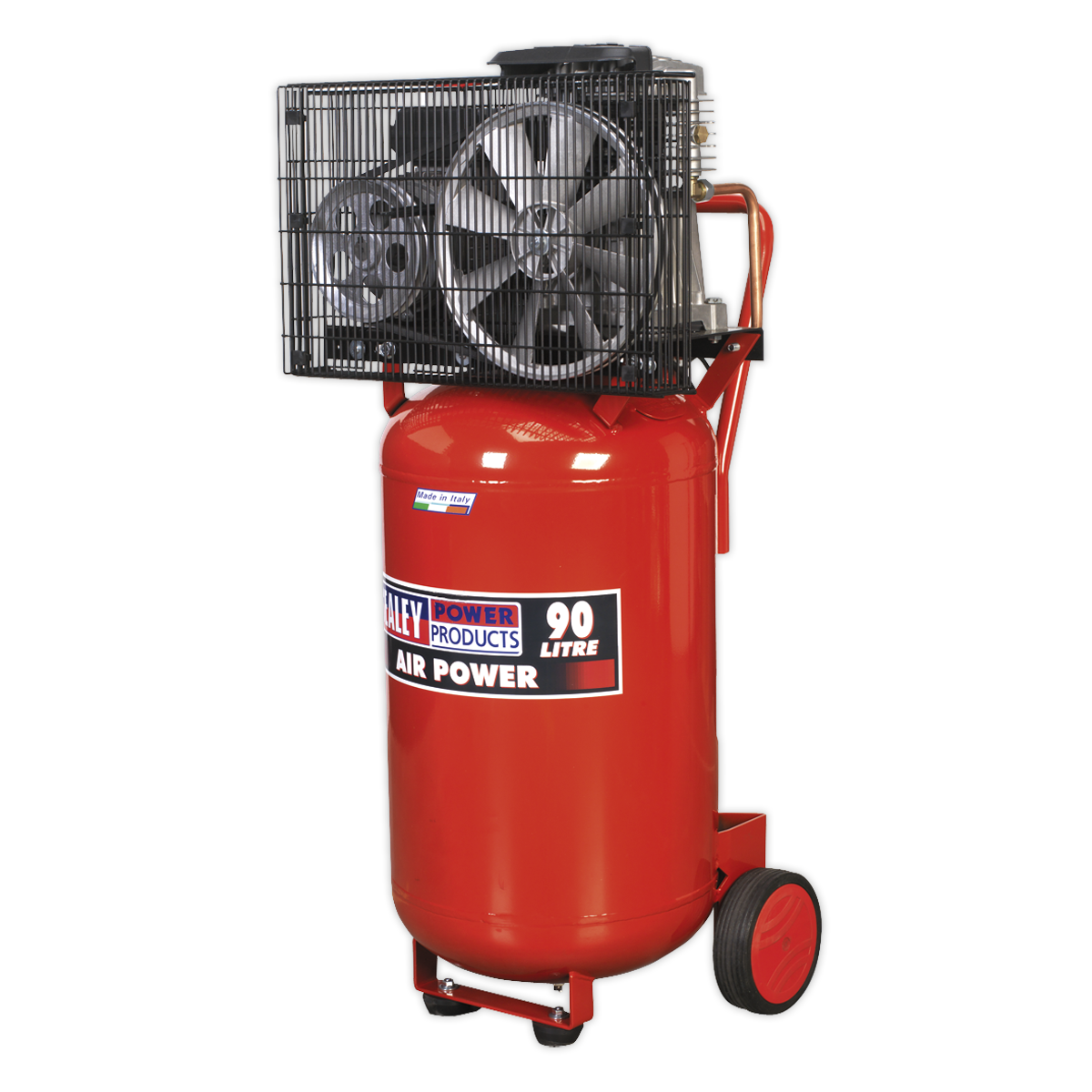

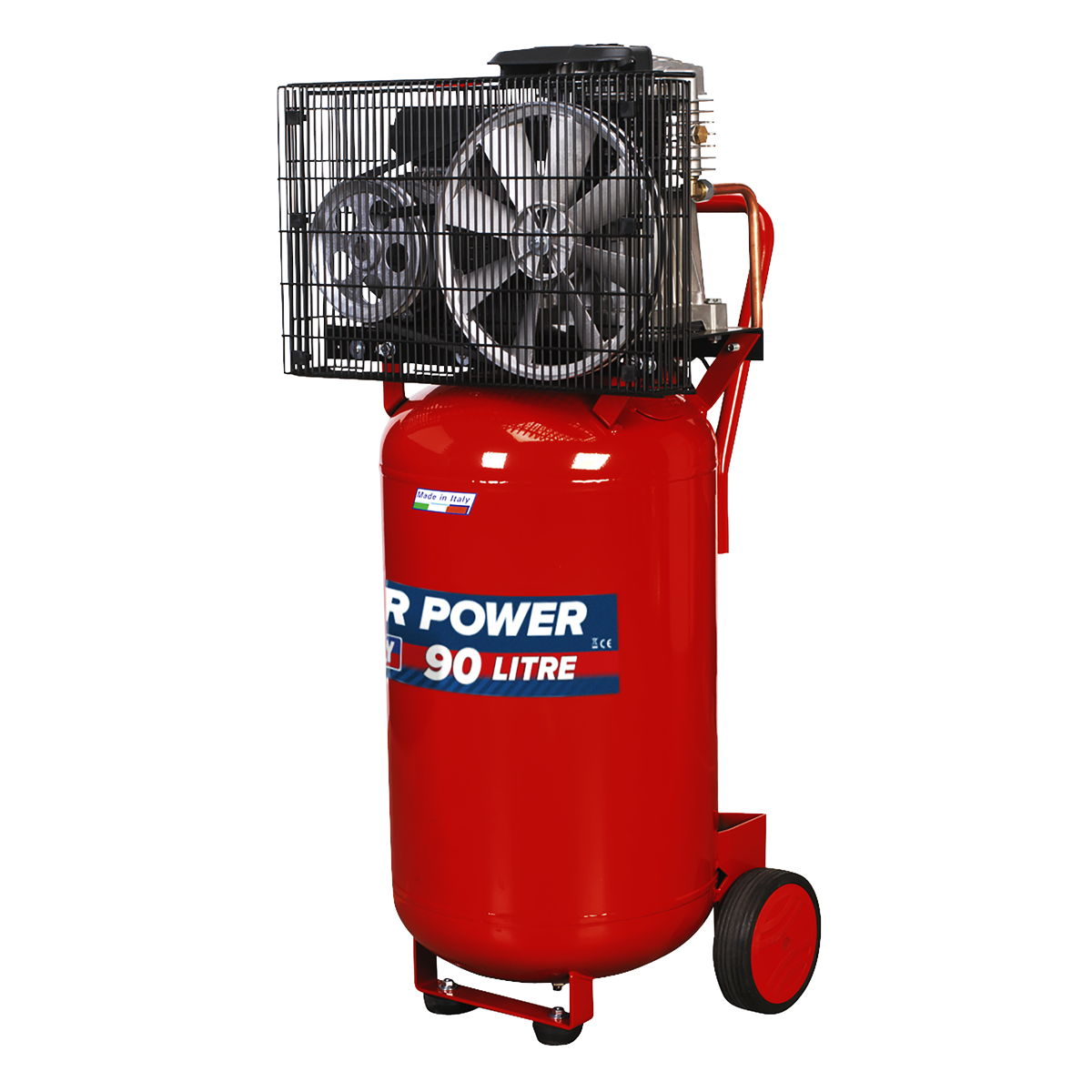

Sealey SAC1903B Compressor 90L Vertical Belt Drive 3hp is a space-saving single-phase unit designed for professional workshops where floor area is limited. Powered by a genuine 3hp motor on 230V 13A, with twin capacitors and a centrifugal switch for reliable starting, it delivers 13.4cfm (380L/min) air displacement and 9.7cfm (275L/min) free air delivery at up to 145psi (10bar). The vertical 90L receiver significantly reduces footprint without compromising performance, making it ideal for installation against walls or in tight plant areas. The pump features heavy‑duty full cast cylinders and alloy heads for improved heat dissipation and long life, while heavy‑duty drive guards protect the belt and flywheel and direct cooling air across the pump. With a quick release outlet and professional build quality, SAC1903B is well suited to garages and workshops needing robust 3hp air performance in a compact vertical format.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC1903B |
|---|---|
| Air Displacement cfm(L/min) | 13.4(380) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 9.7(275) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 3hp |
| Nett Weight | 65kg |
| Oil Capacity | 0.45L |
| Outlet | Quick Release Coupling |
| Phase | 1ph |
| Receiver Capacity | 90L |
| Size (W x D x H) | 525 x 495 x 1130mm |
| Speed | 1636rpm |
| Supply | 230V/13A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC15030B Air Compressor 150L Belt Drive 3hp
£630.98
£618.61
2% OFF
Free delivery in UK Mainland
|
Draper 31254 BELT-DRIVEN AIR COMPRESSOR, 100L, 2.2KW
£453.89
£444.99
2% OFF
Free delivery in UK Mainland
|
NuAir B3800/5.5S/10+10 Honda Petrol Piston Compressor, 4kW, 2x10 Litre, 10 Bar
£1,407.29
£1,379.70
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC15030B | 06458 | 04396 | 31254 | S-36BW7P1NUA |
| Input Supply | 230V | ||||
| Motor Power | 2200W | 2200W | 5500 | ||
| Warranty | 12 | ||||
| Input current | 13A | ||||
| Maximum Pressure (bar) | 0 | 10 | 8 | 10 | |
| Free AirDelivery (FAD) | 0 | 10 | 11.7 | 0 | |
| Tank Size | 0 | 100 | 100 | 20 | |
| Noise Level | 0 | 97 | 0 | 0 | |
| Maximum Pressure (psi) | 0 | 150 | 116 | 145 | |
| Air displacement | 13.8 | ||||
| Piston Displacement (CFM) | 14 CFM | ||||
| Piston Displacement (litres/min) | 400 | ||||
| Show More | |||||
A. It is a 90 litre, 3hp vertical belt-drive compressor for professional workshops.
A. It offers 13.4cfm displacement and 10.9cfm maximum free air delivery, suitable for many workshop applications.
A. The unit operates up to 145psi, around 10bar, suiting typical air tool requirements.
A. The 90 litre vertical tank reduces footprint, saving floor space in crowded workshops.

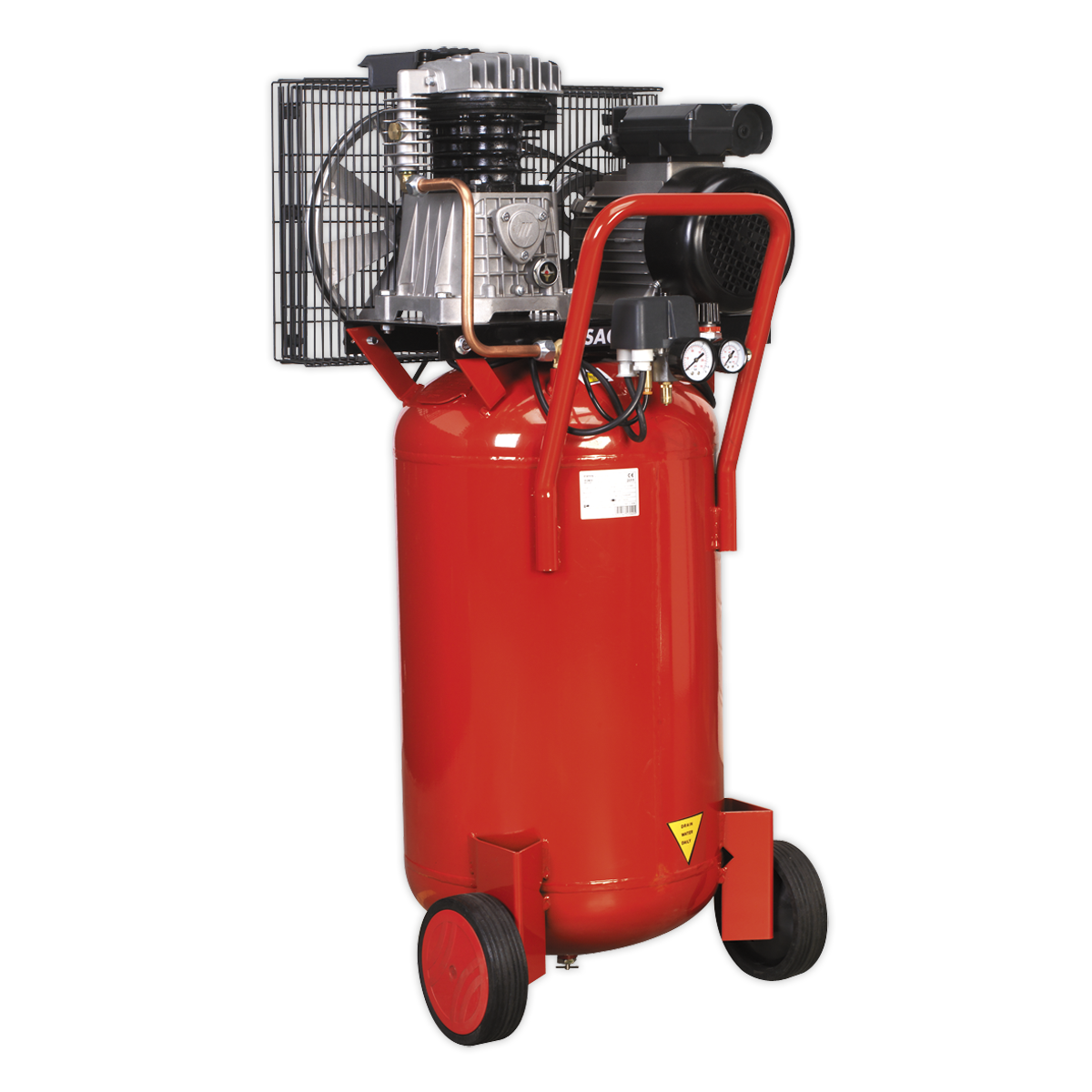

A. Full cast cylinders with alloy heads improve heat dissipation and longevity.
A. They shield belt and flywheel and direct cooling air over the pump.
A. Variants include SAC1103B, SAC1153B, SAC1203B, SAC1276B, SAC15030B, SAC1503B, SAC20030B, SAC2103B, SAC2153B, SAC2203B, SAC2276B, SAC3103B, SAC3153B and SAC3203B.
A. It runs on 230V single-phase with a 13A minimum rated supply.
A. It provides useful air storage while occupying less floor space than horizontal models.
A. It lets the pump run at a speed tuned to motor power, improving efficiency.
A. It handles many general workshop duties, from impact tools to blow guns, within its capacity.
